52PT6G3AB Siemens Command/52 Illuminated Pushbutton, 30 mm, Green, 1NO-1NC
- Low stock - 3 items left
- Backordered, shipping soon

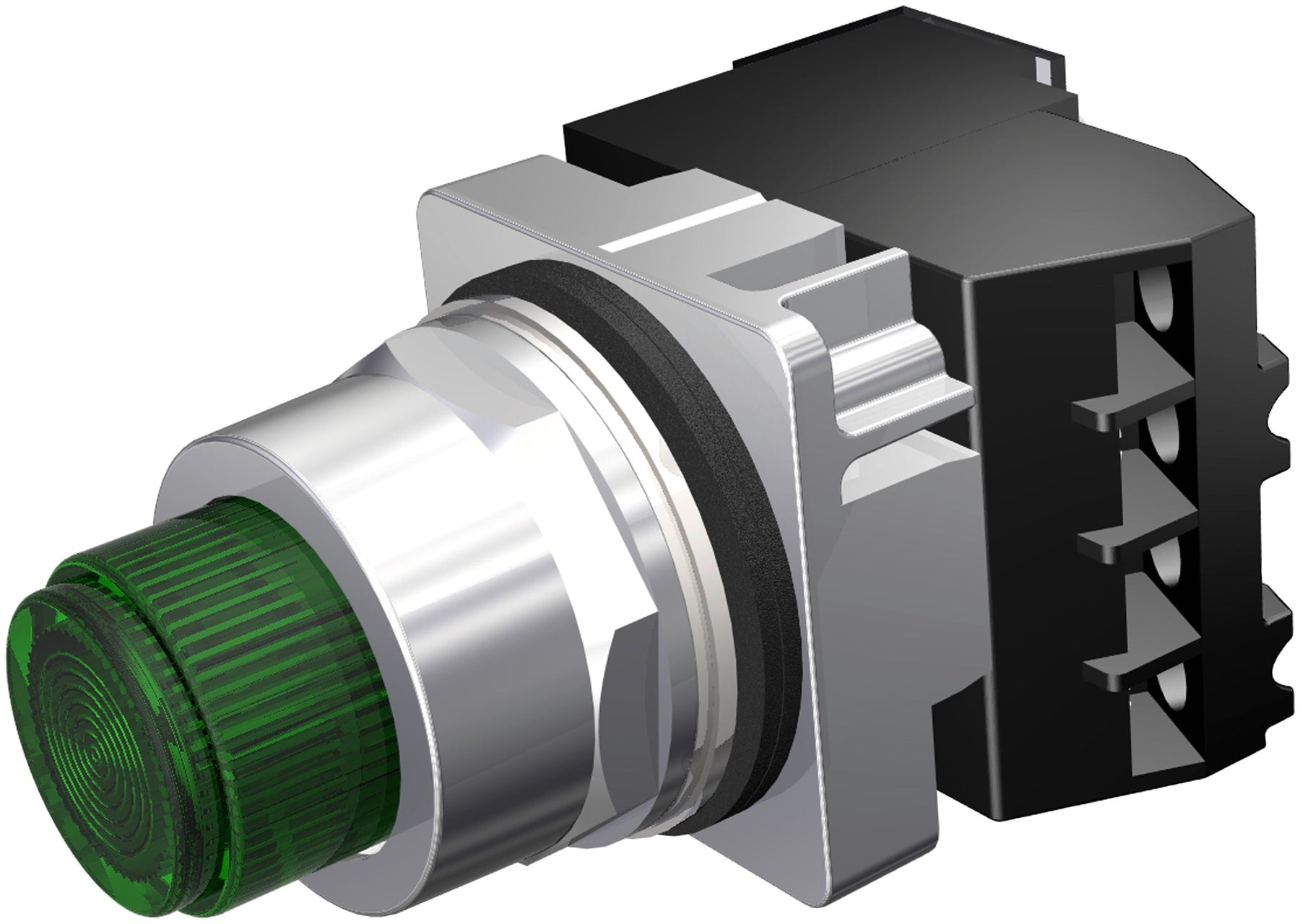

52PT6G3AB Siemens Command/52 Illuminated Pushbutton, 30 mm, Green, 1NO-1NC
Looking for a green pushbutton with momentary operation? Siemens 52PT6G3AB is a 30 mm illuminated pushbutton with one normally open contact and one normally closed contact, abbreviated 1NO-1NC. Its extended button has a plastic lens, and its green LED illumination uses a 120 V AC transformer-type supply.
Common Applications
- Illuminated pushbutton control with momentary action
Key Features
- Button: Extended, plastic lens
- Illumination: Green LED, lamp included
- Body: Metal, chrome finish
- Contact Rating: A600/P600
Specifications
- Manufacturer: Siemens
- Full Part Number: 52PT6G3AB
- Product Type: Illuminated Pushbutton
- Series or Family: Command/52
- Nominal Size: 30 mm
- Operating Type: 2-position momentary
- Contact Configuration: 1NO-1NC
- Illumination Supply: 120 V AC, transformer type
- Illumination: Green LED, lamp included
- Button: Extended, plastic lens
- Body: Metal, chrome finish
- Contact Rating: A600/P600
- Certifications: UL Listed, CSA Certified
- NEMA Type: 1, 3, 3R, 4, 4X, 12, 13
- IP Protection: IP66; terminals IP20
- Thermal Current: 10 A
- Terminals: Screw-type
- Lamp Transformer Output: 6 V
Product Identification
FAQ
What kind of part is 52PT6G3AB?
Siemens 52PT6G3AB belongs to the Command/52 family of illuminated pushbuttons and has a nominal size of 30 mm.
What does 1NO-1NC mean for this pushbutton?
For 52PT6G3AB, 1NO-1NC means one normally open contact and one normally closed contact; the button has 2-position momentary operation.
Does the 120 V AC value refer to the lighting?
The 120 V AC value for 52PT6G3AB refers to its transformer-type illumination supply, with 6 V at the lamp transformer output.
What color is the button, and is a lamp included?
The 52PT6G3AB includes a green LED lamp and uses an extended button with a plastic lens.
