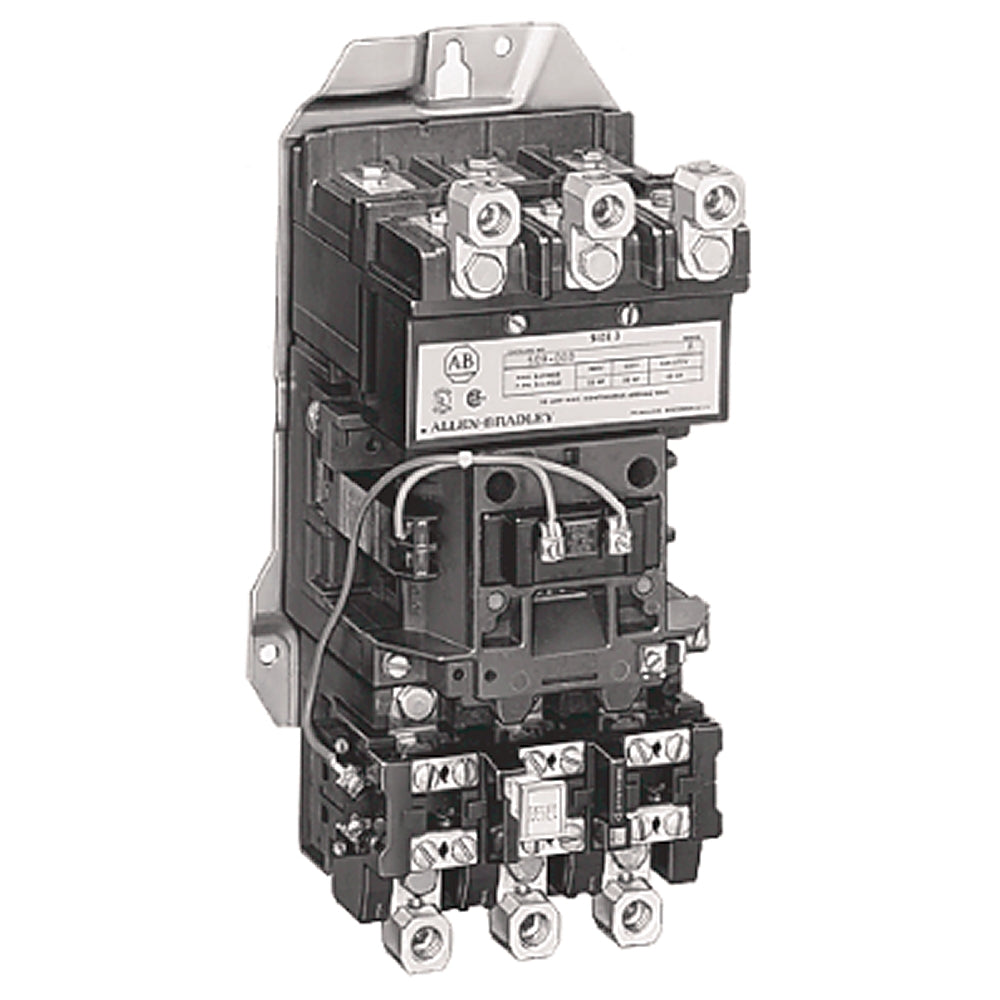

Allen-Bradley 509-COD-17 - NEMA Motor Starter 27A
Allen-Bradley 509-COD-17 - NEMA Motor Starter 27A

Allen-Bradley 509-COD-17 - NEMA Motor Starter 27A

Allen-Bradley
Price
Save $-487.77
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
The Allen-Bradley 509-COD-17 is a NEMA-rated motor starter designed for reliable overload protection and motor control in industrial environments. This unit is rated for a maximum voltage of 600V AC and a continuous current rating of 27 amps, with a NEMA Size 1 frame supporting motors up to 10 horsepower at 480V. Constructed with a durable open-style enclosure, the starter weighs 5.74 lb and features a Class 10 adjustable bimetallic overload relay for precise thermal protection. It complies with UL 508 and CSA C22.2 standards, ensuring safe operation in demanding applications. Typical uses include conveyors, pumps, and fans in manufacturing and processing facilities.

Key Features & Specifications
  • Type: NEMA Motor Starter with bimetallic overload relay
  • Voltage Rating: 600V AC
  • Current Rating: 27 Amps
  • Dimensions: NEMA Size 1 frame
  • Standards: UL 508, CSA C22.2
  • Applications: Conveyors, pumps, fans, industrial machinery
  • Switch Type: NEMA rated contactor
  • Configuration: Open style, 3-pole
  • Coil Voltage Maximum: 600V AC
  • Temp Rating: Class 10 overload protection
  • Shipping Dimensions: Standard NEMA Size 1
  • Phase: 3-Phase
  • Voltage: 600V AC maximum
  • Amperage: 27 Amps
  • AIC rating: 10kA at 480V
  • Connection: Screw terminals
  • Poles: 3
  • Protection: Overload and short circuit
  • Functions: Motor starting and overload protection
  • Frame Size: NEMA Size 1
  • Trip Type: Class 10 adjustable
  • Panel Type: Open
  • Breaker Type: Not applicable (starter only)
  • Control Voltage Minimum: 24V AC
  • Control Voltage Maximum: 600V AC
  • MCM Size: Not applicable
  • Metal Type: Steel enclosure
  • Panel Style: Open
  • Bus Type: Not applicable
  • Fuse Class: Not applicable
  • Insulation Temperature: 105°C
  • Inductance: Not specified
  • Impedance: Not specified
  • Barrels: Not applicable
  • Class Rating: NEMA Size 1
  • Diameter: Not applicable
  • Velocity: Not applicable
  • Clip Center: Not applicable
  • Clas: Not applicable
  • Mounting: Panel mount
  • Hz: 50/60 Hz
  • Coil Material: Copper
  • Horse Power: 10 HP at 480V
  • Aux Contacts: 1 N.O. + 1 N.C.
  • CPT: Not included
  • Full Load Amps: 27 Amps
  • Dist Voltage: 600V AC
  • Bucket Size: Not applicable
  • Bucket Style: Not applicable
  • Bucket Type: Not applicable
  • Full Load Amp Maximum: 27 Amps
  • Full Load Amp Minimum: 0 Amps
  • Enclosure: Open
  • Relay Style: Bimetallic
  • Coil Voltage Minimum: 24V AC
  • Wire: Copper
  • Amperage Maximum: 27 Amps
  • Amperage Minimum: 0 Amps
  • Nema Rating: Size 1
  • Switch Style: NEMA contactor
  • Wire Size: 14 AWG to 4 AWG
  • Certification: UL, CSA
  • Circuit Breaker Mounting Style: Not applicable
  • Terminal Connection: Screw
  • Frequency Rating: 50/60 Hz
  • Phase Connection: 3-Phase
  • Standards: UL 508, CSA C22.2
  • Compatible Frames: NEMA Size 1
  • Installation Type: Panel mount
  • Item QTY: 1
  • Nema Starter Size: Size 1
  • Breaker Frame: Not applicable
  • Current Rating: 27 Amps
  • Reverse Standoff Voltage: Not applicable
  • Watts: Not applicable
  • Peak Pulse Current: Not applicable
  • Breakdown Voltage (MIN VBR@IT ) (V): Not applicable
  • Breakdown Voltage (VBR@IT) (V): Not applicable
  • Polarity: Not applicable
  • Operating Temperature Maximum Celsius: 40°C
  • Max Clamp Voltage: Not applicable
  • On-State Current: Not applicable


Product Identification
  • UPC: 662072265871
