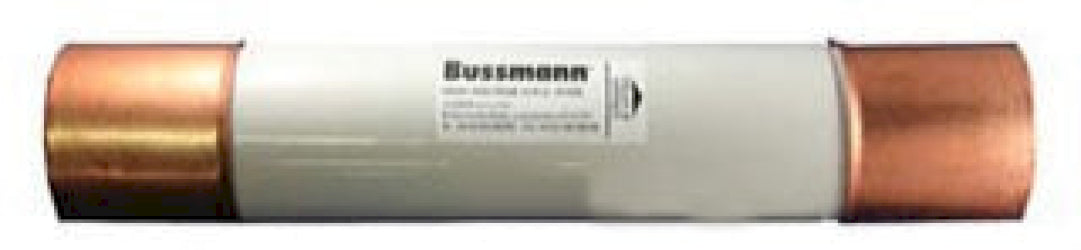

Bussmann 5.5VFNHA4R - Medium Voltage Fuse 4A 5500V (Type R, 60kA AIC)

Bussmann 5.5VFNHA4R is a medium voltage current-limiting fuse designed for protecting electrical equipment in industrial power systems. It features a 5500V voltage rating and a 4A current rating for precise overcurrent protection. The fuse utilizes a single-barrel ferrule connection design with a 3-inch diameter and is constructed for 12-inch clip center mounting. This Type R, Class R fuse complies with industry standards for medium voltage applications and offers an interrupting rating of 60kA at 5.5kV. It is typically deployed in motor circuits, transformers, and feeder protection systems where high-voltage interruption capability is required.

Key Features & Specifications

• Type: Medium Voltage Current-Limiting Fuse, Type R, Class R, Single Barrel
• Voltage Rating: 5500V AC
• Current Rating: 4A
• Dimensions: 3" Diameter, 12" Clip Center
• Standards: Industry Standard for Medium Voltage Protection
• Applications: Motor Circuits, Transformer Protection, Feeder Protection
• AIC rating: [email protected]
• Connection: Ferrule
• Barrels: 1
• Weight: 8 lb
• Class Rating: R

Product Identification

• UPC: 051712553117
• GTIN: 00051712553117
