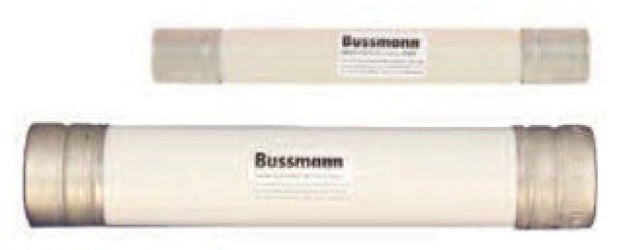

Bussmann 5.5AMWNA3.0E - Medium Voltage Fuse 3A, 5.5kV

Bussmann
Price
Save $-336.35
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
The Bussmann 5.5AMWNA3.0E is a medium-voltage, current-limiting fuse designed for the protection of transformers, motors, and capacitors in industrial power systems. It features a 3A current rating and a 5500V AC voltage rating, housed in a robust, single-barrel ferrule construction with dimensions of 142 mm x 20 mm x 20 mm and a weight of 0.2622 lb. This Class E fuse meets stringent industry standards and offers a high interrupting capacity of 50kA at 5.5kV for reliable short-circuit protection in demanding applications such as switchgear and motor control centers.

Key Features & Specifications
  • Type: AM-type, medium-voltage, current-limiting fuse with ferrule connection
  • Voltage Rating: 5500V AC
  • Current Rating: 3A
  • Dimensions: 142 mm (Length) x 20 mm (Height) x 20 mm (Width)
  • Standards: Class E rating
  • Applications: Protection for transformers, motors, and capacitors in industrial power distribution
  • AIC rating: 50kA @ 5.5kV
  • Connection: Ferrule
  • Barrels: 1
  • Diameter: 0.8 in
  • Clip Center: 5.6 in
  • Weight: 0.2622 lb


Product Identification
  • UPC: 051712249461
  • GTIN: 00051712249461
