Bussmann 5.5AMWNA2.0E - Medium Voltage Fuse 2A, 5.5kV

Bussmann
Price
Save $2,449.80
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

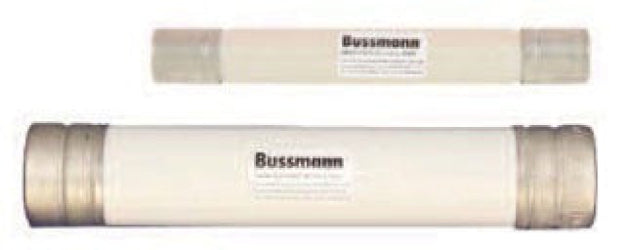

Bussmann 5.5AMWNA2.0E is a medium voltage fuse designed for high-voltage circuit protection in industrial power distribution systems. It provides a 2A current rating for circuits up to 5500V AC, with a compact ferrule connection design measuring 142 mm in length and 20.6 mm in diameter. Constructed as a single-barrel, Class E fuse, it meets the IEC 282-1 standard and offers an interrupting rating of 50kA at 5.5kV for reliable fault protection. Its design is suited for safeguarding transformers, motors, and capacitor banks in medium-voltage switchgear and control applications.

Key Features & Specifications
  • Type: AM-type, medium-voltage, single-barrel fuse with ferrule connection
  • Voltage Rating: 5500V AC
  • Current Rating: 2A
  • Dimensions: 142 mm (Length) x 20.6 mm (Diameter)
  • Standards: Certified to IEC 282-1
  • Applications: Protection for transformers, motors, and capacitor banks in industrial power systems
  • AIC rating: 50kA @ 5.5kV
  • Class Rating: E
  • Connection: Ferrule
  • Barrels: 1
  • Clip Center: 5.6 in
  • Weight: 0.2622 lb


Product Identification
  • UPC: 051712249454
  • GTIN: 00051712249454
