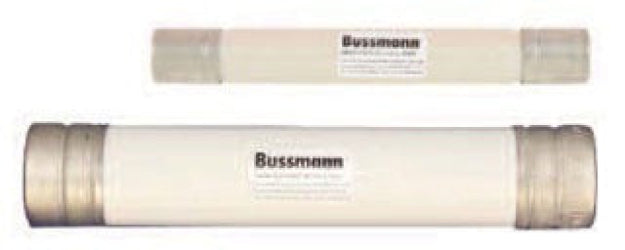

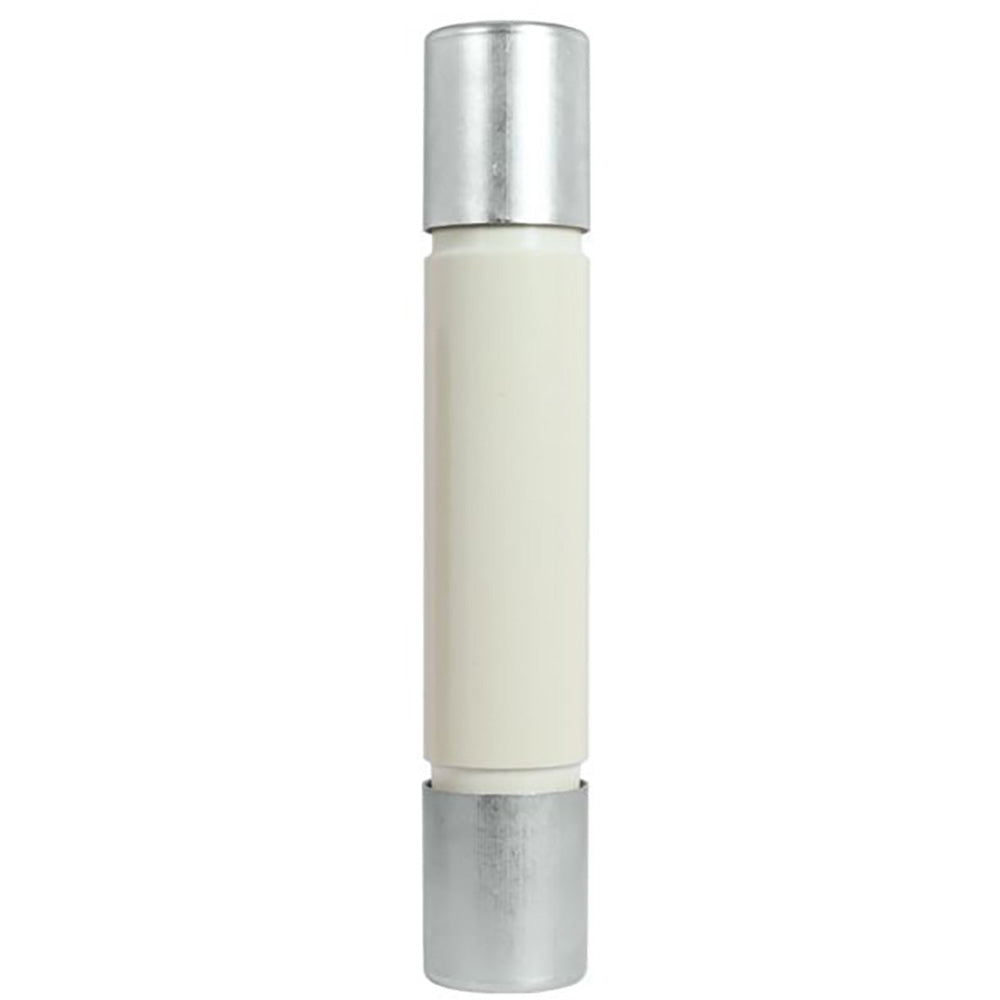

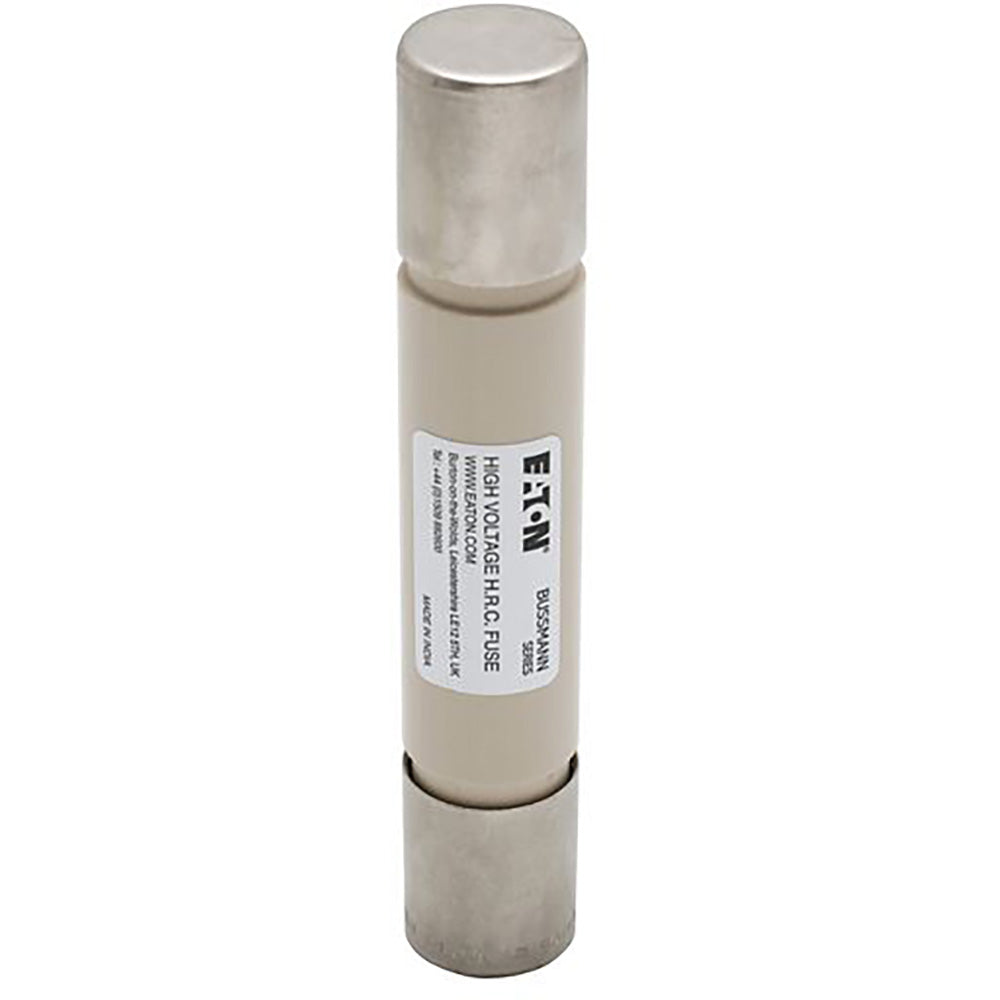

Bussmann 5.5ABWNA1E - AB Medium Voltage Fuse 1A 5500V (50kA AIC)

Bussmann
Price
Save $111.64
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Bussmann 5.5ABWNA1E is a medium voltage fuse designed for providing high-interrupting capacity protection in industrial power distribution systems. It features a 1A current rating and a 5500V voltage rating, engineered to safely clear faults up to 50kA at 5.5kV. The fuse is constructed as a single-barrel, Class E device with compact dimensions of 142 mm x 25.4 mm x 25.4 mm and a weight of 0.437 lb, designed for use with fuse clips having a 4.42-inch center spacing. It is certified to the IEC 282-1 standard and is typically applied in motor control centers, transformers, and feeder circuits requiring reliable medium-voltage overcurrent protection.

Key Features & Specifications
  • Type: AB, Medium Voltage, Single Barrel, Current-Limiting Fuse
  • Voltage Rating: 5500V AC
  • Current Rating: 1A
  • Dimensions: 142 mm (Length) x 25.4 mm (Height) x 25.4 mm (Width)
  • Standards: IEC 282-1
  • Applications: Motor Protection, Transformer Protection, Feeder Circuits
  • AIC rating: 50kA @ 5.5kV
  • Class Rating: E
  • Barrels: 1
  • Clip Center: 4.42 in
  • Weight: 0.437 lb


Product Identification
  • UPC: 051712835862
  • GTIN: 00051712835862
