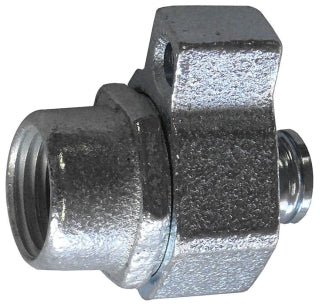

OZ/Gedney 4Q100LT - 1" Liquidtight Connector with Ground Lug
OZ/Gedney 4Q100LT - 1" Liquidtight Connector with Ground Lug

OZ/Gedney 4Q100LT - 1" Liquidtight Connector with Ground Lug

OZ/Gedney
Price
Save $-167.38
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
OZ/Gedney 4Q100LT is a 1-inch Ground-Tite liquidtight straight connector designed for securing, grounding, and sealing liquidtight flexible metal conduit (LFMC) to boxes and enclosures. It features a compression connection with a tapered male NPT hub and supports conductor ranges from 14 AWG to 4 AWG, with an insulated throat and ground lug for external bonding conductor runs. The connector is constructed with a malleable iron body and gland nut, along with a zinc plated steel ferrule, offering durability and corrosion resistance in a compact, slim diameter design. It complies with UL 514B, CSA C22.2, NEMA FB-1, and Federal Specification W-F-406E standards. This connector is typically used in industrial environments for reliable conduit termination and grounding.

Key Features & Specifications
  • Trade size: 1 inch
  • Material: Malleable iron body and gland nut
  • Ferrule: Zinc plated steel
  • Connection type: Compression x tapered male NPT hub
  • Conductor range: 14 AWG to 4 AWG
  • Insulated throat with ground lug
  • Standards: UL 514B, CSA C22.2, NEMA FB-1, Federal Spec W-F-406E
  • Application: Secures, grounds, and seals LFMC to boxes and enclosures
  • Weight: 5.19 lb


Product Identification
  • UPC: 783126617535
  • GTIN: 00783126617535
