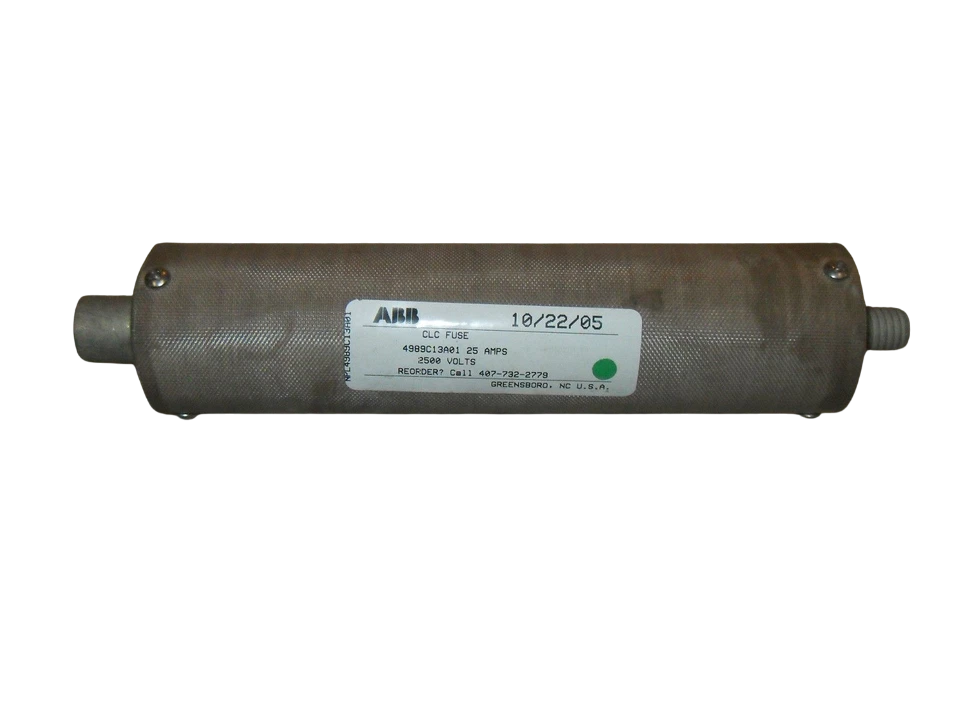

ABB 4989C13A01 - CLC Series Medium Voltage Fuse 2500V 25A (35kA AIC)

ABB 4989C13A01 is a medium voltage fuse from the CLC Series designed for high-current circuit protection in industrial power distribution systems. This 2500V-rated fuse features a 25A current rating and 35kA interrupting capacity at rated voltage, housed in a durable threaded barrel configuration with a 1.5" diameter. The 3 lb fuse meets stringent industry standards for medium voltage applications, providing reliable overcurrent protection in switchgear, motor control centers, and transformer circuits.

Key Features & Specifications

• Type: CLC Series medium voltage fuse with single-barrel threaded connection
• Voltage Rating: 2500V AC
• Current Rating: 25A
• Dimensions: 1.5" diameter
• Standards: Industrial medium voltage protection
• Applications: Switchgear, motor controls, transformer protection
• AIC rating: 35kA@2500V
• Connection: Threaded
• Barrels: 1
• Weight: 3 lb
