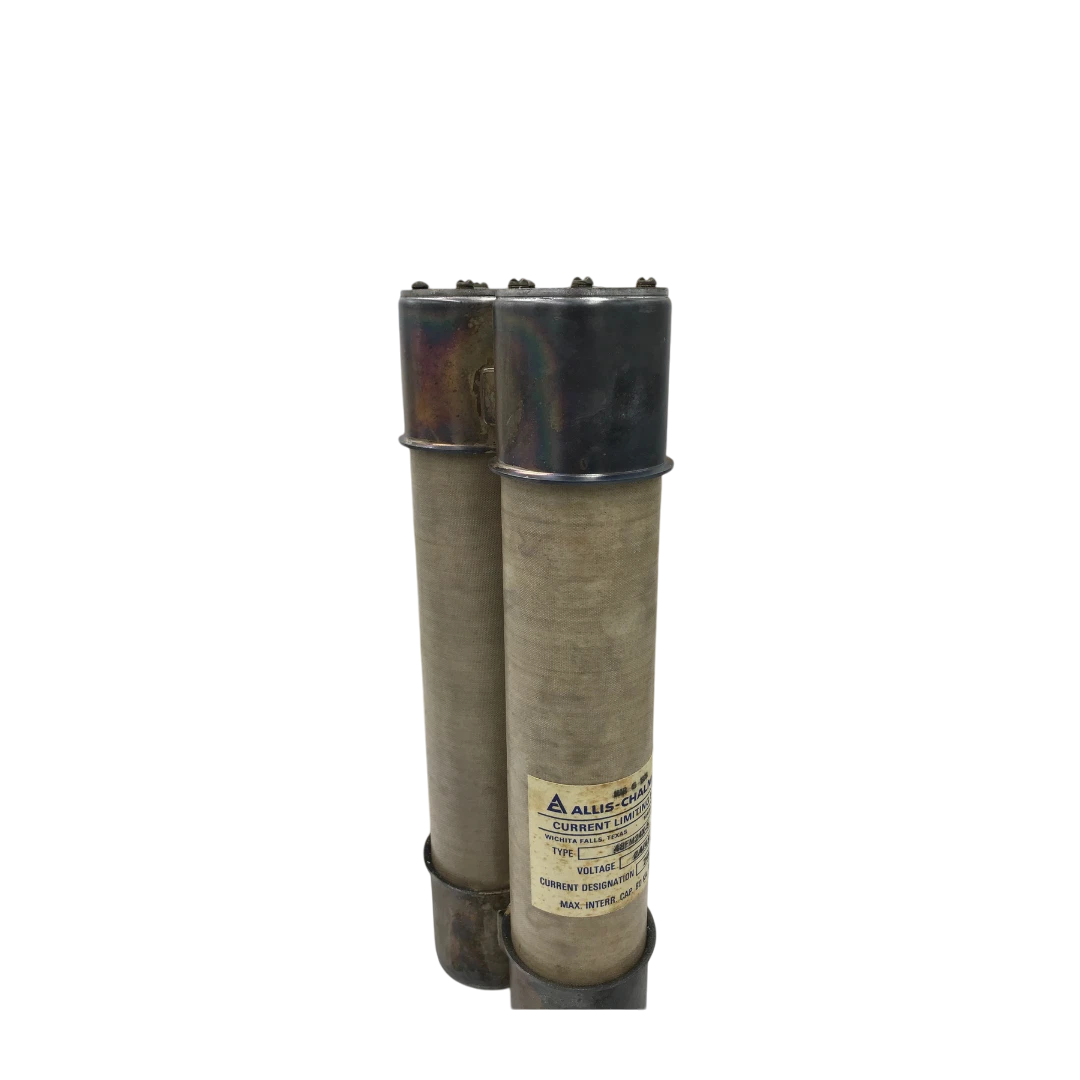

Allis Chalmers 48FM24X-5 - FM-Class Fuse 4800V/24A (Class R Interruption)

Allis Chalmers 48FM24X-5 is a medium-voltage FM-class fuse designed for high-voltage circuit protection in industrial power systems. Rated for 4800V AC operation with a 24A current capacity, it features a robust ferrule connection and dual-barrel construction for reliable performance. The fuse measures 3 inches in diameter with a 12-inch clip center spacing and weighs 20 lb, meeting Class R interruption standards for enhanced safety. It complies with industry requirements for medium-voltage protection, making it suitable for switchgear, transformers, and motor control applications in utility and heavy industrial environments.

Key Features & Specifications

• Type: FM-class medium-voltage fuse with ferrule connection
• Voltage Rating: 4800V AC
• Current Rating: 24A
• Dimensions: 3" diameter, 12" clip center spacing
• Standards: Class R interruption rating
• Applications: Industrial switchgear, transformers, motor circuits
• Connection: Ferrule
• Barrels: 2
• Weight: 20 lb
• Class Rating: R
