Eaton 48DBA1-.5E - Medium Voltage Fuse 0.5A 46kV Class E

Eaton
Price
Save $3,214.90
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

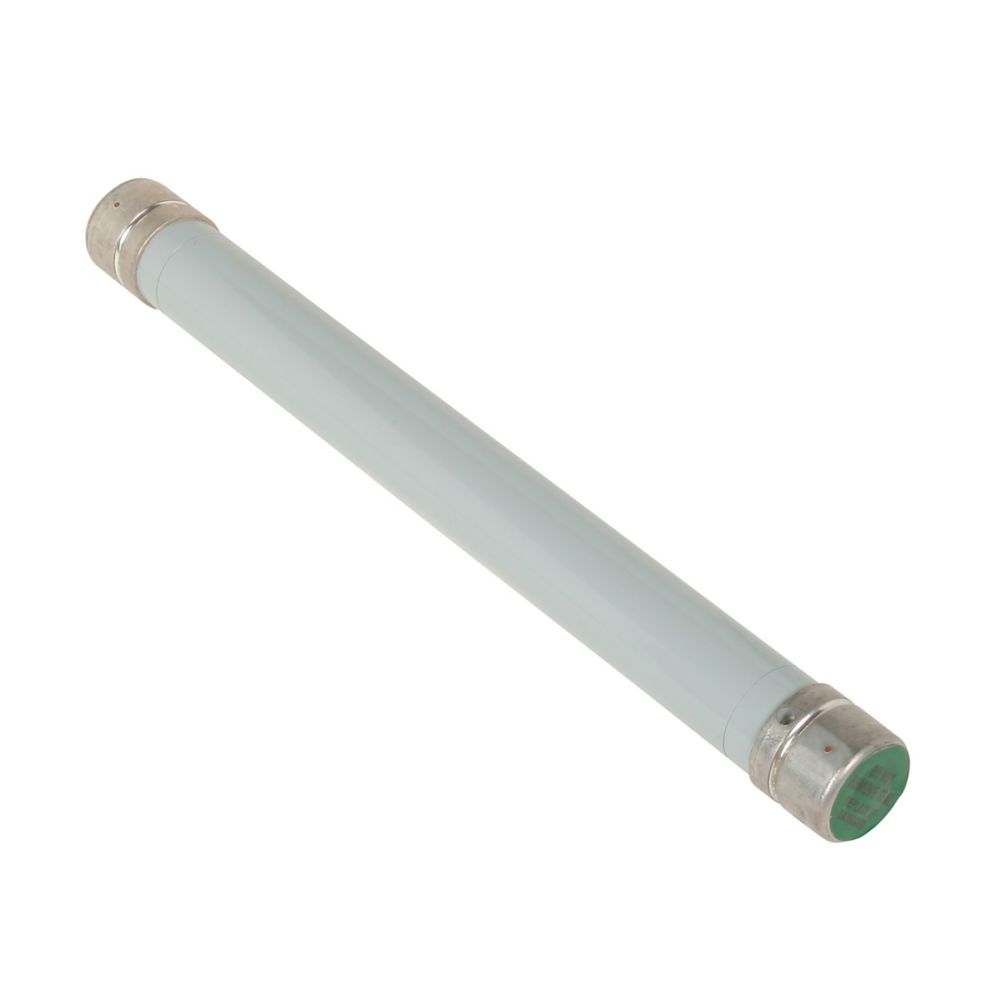

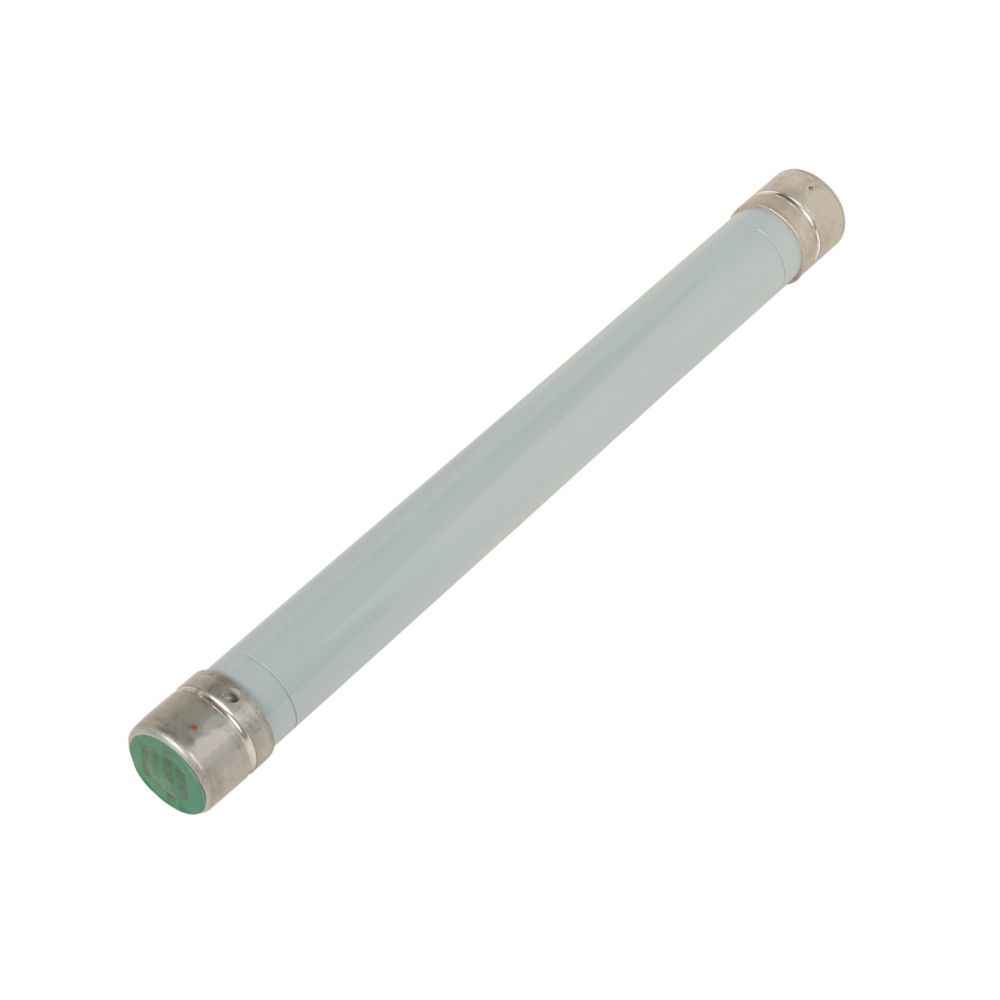

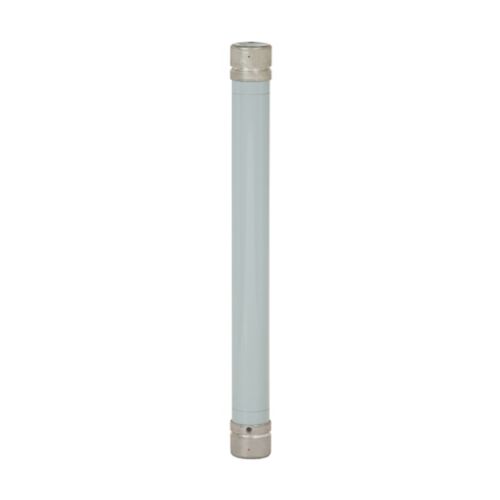

Eaton 48DBA1-.5E is a medium voltage fuse designed for overcurrent protection in high-voltage electrical distribution systems. It provides a 0.5A current rating for circuits operating at up to 46kV, featuring a single-barrel, ferrule-connection design with a standard velocity characteristic and a Class E rating. The fuse is constructed with robust materials, measuring 34 inches in length with a 1.7-inch by 1.7-inch cross-section and a weight of 6 lb, and it is engineered to comply with the IEEE Std. C37.41 standard for power fuses. This fuse is typically applied in industrial and utility settings for the protection of transformers, capacitors, and feeders.

Key Features & Specifications
  • Type: Medium Voltage Fuse, DBA1 single-barrel design with ferrule connection and standard velocity
  • Voltage Rating: 46000V
  • Current Rating: 0.5A
  • Dimensions: 34 in x 1.7 in x 1.7 in (Length x Height x Width)
  • Weight: 6 lb
  • Class Rating: E
  • Standards: Certified to IEEE Std. C37.41
  • Connection: Ferrule
  • Barrels: 1
  • Velocity: Standard
  • Family: DBA
  • Country of Origin: Dominican Republic


Product Identification
  • UPC: 78667000387
  • GTIN: 00786670003878
