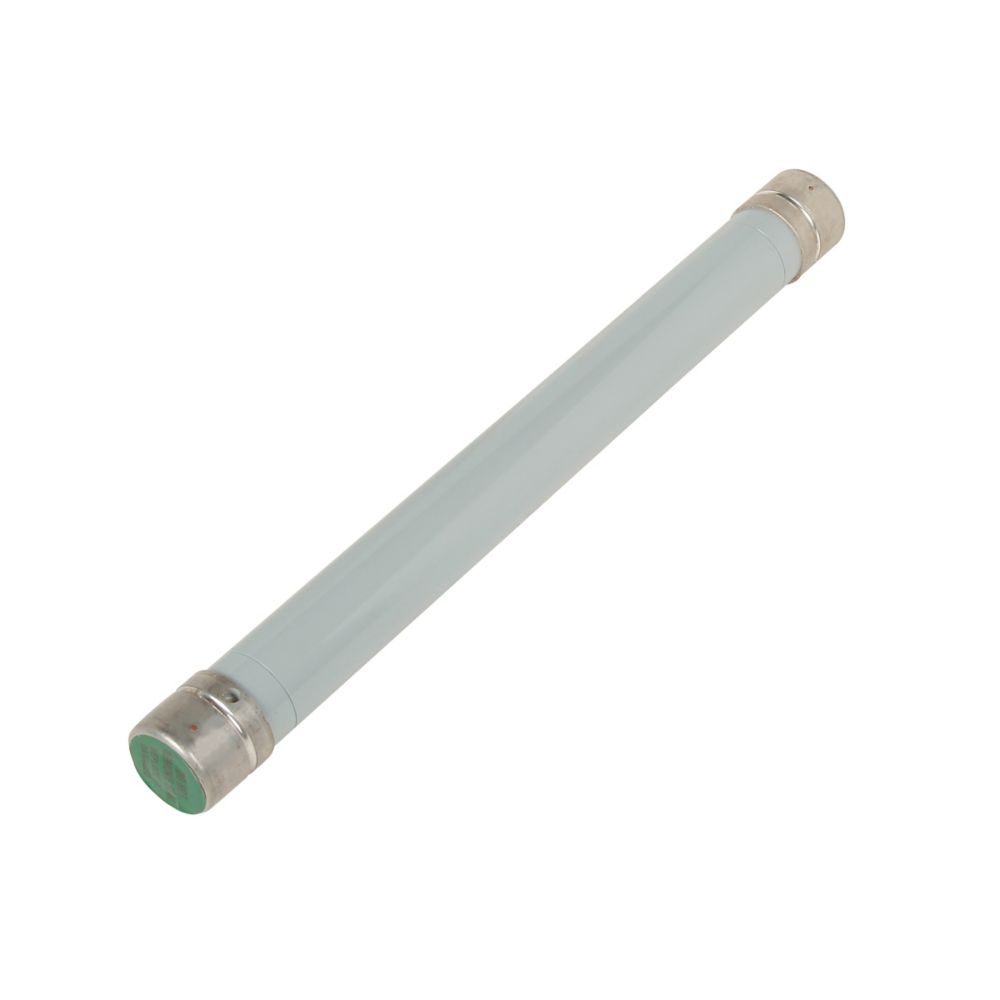

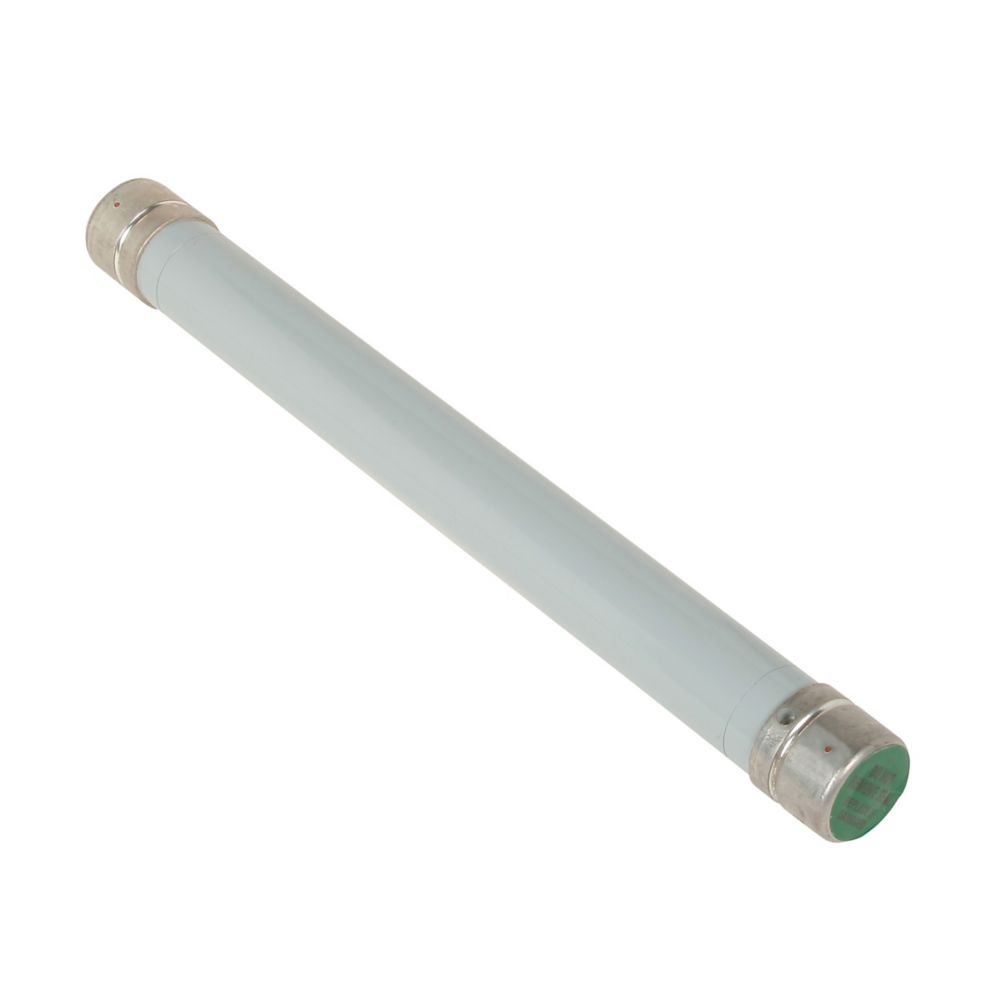

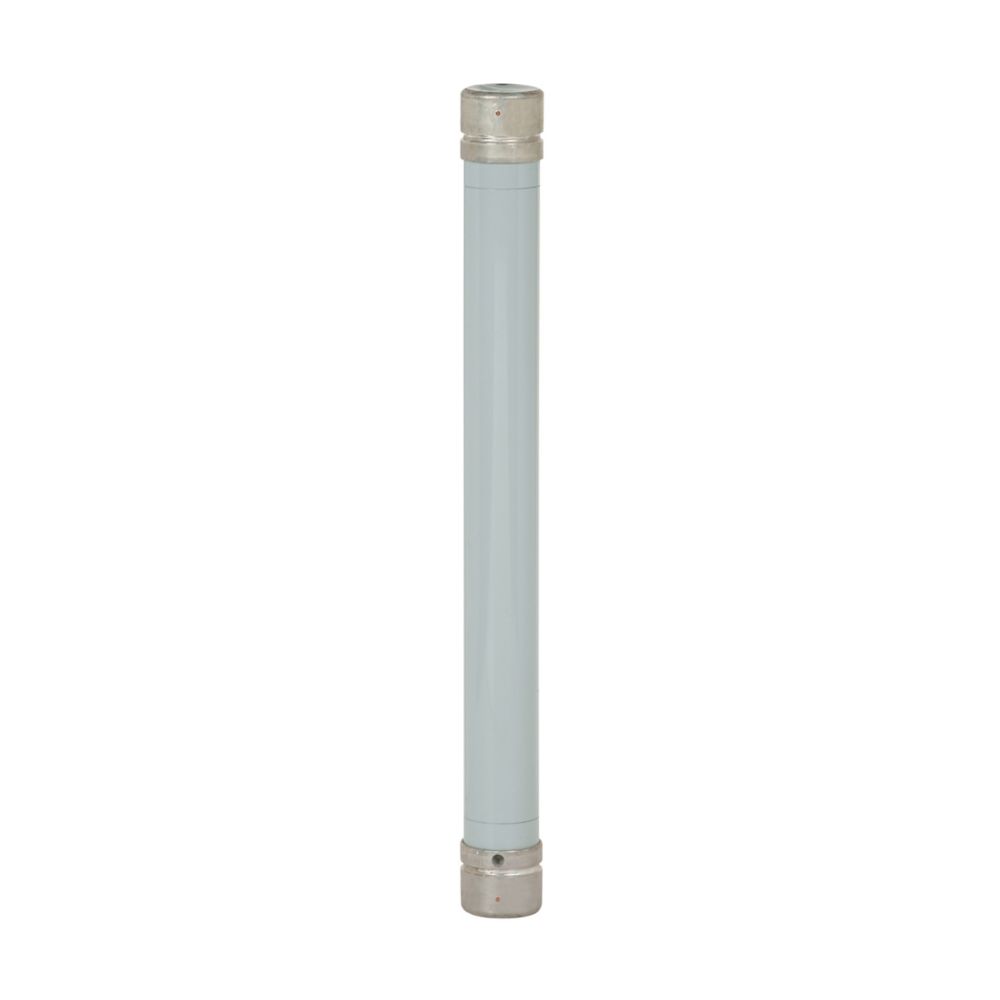

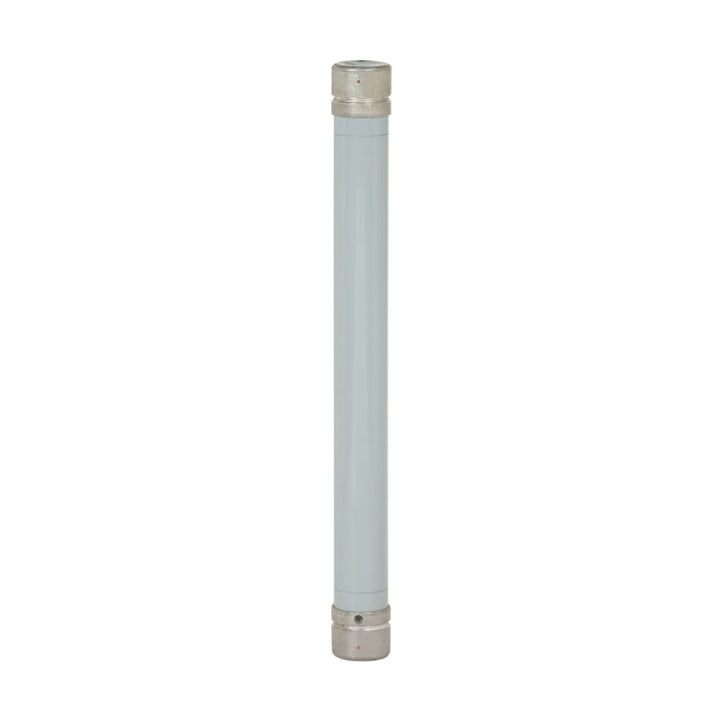

Eaton 48DBA1-50E - Medium Voltage Fuse 50A 46kV (IEEE C37.41)

Price
Regular price $0.00
Regular price $3,214.90 Sale price $0.00
Save $3,214.90
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Eaton 48DBA1-50E is a medium voltage current-limiting power fuse designed for the protection of transformers, motors, and feeders in industrial power distribution systems. It features a 50A current rating and a 46kV voltage rating, housed within a robust, single-barrel ferrule-connected construction measuring 34 inches in length. The fuse is engineered to IEEE Std. C37.41 and provides a 4kA interrupting rating at 480kV, ensuring reliable protection for medium-voltage circuits against short-circuit faults.

Key Features & Specifications
  • Type: DBA1, Medium Voltage Current-Limiting Power Fuse, Single Barrel
  • Voltage Rating: 46000V
  • Current Rating: 50A
  • Dimensions: 34 in x 1.7 in x 1.7 in (Length x Height x Width)
  • Standards: IEEE Std. C37.41
  • Applications: Transformer, Motor, and Feeder Protection
  • Class Rating: E
  • Connection: Ferrule
  • Barrels: 1
  • Velocity: Standard
  • AIC rating: 4kA@480kV
  • Weight: 6 lb


Product Identification
  • UPC: 78667000503
  • GTIN: 00786670005032
