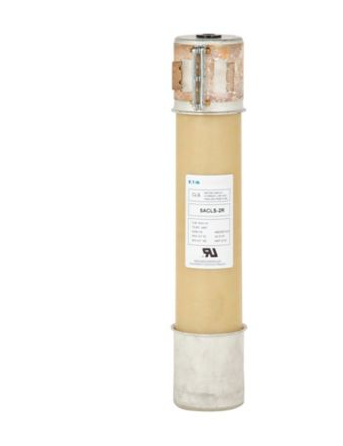

Eaton 449D597G06 - Medium Voltage Fuse Class R (5080V 170A 50kA AIC)

Eaton 449D597G06 is a medium voltage fuse designed for high-current circuit protection in industrial power systems. This ACLS-type fuse features a 5080V voltage rating and 170A current rating, with a robust ferrule connection and single-barrel construction for reliable performance. The Class R-rated fuse measures 3 inches in diameter and weighs 9 lb, built to withstand [email protected] interrupting capacity. It complies with industry standards for medium voltage applications, making it suitable for transformer protection, motor circuits, and feeder protection in utility and industrial environments.

Key Features & Specifications

• Type: Medium Voltage Fuse (ACLS), Class R
• Voltage Rating: 5080V AC
• Current Rating: 170A
• Dimensions: 3" diameter
• Weight: 9 lb
• Connection: Ferrule
• Barrels: 1
• AIC Rating: [email protected]
• Standards: CLS family compliant
• Applications: Transformer protection, motor circuits, industrial feeders
