Siemens 3VAE6001S - 600A Enclosure for 3VA5/3VA6
Siemens 3VAE6001S - 600A Enclosure for 3VA5/3VA6

Siemens 3VAE6001S - 600A Enclosure for 3VA5/3VA6

Siemens
Price
Save $22.15
/
Condition
  • Low stock - 5 items left
  • Backordered, shipping soon
Call for Price

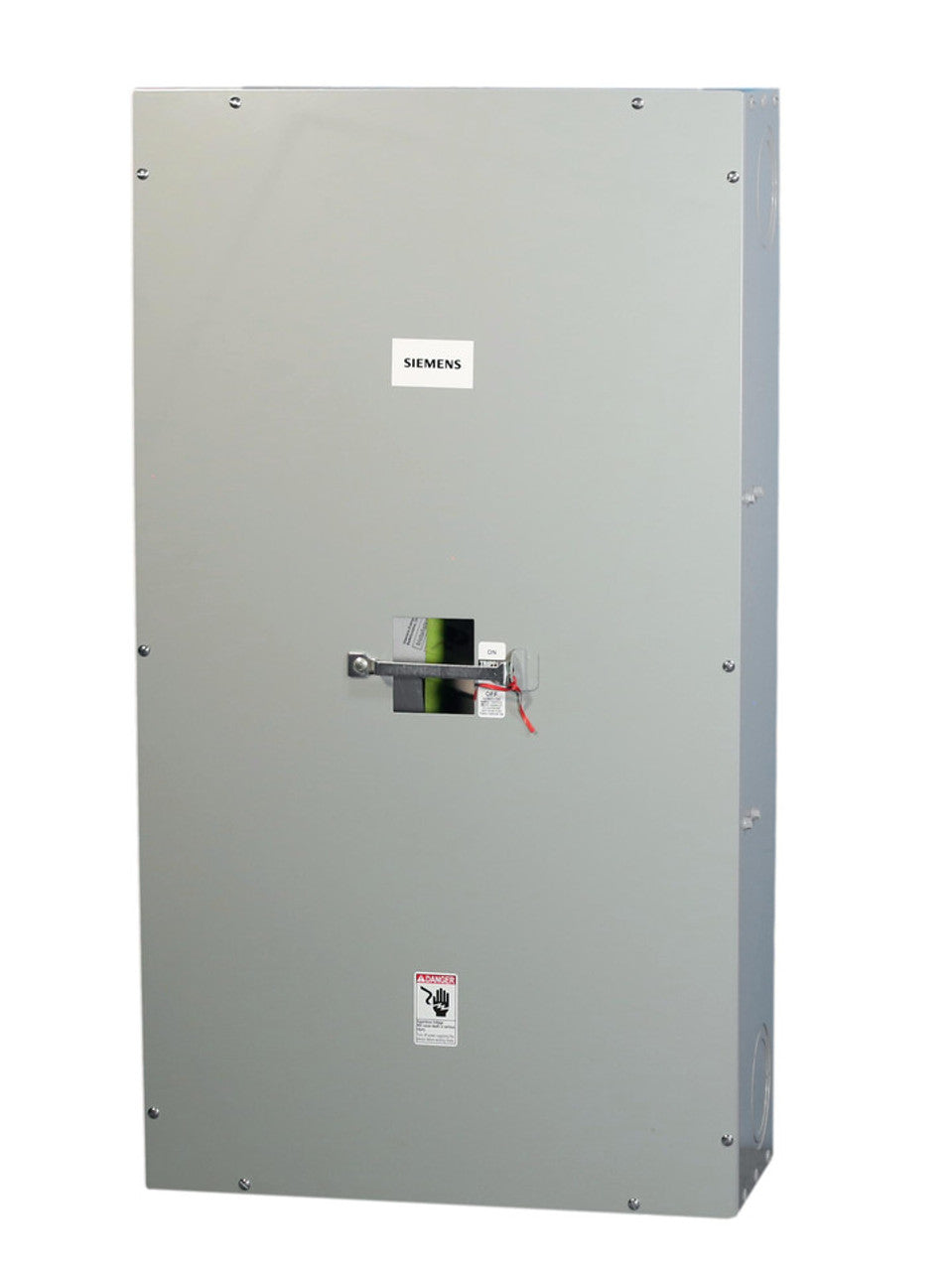

Siemens 3VAE6001S is a low-voltage circuit breaker enclosure from the Sentron Series, designed to house and protect 3VA5 and 3VA6 frame circuit breakers. It is rated for 600A and supports low-voltage applications, with a NEMA Type 1 surface mount design for indoor use. The enclosure measures 47.638 x 25.984 x 9.843 inches, weighs 68.145 lb, and is constructed without a neutral. It is UL Listed and certified, with an operating temperature range of -13°F to 158°F (-25°C to 70°C), and is compatible with 3VA breakers offering solid-state protection and interrupt ratings up to 100kA at 480V. This enclosure is suited for industrial environments requiring reliable circuit breaker mounting and protection, though circuit breakers must be purchased separately.

Key Features & Specifications
  • Type: Enclosure
  • Amperage: 600A
  • Series/Frame: 3VA5 / 3VA6
  • Mounting Type: NEMA Type 1 Surface Mount
  • Enclosure Type: Circuit Breaker Enclosure without Neutral
  • Interrupt Rating: Compatible with 3VA breakers up to 100kA at 480V
  • Voltage: Low Voltage Applications
  • Protection Type: Solid State
  • Dimensions: 47.638 x 25.984 x 9.843 inch
  • Weight: 68.145 lb
  • Standards: UL Listed
  • Certification: UL Listed
  • Temp Rating: -13°F-158°F (-25°C-70°C)
  • Country of Origin: Mexico


Product Identification
  • UPC: 804766827686
  • GTIN: 00804766827686
