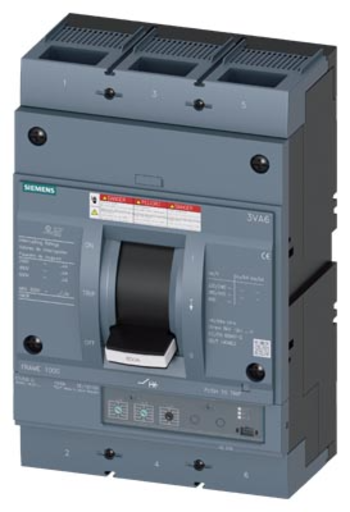

Siemens 3VA6580-7HL32-0AA0 - Molded Case 800A (3-Pole, 690V)
Siemens 3VA6580-7HL32-0AA0 - Molded Case 800A (3-Pole, 690V)

Siemens 3VA6580-7HL32-0AA0 - Molded Case 800A (3-Pole, 690V)

Siemens
Price
Save $14,122.29
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens 3VA6580-7HL32-0AA0 is a 3VA type molded case circuit breaker from the Sentron Series, designed for low voltage power distribution with electronic trip protection. This 3-pole breaker is rated for 800A continuous current and 690V AC, providing Long-time and Instantaneous (LI) protection functions via an ETU320 trip unit. The unit measures 14.173 x 9.843 x 7.087 inches and weighs 30.865 lb, featuring a bolt-on mounting with lug terminal connections and a non-interchangeable trip design. It is UL Listed and certified, with an interrupting rating of 100 kA at 480V AC, and operates within a temperature range of -13°F to 158°F (-25°C to 70°C). Typical applications include residential, commercial, and industrial power distribution systems, including reverse fed configurations.

Key Features & Specifications
  • Manufacturer: Siemens
  • Type: 3VA
  • Family: Sentron Series
  • Item Subcategory: Molded Case
  • Poles: 3
  • Current Rating: 800A
  • Voltage Rating: 690V AC
  • Functions: LI (Long-time and Instantaneous)
  • Trip Type: ETU320
  • AIC Rating: 100 kA at 480V
  • Standards: UL Listed
  • Certification: UL Listed
  • Temp Rating: -13°F to 158°F (-25°C to 70°C)
  • Dimensions: 14.173 x 9.843 x 7.087 inch
  • Weight: 30.865 lb
  • Country of Origin: Mexico
  • Mounting: Bolt-on with dials
  • Connection: Lug terminal with nut keeper
  • RoHS Compliant: Yes


Product ID: 3VA6580-7HL32-0AA0
