Siemens 3VA6580-5HL32-0AA0 - Molded Case Breaker 800A 690V AC
Siemens 3VA6580-5HL32-0AA0 - Molded Case Breaker 800A 690V AC

Siemens 3VA6580-5HL32-0AA0 - Molded Case Breaker 800A 690V AC

Siemens
Price
Save $2,738.77
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

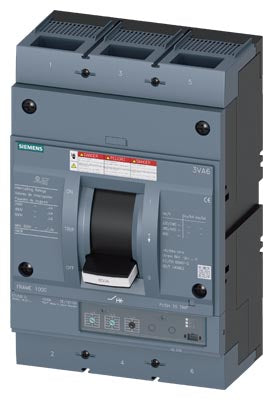

Siemens 3VA6580-5HL32-0AA0 is a 3-pole molded case circuit breaker from the Sentron Series, designed for LI (long-time and instantaneous) protection functions. It is rated for 800A continuous current at 690V AC, with an interrupting capacity of 35kA at 480V, and features an ETU320 electronic trip unit. The breaker measures 14.173 x 9.843 x 7.087 inches, weighs 30.704 lb, and operates within a temperature range of -13°F to 158°F (-25°C to 70°C). It is UL Listed and certified, compatible with 3VA65 frames, and suitable for 3-phase industrial power distribution and motor protection applications.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Sentron Series, 3VA
  • Voltage Rating: 690V AC
  • Current Rating: 800A
  • Dimensions: 14.173 x 9.843 x 7.087 inch
  • Standards: UL Listed
  • Applications: Industrial power distribution, motor protection
  • Switch Type: Circuit Breaker
  • Configuration: 3-Pole
  • Coil Voltage Maximum: Not specified
  • Temp Rating: -13°F-158°F (-25°C-70°C)
  • Shipping Dimensions: Not specified
  • Phase: 3
  • Voltage: 690V AC
  • Amperage: 800A
  • AIC rating: 35kA@480V
  • Connection: Not specified
  • Poles: 3
  • Protection: LI (Long-time and Instantaneous)
  • Functions: LI
  • Frame Size: 3VA65
  • Trip Type: ETU320
  • Panel Type: Not specified
  • Breaker Type: Molded Case
  • Control Voltage Minimum: Not specified
  • Control Voltage Maximum: Not specified
  • MCM Size: Not specified
  • Metal Type: Not specified
  • Panel Style: Not specified
  • Bus Type: Not specified
  • Fuse Class: Not specified
  • Insulation Temperature: Not specified
  • Inductance: Not specified
  • Impedance: Not specified
  • Barrels: Not specified
  • Class Rating: Not specified
  • Diameter: Not specified
  • Velocity: Not specified
  • Clip Center: Not specified
  • Clas: Not specified
  • Mounting: Not specified
  • Hz: Not specified
  • Coil Material: Not specified
  • Horse Power: Not specified
  • Aux Contacts: Not specified
  • CPT: Not specified
  • Full Load Amps: Not specified
  • Dist Voltage: Not specified
  • Bucket Size: Not specified
  • Bucket Style: Not specified
  • Bucket Type: Not specified
  • Full Load Amp Maximum: Not specified
  • Full Load Amp Minimum: Not specified
  • Enclosure: Not specified
  • Relay Style: Not specified
  • Coil Voltage Minimum: Not specified
  • Wire: Not specified
  • Amperage Maximum: Not specified
  • Amperage Minimum: Not specified
  • Nema Rating: Not specified
  • Switch Style: Not specified
  • Wire Size: Not specified
  • Certification: UL Listed
  • Circuit Breaker Mounting Style: Not specified
  • Terminal Connection: Not specified
  • Frequency Rating: Not specified
  • Phase Connection: Not specified
  • Standards: UL Listed
  • Compatible Frames: 3VA65
  • Installation Type: Not specified
  • Item QTY: Not specified
  • Nema Starter Size: Not specified
  • Breaker Frame: 3VA65
  • Current Rating: 800A
  • Reverse Standoff Voltage: Not specified
  • Watts: Not specified
  • Peak Pulse Current: Not specified
  • Breakdown Voltage (MIN VBR@IT ) (V): Not specified
  • Breakdown Voltage (VBR@IT) (V): Not specified
  • Polarity: Not specified
  • Operating Temperature Maximum Celsius: 70°C
  • Max Clamp Voltage: Not specified
  • On-State Current: Not specified


Product Identification
  • UPC: Not specified
  • GTIN: Not specified
