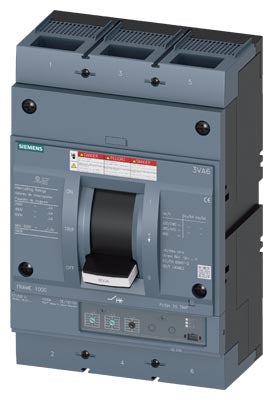

Siemens 3VA6560-5HL32-0AA0 - Molded Case 600A 690V AC
Siemens 3VA6560-5HL32-0AA0 - Molded Case 600A 690V AC

Siemens 3VA6560-5HL32-0AA0 - Molded Case 600A 690V AC

Siemens
Price
Save $3,336.90
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens 3VA6560-5HL32-0AA0 is a 3-pole molded case circuit breaker from the Sentron Series, designed for LI (long-time and instantaneous) protection functions. It is rated for 600A continuous current and 690V AC voltage, with an AIC rating of 35kA at 480V, and features an ETU320 electronic trip unit. The unit measures 14.173 x 9.843 x 7.087 inches, weighs 29.101 lb, and operates within a temperature range of -13°F to 158°F (-25°C to 70°C). It is UL Listed and certified, making it suitable for industrial applications requiring reliable overcurrent protection.

Key Features & Specifications
  • Type: Molded Case, Sentron Series, 3VA
  • Voltage Rating: 690V AC
  • Current Rating: 600A
  • Dimensions: 14.173 x 9.843 x 7.087 inch
  • Standards: UL Listed
  • Applications: Industrial overcurrent protection
  • Switch Type: Circuit Breaker
  • Configuration: 3-Pole
  • Temp Rating: -13°F-158°F (-25°C-70°C)
  • Phase: 3-Phase
  • Amperage: 600A
  • AIC rating: 35kA@480V
  • Poles: 3
  • Protection: LI (Long-time and Instantaneous)
  • Functions: LI
  • Trip Type: ETU320
  • Breaker Type: Molded Case
  • Certification: UL Listed
  • Circuit Breaker Mounting Style: Fixed
  • Frequency Rating: 50/60 Hz
  • Standards: UL
  • Installation Type: Panel Mount
  • Item QTY: 1
  • Breaker Frame: 3VA
  • Current Rating: 600A
  • Operating Temperature Maximum Celsius: 70°C


Product Identification
  • UPC: Not available
  • GTIN: Not available
