Siemens 3VA6460-0HN31-0AA0 - Molded Case 600A 480V
Siemens 3VA6460-0HN31-0AA0 - Molded Case 600A 480V

Siemens 3VA6460-0HN31-0AA0 - Molded Case 600A 480V

Siemens
Price
Save $-5,239.60
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

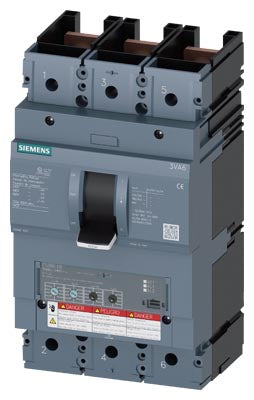

Siemens 3VA6460-0HN31-0AA0 is a 3-pole molded case circuit breaker from the Sentron Series, designed for low voltage distribution protection with an ETU350 electronic trip unit providing LSI (Long Time, Short Time, and Instantaneous) functions. It is rated for 600A continuous current at 480V AC, with a high interrupting capacity of 200kA at 480V AC and Class E breaking capacity. The unit weighs 5.19 lb, features a feed-thru connection and bolt-on mounting, and operates within a temperature range of -13°F to 158°F (-25°C to 70°C). It is UL Listed and certified for robust overload and short circuit protection in industrial environments. Typical applications include low voltage switchboards, panelboards, and motor control centers requiring reliable branch circuit protection.

Key Features & Specifications
  • Manufacturer: Siemens
  • Model: 3VA6460-0HN31-0AA0
  • Item Subcategory: Molded Case
  • Family: Sentron Series
  • Type: 3VA
  • Weight: 5.19 lb
  • Functions: LSI - Long Time, Short Time and Instantaneous
  • Voltage Rating: 480 V AC
  • Poles: 3
  • Connection: Feed-Thru
  • Standards: UL Listed
  • Certification: UL Listed
  • AIC Rating: 200 kA at 480 V
  • Temperature Rating: -13°F to 158°F (-25°C to 70°C)
  • Current Rating: 600 A
  • Frame Type: 3VA6
  • Trip Unit: ETU350 electronic with LSI protection
  • Mounting Type: Bolt-On
  • Breaking Capacity Class: E
