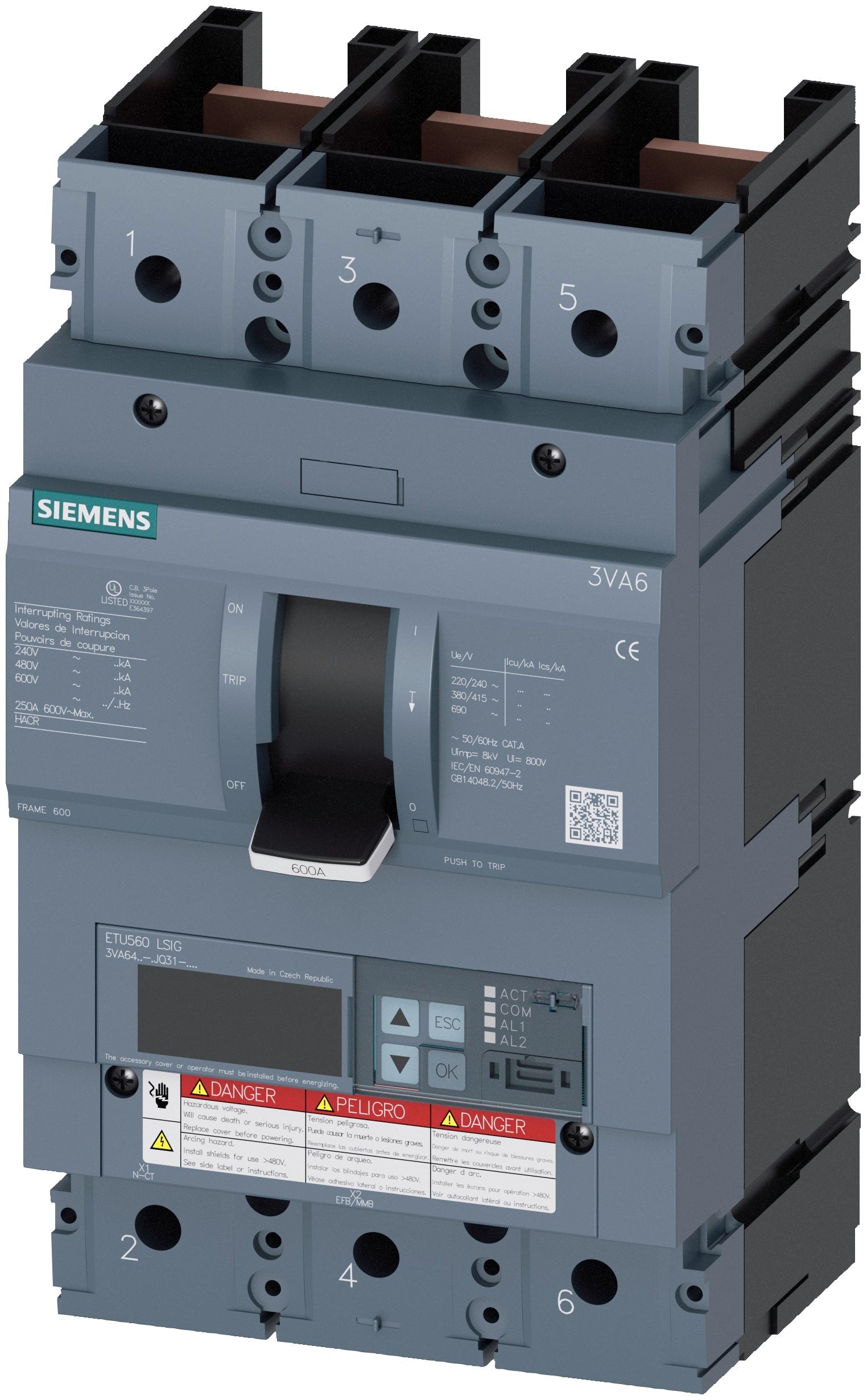

Siemens 3VA64408JQ310AA0 - Molded Case Circuit Breaker 400A 600V (3-Pole LSIG)
Siemens 3VA64408JQ310AA0 - Molded Case Circuit Breaker 400A 600V (3-Pole LSIG)

Siemens 3VA64408JQ310AA0 - Molded Case Circuit Breaker 400A 600V (3-Pole LSIG)

Siemens
Price
Save $-8,665.87
/
Condition
  • Low stock - 2 items left
  • Backordered, shipping soon
Call for Price
Siemens 3VA64408JQ310AA0 is a molded case circuit breaker from the Sentron Series, designed for line protection with an electronic trip unit. It is rated for 400A continuous current at 600V AC, featuring a 3VA64 frame with extremely high (Class L) breaking capacity of 150kA at 480V. This 3-pole unit weighs 11.685 lb, uses a feed-thru connection, and is bolt-on mounted for secure installation. It is UL Listed and certified, with an operating temperature range of -13°F to 158°F (-25°C to 70°C). Typical industrial applications include protecting electrical distribution systems in manufacturing, commercial, and utility settings.

Key Features & Specifications
  • Manufacturer: Siemens
  • Item Subcategory: Molded Case
  • Family: Sentron Series
  • Type: 3VA
  • Weight: 11.685 lb
  • Connection: Feed-Thru
  • Standards: UL Listed
  • Certification: UL Listed
  • Temp Rating: -13°F-158°F (-25°C-70°C)
  • Amperage: 400A
  • Voltage: 600V AC
  • Poles: 3
  • Frame Size: 3VA64
  • Trip Unit: ETU560 LSIG with LCD
  • Breaking Capacity: Class L 150kA @ 480V
  • Mounting: Bolt-on
  • Protection: Line Protection


Part Number: 3VA64408JQ310AA0
