Siemens 3VA61107HL310AA0 - Molded Case Circuit Breaker 100A 3-Pole
Siemens 3VA61107HL310AA0 - Molded Case Circuit Breaker 100A 3-Pole

Siemens 3VA61107HL310AA0 - Molded Case Circuit Breaker 100A 3-Pole

Siemens
Price
Save $2,191
/
Condition
  • Low stock - 2 items left
  • Backordered, shipping soon
Call for Price

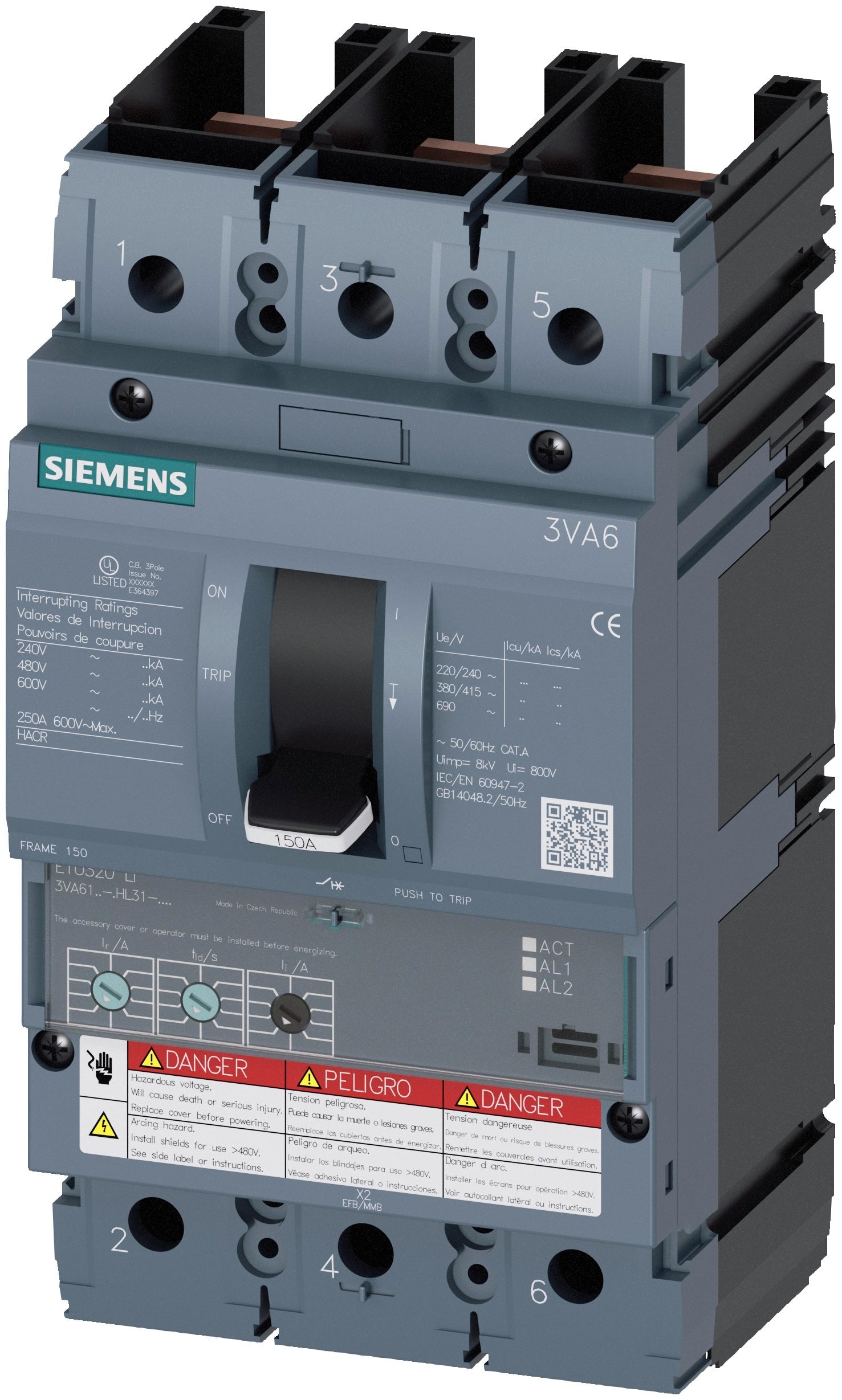

Siemens 3VA61107HL310AA0 is a 3VA6 molded case circuit breaker from the Sentron Series designed for overcurrent protection in industrial power distribution systems. This 100A, 3-pole unit operates at 600V AC with a 35kA interrupting rating at 600V and 100kA at 480V, featuring an ETU320 electronic trip unit with LI protection and adjustable overload from 40A to 100A. The breaker weighs 4.555 lb, uses a feed-thru connection, and is built on the 3VA6 UL Frame 150 with a breaking capacity class C, operating within a temperature range of -13°F to 158°F (-25°C to 70°C). It is UL Listed and certified to UL 489 standards. Typical industrial applications include motor control centers, switchboards, and panelboards requiring reliable circuit protection.

Key Features & Specifications
  • Type: Molded Case
  • Family: Sentron Series
  • Series/Frame: 3VA6 UL Frame 150
  • Amperage: 100A
  • Poles: 3
  • Voltage: 600V AC / 690V
  • Interrupt Rating: 35kA @ 600V, 100kA @ 480V
  • Trip Unit: ETU320, LI
  • Overload Protection: Ir=40A...100A
  • Breaking Capacity Class: C
  • Connection: Feed-Thru
  • Weight: 4.555 lb
  • Temp Rating: -13°F-158°F (-25°C-70°C)
  • Standards: UL Listed, UL 489


Product Identification
  • UPC: 80476630643
  • GTIN: 00804766306433
