Siemens 3VA5560-5EC32-0AA0 - Molded Case 600A 690V AC
Siemens 3VA5560-5EC32-0AA0 - Molded Case 600A 690V AC

Siemens 3VA5560-5EC32-0AA0 - Molded Case 600A 690V AC

Siemens
Price
Save $3,593.02
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

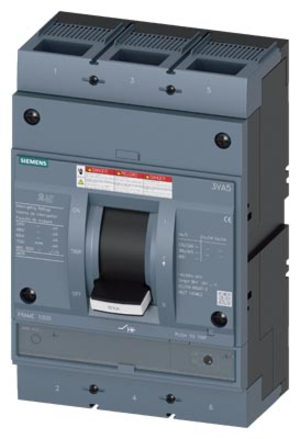

Siemens 3VA5560-5EC32-0AA0 is a 3VA molded case circuit breaker from the Sentron Series, designed for LI (long-time and instantaneous) protection functions. This 3-pole unit is rated for 600A continuous current at 690V AC, with an AIC rating of 35kA at 480V, and employs a TM230 thermal-magnetic trip type. The breaker measures 14.173 x 9.843 x 7.087 inches and weighs 29.207 lb, with an operating temperature range of -13°F to 158°F (-25°C to 70°C). It is UL Listed and certified, making it suitable for industrial applications requiring reliable overcurrent protection in distribution systems.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Sentron Series, 3VA
  • Voltage Rating: 690V AC
  • Current Rating: 600A
  • Dimensions: 14.173 x 9.843 x 7.087 inch
  • Standards: UL Listed
  • Applications: Industrial overcurrent protection
  • Poles: 3
  • Trip Type: TM230
  • AIC rating: 35kA@480V
  • Functions: LI
  • Temp Rating: -13°F-158°F (-25°C-70°C)
  • Weight: 29.207 lb
  • Country of Origin: Mexico


Product Identification
  • UPC: 804766978258
  • GTIN: 00804766978258
