Siemens 3VA5440-1MH31-0AA0 - Molded Case Breaker 400A 3-Pole
Siemens 3VA5440-1MH31-0AA0 - Molded Case Breaker 400A 3-Pole

Siemens 3VA5440-1MH31-0AA0 - Molded Case Breaker 400A 3-Pole

Siemens
Price
Save $-3,569.08
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

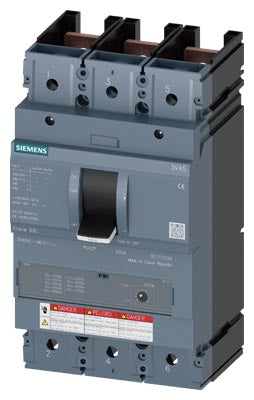

Siemens 3VA5440-1MH31-0AA0 is a 3-pole molded case circuit breaker from the Sentron Series, designed for thermal magnetic protection in industrial power distribution systems. It is rated for 400A current with an interrupting capacity of 100kA at 480V, operating on a 3-phase system within a temperature range of -13°F to 158°F (-25°C to 70°C). The unit weighs 5.19 lb and is compatible with 3VA54 frames, featuring a compact molded case construction for panelboard or switchboard installation. This breaker is UL Listed, ensuring compliance with North American safety and performance standards. It is typically applied in commercial and industrial settings for feeder and main circuit protection in distribution panels, motor control centers, and switchgear assemblies.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection
  • Voltage Rating: 480V AC
  • Current Rating: 400A
  • Dimensions: Not specified
  • Standards: UL Listed
  • Applications: Industrial power distribution, feeder protection, main breaker applications
  • Switch Type: Not specified
  • Configuration: 3-Pole, 3-Phase
  • Coil Voltage Maximum: Not specified
  • Temp Rating: -13°F to 158°F (-25°C to 70°C)
  • Shipping Dimensions: Not specified
  • Phase: 3
  • Voltage: 480V
  • Amperage: 400A
  • AIC rating: 100kA@480V
  • Connection: Not specified
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: Overcurrent and short-circuit protection
  • Frame Size: 3VA54
  • Trip Type: Thermal Magnetic
  • Panel Type: Not specified
  • Breaker Type: Molded Case
  • Control Voltage Minimum: Not specified
  • Control Voltage Maximum: Not specified
  • MCM Size: Not specified
  • Metal Type: Not specified
  • Panel Style: Not specified
  • Bus Type: Not specified
  • Fuse Class: Not specified
  • Insulation Temperature: Not specified
  • Inductance: Not specified
  • Impedance: Not specified
  • Barrels: Not specified
  • Class Rating: Not specified
  • Diameter: Not specified
  • Velocity: Not specified
  • Clip Center: Not specified
  • Clas: Not specified
  • Mounting: Not specified
  • Hz: Not specified
  • Coil Material: Not specified
  • Horse Power: Not specified
  • Aux Contacts: Not specified
  • CPT: Not specified
  • Full Load Amps: Not specified
  • Dist Voltage: Not specified
  • Bucket Size: Not specified
  • Bucket Style: Not specified
  • Bucket Type: Not specified
  • Full Load Amp Maximum: Not specified
  • Full Load Amp Minimum: Not specified
  • Enclosure: Not specified
  • Relay Style: Not specified
  • Coil Voltage Minimum: Not specified
  • Wire: Not specified
  • Amperage Maximum: Not specified
  • Amperage Minimum: Not specified
  • Nema Rating: Not specified
  • Switch Style: Not specified
  • Wire Size: Not specified
  • Certification: UL Listed
  • Circuit Breaker Mounting Style: Not specified
  • Terminal Connection: Not specified
  • Frequency Rating: Not specified
  • Phase Connection: Not specified
  • Standards: UL Listed
  • Compatible Frames: 3VA54
  • Installation Type: Not specified
  • Item QTY: Not specified
  • Nema Starter Size: Not specified
  • Breaker Frame: 3VA54
  • Current Rating: 400A
  • Reverse Standoff Voltage: Not specified
  • Watts: Not specified
  • Peak Pulse Current: Not specified
  • Breakdown Voltage (MIN VBR@IT ) (V): Not specified
  • Breakdown Voltage (VBR@IT) (V): Not specified
  • Polarity: Not specified
  • Operating Temperature Maximum Celsius: 70°C
  • Max Clamp Voltage: Not specified
  • On-State Current: Not specified


Product Identification
  • UPC: 80476679222
  • GTIN: 00804766792229
