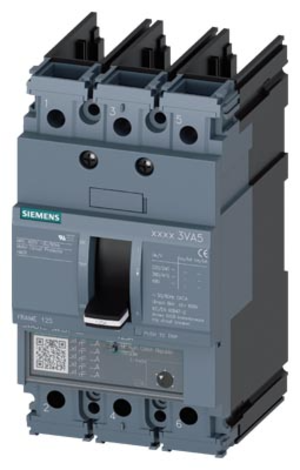

Siemens 3VA5195-1MH31-0AA0 - Molded Case Breaker 15A 690V AC
Siemens 3VA5195-1MH31-0AA0 - Molded Case Breaker 15A 690V AC

Siemens 3VA5195-1MH31-0AA0 - Molded Case Breaker 15A 690V AC

Siemens
Price
Save $93.09
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens 3VA5195-1MH31-0AA0 is a 3-pole molded case circuit breaker from the Sentron Series designed for magnetic-only protection in industrial power distribution systems. It is rated for 15A continuous current at 690V AC with a high interrupting capacity of 65kA at 480V, utilizing a TM120M trip unit for precise overcurrent response. The unit measures 5.906 x 3.622 x 4.567 inches, weighs 2.094 lb, and features a feed-thru connection configuration with a compact 3VA frame. This breaker is UL Listed and certified for use in three-phase systems, operating reliably within a temperature range of -13°F to 158°F (-25°C to 70°C). Typical applications include motor branch circuits, control panels, and industrial machinery requiring short-circuit protection without overload sensing.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Sentron Series, 3VA frame, magnetic-only protection
  • Voltage Rating: 690V AC
  • Current Rating: 15A
  • Dimensions: 5.906 x 3.622 x 4.567 inch
  • Standards: UL Listed
  • Applications: Industrial power distribution, motor protection, control panels
  • Switch Type: Circuit breaker
  • Configuration: 3-pole, 3-phase
  • Temp Rating: -13°F to 158°F (-25°C to 70°C)
  • Phase: 3
  • Voltage: 690V AC
  • Amperage: 15A
  • AIC rating: 65kA@480V
  • Connection: Feed-Thru
  • Poles: 3
  • Protection: Magnetic Only
  • Trip Type: TM120M
  • Frame Size: 3VA
  • Breaker Type: Molded Case
  • Circuit Breaker Mounting Style: Fixed
  • Terminal Connection: Feed-Thru
  • Frequency Rating: 50/60 Hz
  • Phase Connection: 3-phase
  • Standards: UL Listed
  • Installation Type: Panel mount
  • Breaker Frame: 3VA
  • Current Rating: 15A
  • Operating Temperature Maximum Celsius: 70°C
  • Weight: 2.094 lb
  • Country of Origin: Mexico


Product Identification
  • UPC: 804766301148
  • GTIN: 804766301148
