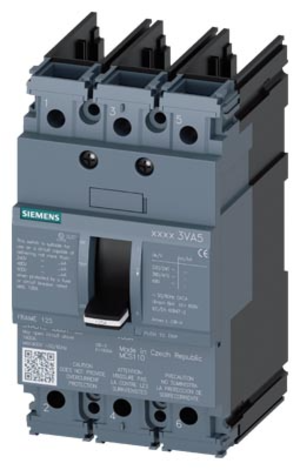

Siemens 3VA5135-6ED31-0AA0 - Molded Case 35A 3-Pole Breaker
Siemens 3VA5135-6ED31-0AA0 - Molded Case 35A 3-Pole Breaker

Siemens 3VA5135-6ED31-0AA0 - Molded Case 35A 3-Pole Breaker

Siemens
Price
Save $722.33
/
Condition
  • Low stock - 5 items left
  • Backordered, shipping soon
Call for Price
Siemens 3VA5135-6ED31-0AA0 is a 3-pole thermal magnetic molded case circuit breaker from the Sentron Series, designed to provide LI (long-time and instantaneous) protection for industrial power distribution systems. This unit is rated for 35 amps at 690V AC with a high interrupting capacity of 65kA at 480V, utilizing a TM210 trip unit for reliable overload and short-circuit protection. The breaker features a compact 3VA5 UL Frame 125 design with feed-thru connections, measures 5.906 x 3.622 x 4.567 inches, and weighs 2.021 lb, supporting bolt-on mounting and an operating temperature range of -13°F to 158°F (-25°C to 70°C). It is UL Listed and certified for use in commercial and industrial applications requiring robust circuit protection. Typical applications include motor control centers, panelboards, and switchgear in manufacturing facilities and commercial buildings.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker
  • Manufacturer: Siemens
  • Series: Sentron Series
  • Model: 3VA5135-6ED31-0AA0
  • Poles: 3
  • Current Rating: 35 A
  • Voltage Rating: 690V AC
  • Interrupt Rating: 65 kA @ 480 V
  • Protection Type: Thermal Magnetic
  • Trip Unit: TM210, FTFM
  • Functions: LI
  • Frame Type: 3VA5 UL Frame 125
  • Mounting Type: Bolt-On
  • Connection: Feed-Thru
  • Phase: 3
  • Dimensions: 5.906 x 3.622 x 4.567 inch
  • Weight: 2.021 lb
  • Temperature Rating: -13°F to 158°F (-25°C to 70°C)
  • Standards: UL Listed
  • Certification: UL Listed
  • Country of Origin: Mexico


Product Identification
  • UPC: 804766300486
  • GTIN: 00804766300486
