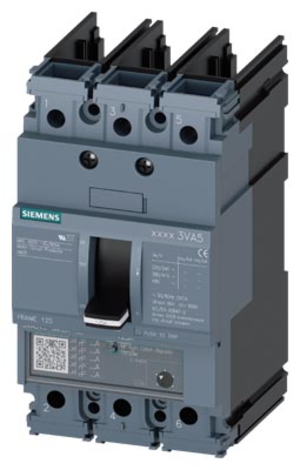

Siemens 3VA51251MH310AA0 - Molded Case 25A 690VAC (3-Pole)
Siemens 3VA51251MH310AA0 - Molded Case 25A 690VAC (3-Pole)

Siemens 3VA51251MH310AA0 - Molded Case 25A 690VAC (3-Pole)

Siemens
Price
Save $-614.25
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens 3VA51251MH310AA0 is a 3-pole molded case circuit breaker from the Sentron Series, designed for motor circuit protection with a thermal-magnetic trip unit. This 25-amp breaker handles up to 690 VAC and provides an interrupting rating of 65kA at 480V. It features a fixed-mounted design with a lever actuator, weighs 2.061 lb, and operates within a temperature range of -13°F to 158°F (-25°C to 70°C). The unit is UL Listed and certified to UL 489, IEC 60947-2, and CSA 22.2 standards. Typical industrial applications include motor branch circuit protection in manufacturing and process control environments.

Key Features & Specifications
  • Type: Molded Case
  • Amperage: 25A
  • Voltage Rating: 690 VAC
  • Number of Poles: 3
  • Frame Series: 3VA51
  • Trip Unit: Thermal-Magnetic
  • Mounting Type: Fixed-mounted
  • Interrupt Rating: 65kA at 480V
  • Actuator Type: Lever
  • Standards: UL Listed
  • Certifications: UL 489, IEC 60947-2, CSA 22.2
  • Temp Rating: -13°F-158°F (-25°C-70°C)
  • Weight: 2.061 lb


Product Identification
  • UPC: 804766301216
