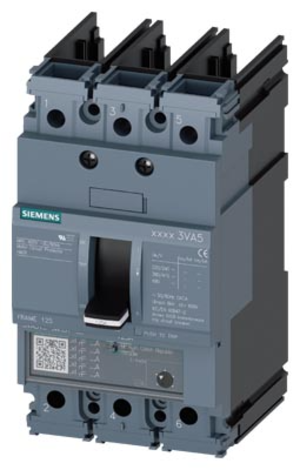

Siemens 3VA5107-1MU31-0AA0 - Molded Case Breaker 7A 690V AC
Siemens 3VA5107-1MU31-0AA0 - Molded Case Breaker 7A 690V AC

Siemens 3VA5107-1MU31-0AA0 - Molded Case Breaker 7A 690V AC

Siemens
Price
Save $-748.34
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens 3VA5107-1MU31-0AA0 is a 3-pole molded case circuit breaker from the Sentron Series, designed for overcurrent protection in industrial power distribution systems. It is rated for 7A continuous current and 690V AC voltage, with a high interrupting capacity of 65kA at 480V AC. The unit features a compact footprint of 5.945 x 3.386 x 4.803 inches and weighs 2.039 lb, utilizing a TM120M thermal-magnetic trip mechanism for reliable short-circuit and overload protection. This breaker is UL Listed and certified, operating within a temperature range of -13°F to 158°F (-25°C to 70°C), and is compatible with 3VA5 frames for modular installation. Typical applications include motor control centers, panelboards, and switchgear in manufacturing, commercial, and utility environments.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, thermal-magnetic trip, 3VA series
  • Voltage Rating: 690V AC
  • Current Rating: 7A
  • Dimensions: 5.945 x 3.386 x 4.803 inch
  • Standards: UL Listed
  • Applications: Industrial power distribution, motor protection, panelboards
  • Poles: 3
  • AIC rating: 65kA@480V
  • Trip Type: TM120M
  • Temp Rating: -13°F-158°F (-25°C-70°C)
  • Functions: I
  • Family: Sentron Series
  • Compatible Frames: 3VA5
  • Country of Origin: Mexico


Product Identification
  • UPC: 804766777165
  • GTIN: 00804766777165
