Siemens 3VA4160-5ED24-0AA0 - Molded Case Circuit Breaker 60A
Siemens 3VA4160-5ED24-0AA0 - Molded Case Circuit Breaker 60A

Siemens 3VA4160-5ED24-0AA0 - Molded Case Circuit Breaker 60A

Siemens
Price
Save $-310.26
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

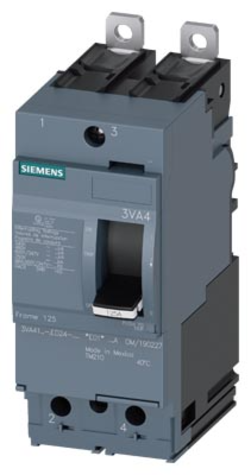

Siemens 3VA4160-5ED24-0AA0 is a 2-pole molded case circuit breaker from the Sentron Series designed for thermal magnetic overcurrent protection in industrial power distribution systems. This 60A rated breaker operates at 480V AC with a 35kA interrupting capacity and utilizes a TM210 trip unit for fixed thermal and fixed magnetic line protection. The unit features a compact 6.614 x 5.315 x 2.283 inch footprint, weighs 1.133 lb, and employs a bolt-on mounting with load side lug terminals for secure installation. It is UL Listed and certified for use in single-phase applications across a temperature range of -13°F to 158°F (-25°C to 70°C). Typical applications include branch circuit protection in commercial and industrial panelboards, switchboards, and motor control centers requiring reliable overcurrent interruption.

Key Features & Specifications
  • Type: Molded Case
  • Family: Sentron Series
  • Current Rating: 60A
  • Voltage Rating: 480V AC
  • Poles: 2
  • Interrupt Rating: 35kA at 480V
  • Frame Size: 125
  • Trip Unit: TM210 Thermal Magnetic
  • Protection: Thermal Magnetic
  • Functions: LI
  • Connection: Bolt-On
  • Terminal Connection: Load Side Lug
  • Phase: 1
  • Dimensions: 6.614 x 5.315 x 2.283 inch
  • Weight: 1.133 lb
  • Temp Rating: -13°F-158°F (-25°C-70°C)
  • Standards: UL Listed
  • Certification: UL Listed
  • Country of Origin: Mexico


Product Identification
  • UPC: 804766943102
  • GTIN: 00804766943102
