Siemens 3VA4150-4ED14-0AA0 - Molded Case Breaker 50A 1-Pole
Siemens 3VA4150-4ED14-0AA0 - Molded Case Breaker 50A 1-Pole

Siemens 3VA4150-4ED14-0AA0 - Molded Case Breaker 50A 1-Pole

Siemens
Price
Save $247.26
/
Condition
  • Low stock - 4 items left
  • Backordered, shipping soon
Call for Price

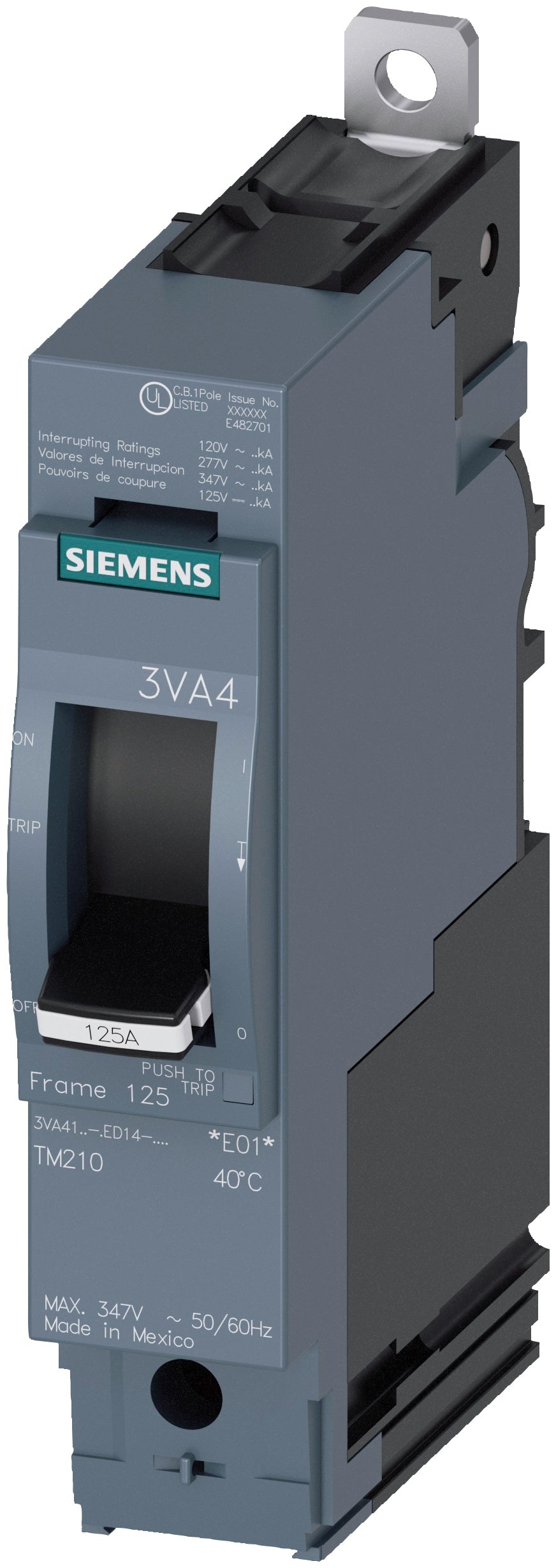

Siemens 3VA4150-4ED14-0AA0 is a 1-pole molded case circuit breaker from the Sentron Series, designed for thermal magnetic protection (LI functions) in branch circuits. It is rated for 50A continuous current at 480V AC, with an interrupting capacity of 25kA at 277V, and features a TM210 trip type for precise overload and short-circuit response. The unit measures 6.614 x 5.315 x 1.339 inches, weighs 0.617 lb, and uses a bolt-on connection with load side lugs, housed in a 125A frame. It is UL Listed and certified, operating within a temperature range of -13°F to 158°F (-25°C to 70°C). This breaker is suitable for single-phase industrial applications requiring reliable overcurrent protection in panelboards and distribution equipment.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic, 1-Pole
  • Voltage Rating: 480V AC
  • Current Rating: 50A
  • Dimensions: 6.614 x 5.315 x 1.339 inch
  • Standards: UL Listed
  • Applications: Single-phase industrial branch circuit protection
  • Switch Type: Circuit Breaker
  • Configuration: Bolt-On
  • Coil Voltage Maximum: Not applicable
  • Temp Rating: -13°F-158°F (-25°C-70°C)
  • Shipping Dimensions: 6.614 x 5.315 x 1.339 inch
  • Phase: 1
  • Voltage: 480V AC
  • Amperage: 50A
  • AIC rating: 25kA@277V
  • Connection: Bolt-On
  • Poles: 1
  • Protection: Thermal Magnetic
  • Functions: LI
  • Frame Size: 125
  • Trip Type: TM210
  • Panel Type: Not specified
  • Breaker Type: Molded Case
  • Control Voltage Minimum: Not applicable
  • Control Voltage Maximum: Not applicable
  • MCM Size: Not applicable
  • Metal Type: Not specified
  • Panel Style: Not specified
  • Bus Type: Not specified
  • Fuse Class: Not applicable
  • Insulation Temperature: Not specified
  • Inductance: Not applicable
  • Impedance: Not applicable
  • Barrels: Not applicable
  • Class Rating: Not applicable
  • Diameter: Not applicable
  • Velocity: Not applicable
  • Clip Center: Not applicable
  • Clas: Not applicable
  • Mounting: Bolt-On
  • Hz: 50/60 Hz
  • Coil Material: Not applicable
  • Horse Power: Not specified
  • Aux Contacts: Not specified
  • CPT: Not specified
  • Full Load Amps: 50A
  • Dist Voltage: Not specified
  • Bucket Size: Not applicable
  • Bucket Style: Not applicable
  • Bucket Type: Not applicable
  • Full Load Amp Maximum: 50A
  • Full Load Amp Minimum: 50A
  • Enclosure: Not specified
  • Relay Style: Not applicable
  • Coil Voltage Minimum: Not applicable
  • Wire: Not specified
  • Amperage Maximum: 50A
  • Amperage Minimum: 50A
  • Nema Rating: Not specified
  • Switch Style: Circuit Breaker
  • Wire Size: Not specified
  • Certification: UL Listed
  • Circuit Breaker Mounting Style: Bolt-On
  • Terminal Connection: Load Side Lug
  • Frequency Rating: 50/60 Hz
  • Phase Connection: Single Phase
  • Standards: UL Listed
  • Compatible Frames: 125A Frame
  • Installation Type: Fixed
  • Item QTY: 1
  • Nema Starter Size: Not applicable
  • Breaker Frame: 125
  • Current Rating: 50A
  • Reverse Standoff Voltage: Not applicable
  • Watts: Not specified
  • Peak Pulse Current: Not applicable
  • Breakdown Voltage (MIN VBR@IT ) (V): Not applicable
  • Breakdown Voltage (VBR@IT) (V): Not applicable
  • Polarity: Not applicable
  • Operating Temperature Maximum Celsius: 70°C
  • Max Clamp Voltage: Not applicable
  • On-State Current: Not applicable


Product Identification
  • UPC: 804766942129
  • GTIN: 00804766942129
