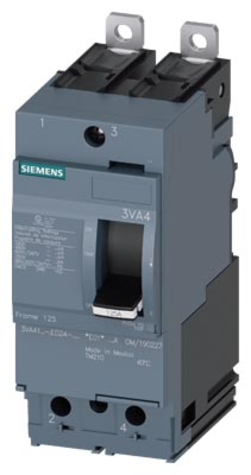

Siemens 3VA4145-6ED24-0AA0 - Molded Case 45A 480V AC Breaker
Siemens 3VA4145-6ED24-0AA0 - Molded Case 45A 480V AC Breaker

Siemens 3VA4145-6ED24-0AA0 - Molded Case 45A 480V AC Breaker

Siemens
Price
Save $-523.83
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
The Siemens 3VA4145-6ED24-0AA0 is a 2-pole molded case circuit breaker from the Sentron Series, designed for thermal magnetic overcurrent protection in industrial power distribution systems. It is rated for 45A at 480V AC with a high interrupting capacity of 65kA at 480V, utilizing a TM210 trip unit for LI (long-time and instantaneous) protection functions. This bolt-on breaker measures 6.614 x 5.315 x 2.283 inches, weighs 1.133 lb, and features load side lug terminals, with an operating temperature range of -13°F to 158°F (-25°C to 70°C). It is UL Listed and certified for single-phase applications, suitable for use in panelboards and switchboards requiring reliable overcurrent protection. Typical industrial applications include motor control centers, lighting panels, and distribution boards where compact, high-interrupting capacity breakers are needed.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic, Bolt-On
  • Voltage Rating: 480V AC
  • Current Rating: 45A
  • Poles: 2
  • Frame Size: 125
  • Trip Type: TM210
  • AIC Rating: 65kA@480V
  • Connection: Bolt-On
  • Terminal Connection: Load Side Lug
  • Functions: LI (Long-Time and Instantaneous)
  • Phase: 1
  • Standards: UL Listed
  • Certification: UL Listed
  • Temp Rating: -13°F to 158°F (-25°C to 70°C)
  • Dimensions: 6.614 x 5.315 x 2.283 inch
  • Weight: 1.133 lb
  • Family: Sentron Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 804766943003
  • GTIN: 00804766943003
