Siemens 3VA4140-6ED24-0AA0 - Molded Case Breaker 40A 2-Pole
Siemens 3VA4140-6ED24-0AA0 - Molded Case Breaker 40A 2-Pole

Siemens 3VA4140-6ED24-0AA0 - Molded Case Breaker 40A 2-Pole

Siemens
Price
Save $770.88
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

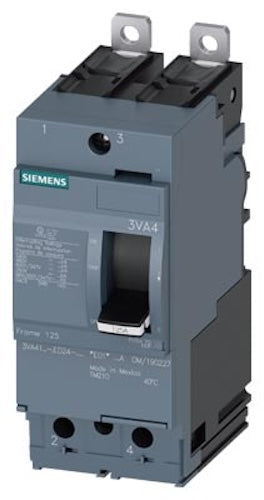

Siemens 3VA4140-6ED24-0AA0 Circuit Breaker The Siemens 3VA4140-6ED24-0AA0 is a 2-pole molded case circuit breaker from the Sentron Series, designed for thermal magnetic protection (LI functions) in industrial power distribution systems. This bolt-on unit is rated for 40A continuous current at 480V AC, single-phase, with a high interrupting capacity of 65kA at 480V AC. The breaker features a 125A frame size, a TM210 trip type, load side lug terminals, and measures 6.614 x 5.315 x 2.283 inches, weighing 1.133 lb. It is UL Listed and certified for use in ambient temperatures ranging from -13°F to 158°F (-25°C to 70°C), making it suitable for applications such as motor control centers, panelboards, and switchboards requiring reliable overcurrent protection.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic, 2-Pole
  • Voltage Rating: 480V AC
  • Current Rating: 40A
  • Dimensions: 6.614 x 5.315 x 2.283 inch
  • Standards: UL Listed
  • Applications: Industrial power distribution, motor control centers, panelboards
  • Switch Type: Circuit Breaker
  • Configuration: 2-Pole
  • Coil Voltage Maximum: Not applicable (thermal magnetic)
  • Temp Rating: -13°F-158°F (-25°C-70°C)
  • Shipping Dimensions: Not specified
  • Phase: 1
  • Voltage: 480V AC
  • Amperage: 40A
  • AIC rating: 65kA@480V
  • Connection: Bolt-On
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: LI (Long-time and Instantaneous)
  • Frame Size: 125
  • Trip Type: TM210
  • Panel Type: Not specified
  • Breaker Type: Molded Case
  • Control Voltage Minimum: Not applicable
  • Control Voltage Maximum: Not applicable
  • MCM Size: Not specified
  • Metal Type: Not specified
  • Panel Style: Not specified
  • Bus Type: Not specified
  • Fuse Class: Not applicable
  • Insulation Temperature: Not specified
  • Inductance: Not specified
  • Impedance: Not specified
  • Barrels: Not specified
  • Class Rating: Not specified
  • Diameter: Not specified
  • Velocity: Not specified
  • Clip Center: Not specified
  • Clas: Not specified
  • Mounting: Bolt-On
  • Hz: Not specified
  • Coil Material: Not applicable
  • Horse Power: Not specified
  • Aux Contacts: Not specified
  • CPT: Not specified
  • Full Load Amps: Not specified
  • Dist Voltage: Not specified
  • Bucket Size: Not specified
  • Bucket Style: Not specified
  • Bucket Type: Not specified
  • Full Load Amp Maximum: Not specified
  • Full Load Amp Minimum: Not specified
  • Enclosure: Not specified
  • Relay Style: Not applicable
  • Coil Voltage Minimum: Not applicable
  • Wire: Not specified
  • Amperage Maximum: 40A
  • Amperage Minimum: Not specified
  • Nema Rating: Not specified
  • Switch Style: Circuit Breaker
  • Wire Size: Not specified
  • Certification: UL Listed
  • Circuit Breaker Mounting Style: Bolt-On
  • Terminal Connection: Load Side Lug
  • Frequency Rating: Not specified
  • Phase Connection: Single-Phase
  • Standards: UL Listed
  • Compatible Frames: 125A Frame
  • Installation Type: Fixed
  • Item QTY: 1
  • Nema Starter Size: Not applicable
  • Breaker Frame: 125
  • Current Rating: 40A
  • Reverse Standoff Voltage: Not applicable
  • Watts: Not specified
  • Peak Pulse Current: Not applicable
  • Breakdown Voltage (MIN VBR@IT ) (V): Not applicable
  • Breakdown Voltage (VBR@IT) (V): Not applicable
  • Polarity: Not applicable
  • Operating Temperature Maximum Celsius: 70°C
  • Max Clamp Voltage: Not applicable
  • On-State Current: Not applicable


Product Identification
  • UPC: 804766942945
  • GTIN: 00804766942945
