Siemens 3RV29011J - Auxiliary Switch 2NO+2NC 10A 690V
Siemens 3RV29011J - Auxiliary Switch 2NO+2NC 10A 690V

Siemens 3RV29011J - Auxiliary Switch 2NO+2NC 10A 690V

Siemens
Price
Save $41.51
/
Condition
  • Low stock - 9 items left
  • Backordered, shipping soon
Call for Price

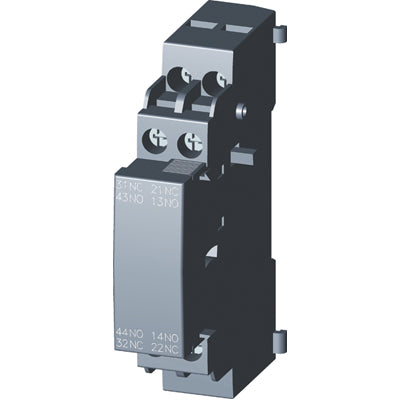

Siemens 3RV29011J is a lateral auxiliary switch designed for motor control and protection applications, providing reliable switching and status indication for SIRIUS 3RV2 circuit breakers. This device features a 2NO+2NC contact configuration with screw terminal connections, rated for 10 A at up to 690 VAC. It measures 3.937 x 3.386 x 1.535 inches and weighs 0.176 lb, with a compact side-mount design compatible with 3RV2 sizes S00, S0, S2, and S3. The switch complies with REACH, RoHS, and WEEE certifications, ensuring adherence to environmental and safety standards. It is typically used in industrial motor control panels and automation systems for auxiliary signaling and control functions.

Key Features & Specifications
  • Manufacturer: Siemens
  • Item Subcategory: Contactors
  • Country of Origin: Romania
  • Dimensions: 3.937 x 3.386 x 1.535 inch
  • Weight: 0.176 lb
  • Voltage Rating: 690 VAC
  • Certification: REACH, RoHS, WEEE
  • Section: Electrical contacts
  • Mounting Type: Lateral (side mount)
  • Contact Configuration: 2NO+2NC
  • Number of Contacts: 4
  • Rated Current: 10 A
  • Connection Type: Screw terminal
  • Compatible Series: 3RV2 S00, S0, S2, S3
  • Operating Temperature: -20°C to +60°C
  • Protection Class: IP20


Product Identification
  • UPC: 662643924763
