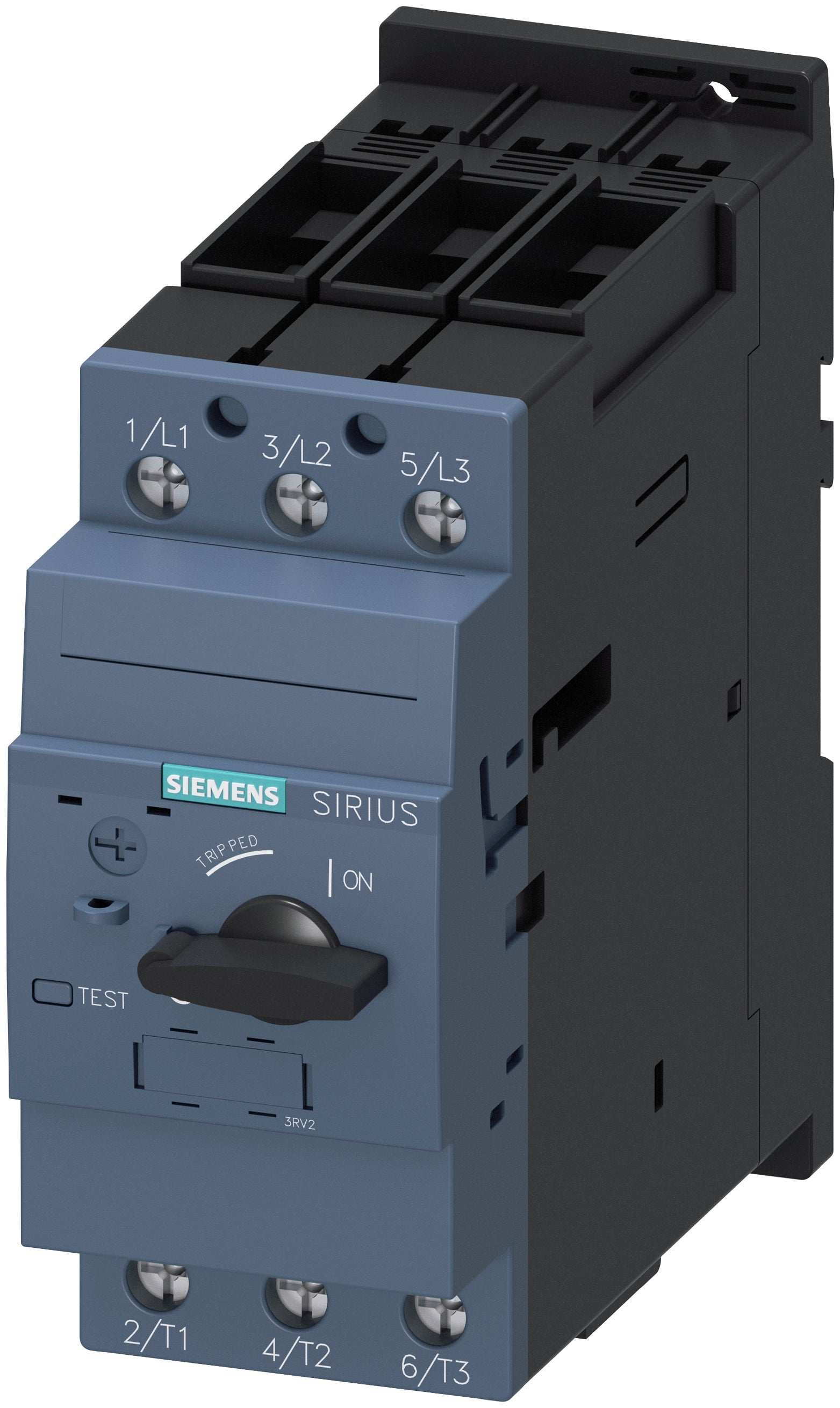

Siemens 3RV20314VB10 - Motor Protection Circuit Breaker 45A 690V (S2 Frame)
Siemens 3RV20314VB10 - Motor Protection Circuit Breaker 45A 690V (S2 Frame)

Siemens 3RV20314VB10 - Motor Protection Circuit Breaker 45A 690V (S2 Frame)

Siemens
Price
Save $393.31
/
Condition
  • Low stock - 1 item left
  • Backordered, shipping soon
Call for Price
Siemens 3RV20314VB10 is a molded case motor protection circuit breaker from the Sirius family, designed to safeguard motors against overloads and short circuits. It operates at a voltage rating of 690V and a current rating of 45 A, with a thermomagnetic trip unit providing Class 20 motor protection. The device measures 5.787 x 2.441 x 6.575 inches, weighs 2.452 lb, and features a compact S2 frame with screw terminal connections, supporting wire sizes from 18 to 3 AWG. It complies with international standards and is rated for an interrupting capacity of 4 kA, with an enclosure rating of IP00/IP20. This circuit breaker is suitable for industrial motor control applications, offering reliable protection in demanding environments.

Key Features & Specifications
  • Type: Molded Case
  • Manufacturer: Siemens
  • Family: Sirius
  • Country of Origin: Germany
  • Dimensions: 5.787 x 2.441 x 6.575 inch
  • Weight: 2.452 lb
  • Voltage Rating: 690 V
  • Amperage: 45 A
  • Poles: 3
  • Frame/Series: S2
  • Trip Unit: Thermomagnetic, Class 20
  • Interrupt Rating: 4 kA
  • Mounting Type: DIN Rail / Snap-On / Threaded
  • Connection Type: Screw Terminal
  • Wire Size Range: 18 to 3 AWG
  • Operating Temperature: -20 to 60 °C
  • Frequency: 50/60 Hz
  • Enclosure Rating: IP00/IP20


Product Identification
  • UPC: 887621920104
