Siemens 3RV20314VA15 - Motor Protection Circuit Breaker 35-45A 690V
Siemens 3RV20314VA15 - Motor Protection Circuit Breaker 35-45A 690V

Siemens 3RV20314VA15 - Motor Protection Circuit Breaker 35-45A 690V

Siemens
Price
Save $356.69
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

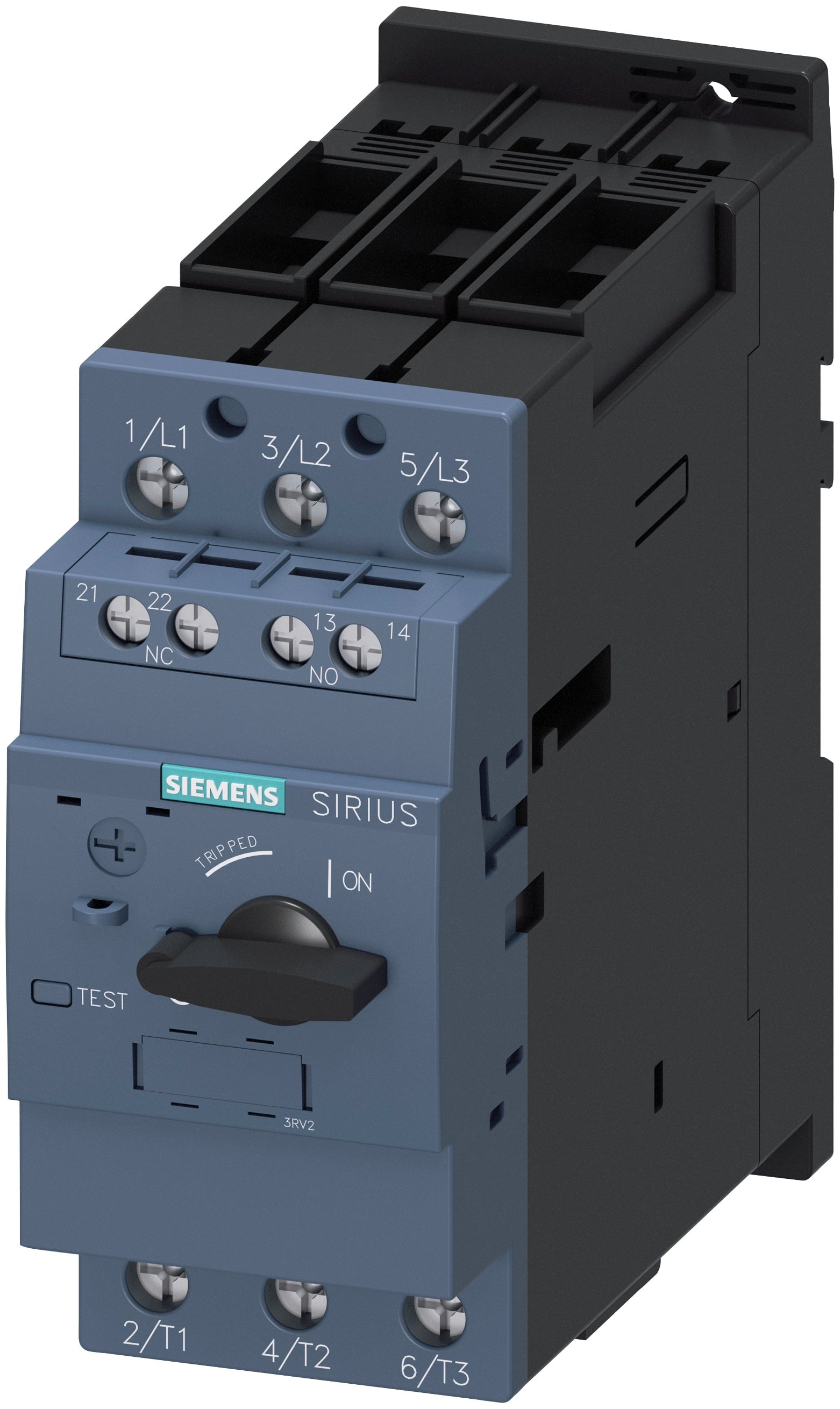

Siemens 3RV20314VA15 is a SIRIUS molded case motor protection circuit breaker designed for safeguarding three-phase motors in industrial environments. This 3-pole device carries a voltage rating of 690 VAC and a current rating adjustable from 35 to 45 A, utilizing a thermal magnetic trip unit for reliable overload and short-circuit protection. The breaker features a compact frame size S2 with dimensions of 6.575 x 5.748 x 2.677 inches, weighs 2.381 lb, and supports screw terminal connections with DIN rail, snap-on, or threaded mounting options. It is manufactured in Germany and complies with IP00/IP20 enclosure ratings, operating effectively within a temperature range of -20 to 60 degrees Celsius. Typical applications include motor protection in automation, panel building, and industrial machinery systems.

Key Features & Specifications
  • Manufacturer: Siemens
  • Family: Sirius
  • Type: 3RV
  • Item Subcategory: Molded Case
  • Country of Origin: Germany
  • Dimensions: 6.575 x 5.748 x 2.677 inch
  • Weight: 2.381 lb
  • Voltage Rating: 690 VAC
  • Amperage Rating: 35 to 45 A
  • Number of Poles: 3
  • Interrupt Rating: 4 kA
  • Frame: S2
  • Trip Unit: Thermal Magnetic
  • Mounting Type: DIN Rail, Snap-On, Threaded
  • Connection Type: Screw Terminals
  • Auxiliary Contacts: 1NO-1NC
  • Enclosure Type: IP00/IP20
  • Operating Temperature: -20 to 60 °C


Product Identification
  • UPC: 887621920098
