Siemens 3RV20314PA10 - Motor Protection Circuit Breaker 690V (28-36A)
Siemens 3RV20314PA10 - Motor Protection Circuit Breaker 690V (28-36A)

Siemens 3RV20314PA10 - Motor Protection Circuit Breaker 690V (28-36A)

Siemens
Price
Save $318.88
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

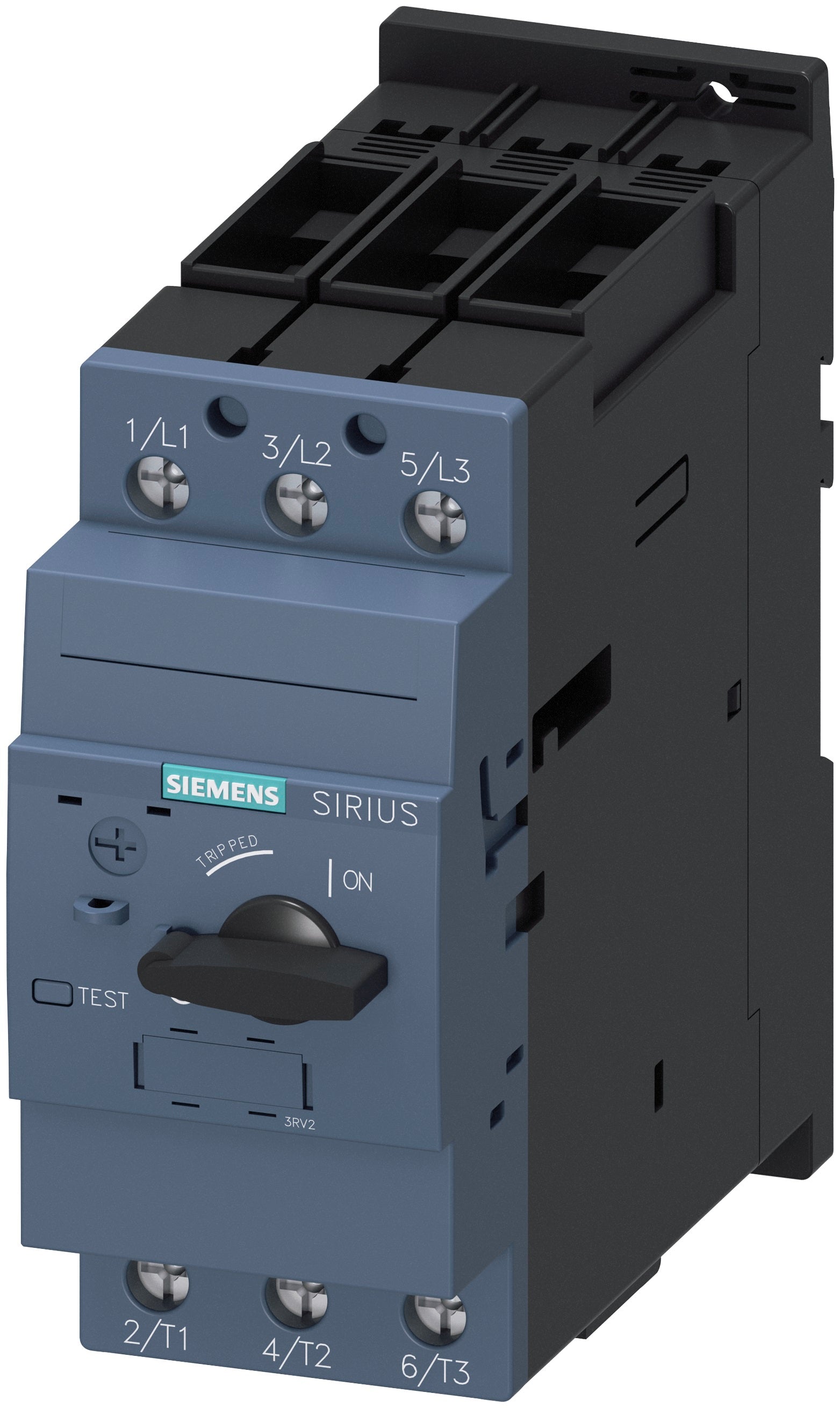

Siemens 3RV20314PA10 is a molded case motor protection circuit breaker from the Sirius family, designed to safeguard industrial motors against overloads and short circuits. It operates at a voltage rating of 690V and features a Class 10 thermal-magnetic trip unit with a current rating of 28 to 36 A, ensuring precise protection for motor circuits. The device measures 5.787 x 2.441 x 6.575 inches, weighs 2.368 lb, and is constructed in an S2 frame with a 3-pole configuration, mounting on a DIN rail via screw terminals for secure connections. It complies with Eclass 27-37-04-01 and ETIM EC000074 standards, and is certified for operation in temperatures from -20 to 60 degrees Celsius. This circuit breaker is typically applied in industrial motor protection circuits requiring reliable overload and short-circuit interruption.

Key Features & Specifications
  • Type: 3RV
  • Item Subcategory: Molded Case
  • Family: Sirius
  • Country of Origin: Germany
  • Dimensions: 5.787 x 2.441 x 6.575 inch
  • Weight: 2.368 lb
  • Voltage Rating: 690V
  • Series: 3RV2
  • Frame: S2
  • Current Rating: 28 to 36 A
  • Number of Poles: 3
  • Interrupt Rating: 4 kA
  • Mounting Type: DIN Rail
  • Connection Type: Screw Terminal
  • Trip Unit: Class 10 Thermal-Magnetic
  • Frequency Rating: 50 to 60 Hz
  • Temperature Rating: -20 to 60 degrees Celsius
  • Certification: Eclass 27-37-04-01, ETIM EC000074, ETIM EC000074 IDEA 4845


Product Identification
  • UPC: 887621919962
