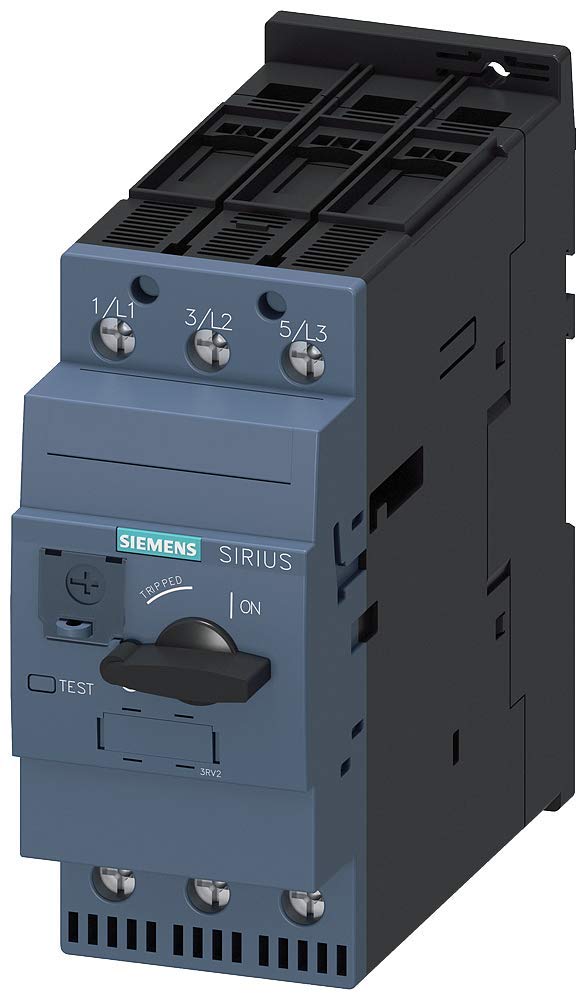

Siemens 3RV20314JA10 - Motor Protection Circuit Breaker 65A 690V
Siemens 3RV20314JA10 - Motor Protection Circuit Breaker 65A 690V

Siemens 3RV20314JA10 - Motor Protection Circuit Breaker 65A 690V

Siemens
Price
Save $343.14
/
Condition
  • Low stock - 4 items left
  • Backordered, shipping soon
Call for Price
Siemens 3RV20314JA10 is a molded case motor protection circuit breaker from the Sirius family, designed to safeguard motor circuits in industrial environments. It operates at a voltage rating of 690V and features a thermomagnetic trip unit with an adjustable trip range of 54 to 65A, providing Class 10 motor protection. The device measures 5.787 x 2.441 x 6.575 inches, weighs 2.604 lb, and is constructed with a rotary actuator and screw terminals, supporting DIN rail, snap-on, or threaded mounting. It complies with Eclass 27-37-04-01 and ETIM EC000074 standards, and is certified with IDEA 4845. This circuit breaker is typically applied in motor control centers and industrial automation systems for reliable overcurrent and short-circuit protection.

Key Features & Specifications
  • Type: 3RV
  • Family: Sirius
  • Item Subcategory: Molded Case
  • Country of Origin: Germany
  • Dimensions: 5.787 x 2.441 x 6.575 inch
  • Weight: 2.604 lb
  • Voltage Rating: 690V
  • Amperage: 65A
  • Poles: 3
  • Interrupt Rating: 4 kA
  • Mounting Type: DIN Rail/Snap-On/Threaded
  • Terminal Type: Screw
  • Frequency: 50/60 Hz
  • Actuator Type: Rotary
  • Enclosure Rating: IP00/IP20
  • Certification: Eclass 27-37-04-01, ETIM EC000074, IDEA 4845


Product Identification
  • UPC: 804766061639
