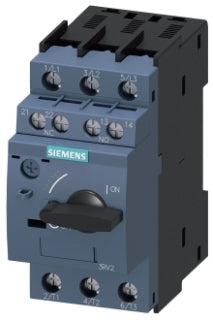

Siemens 3RV20214NA15 - Motor Protection Circuit Breaker 23-28A 690V
Siemens 3RV20214NA15 - Motor Protection Circuit Breaker 23-28A 690V

Siemens 3RV20214NA15 - Motor Protection Circuit Breaker 23-28A 690V

Siemens
Price
Save $322.96
/
Condition
  • Low stock - 3 items left
  • Backordered, shipping soon
Call for Price
Siemens 3RV20214NA15 is a molded case motor protection circuit breaker from the Sirius family, designed to safeguard motors and electrical systems against overloads and short circuits. This 3-pole device supports a current range of 23 to 28 amps at a voltage rating of 690V AC, with a 4 kA interrupt rating and a thermal magnetic trip unit for precise protection. The unit measures 4.016 x 1.929 x 4.016 inches, weighs 0.873 lb, and features a compact construction with screw terminals and an IP20 enclosure for safe installation. It complies with KC, ISO 13849, and IEC 61508 standards, ensuring reliable performance in demanding industrial environments. Typical applications include motor control centers, conveyor systems, and automated machinery requiring robust circuit protection.

Key Features & Specifications
  • Type: 3RV
  • Item Subcategory: Molded Case
  • Family: Sirius
  • Country of Origin: Germany
  • Dimensions: 4.016 x 1.929 x 4.016 inch
  • Weight: 0.873 lb
  • Voltage Rating: 690 V AC
  • Amperage Rating: 23 to 28 A
  • Number of Poles: 3
  • Interrupt Rating: 4 kA
  • Trip Type: Thermal Magnetic
  • Mounting Type: DIN Rail (35 mm standard rail)
  • Frame/Series: 3RV2/S0
  • Auxiliary Contact: 1NO-1NC
  • Connection Type: Screw terminals
  • Enclosure Type: IP20
  • Operating Temperature: -20 to 60 °C
  • Certifications: KC, ISO 13849, IEC 61508 compliant


Product Identification
  • UPC: 662643924565
