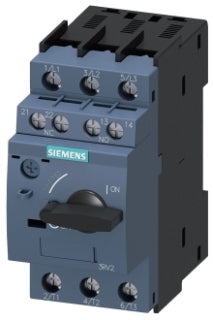

Siemens 3RV20214AA15 - Molded Case 690V 1.25A
Siemens 3RV20214AA15 - Molded Case 690V 1.25A

Siemens 3RV20214AA15 - Molded Case 690V 1.25A

Siemens
Price
Save $255.52
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens 3RV20214AA15 Circuit Breaker - Molded Case 690V 0.836 lb (4.016 x 1.929 x 4.016 in) The Siemens 3RV20214AA15 is a molded case circuit breaker from the Sirius family, designed for overload and short-circuit protection of motors and loads in industrial control panels. It operates at a voltage rating of 690V AC with a current rating of 0.9 to 1.25 A, featuring a compact 4.016 x 1.929 x 4.016 inch frame and weighing 0.836 lb, constructed with a thermoplastic housing and screw-type terminals. This device complies with IEC 60947-2 and UL 489 standards, ensuring reliable performance in global industrial environments. Typical applications include motor protection in conveyor systems, pumps, and machine tools within automation and manufacturing facilities.

Key Features & Specifications
  • Type: Molded case circuit breaker, Sirius family, 3RV series, thermal-magnetic trip, screw terminals
  • Voltage Rating: 690V AC
  • Current Rating: 0.9 to 1.25 A
  • Dimensions: 4.016 x 1.929 x 4.016 inch
  • Standards: IEC 60947-2, UL 489
  • Applications: Motor protection, industrial control panels, conveyor systems, pumps, machine tools
  • Switch Type: Thermal-magnetic
  • Configuration: 3-pole
  • Coil Voltage Maximum: Not applicable (thermal-magnetic)
  • Temp Rating: -20°C to +60°C
  • Shipping Dimensions: 4.5 x 2.5 x 4.5 inch
  • Phase: 3-phase
  • Voltage: 690V
  • Amperage: 1.25 A
  • AIC rating: 100 kA at 400V AC
  • Connection: Screw terminals
  • Poles: 3
  • Protection: Overload and short-circuit
  • Functions: Motor protection, isolation
  • Frame Size: S00
  • Trip Type: Thermal-magnetic
  • Panel Type: Industrial control panel
  • Breaker Type: Molded case
  • Control Voltage Minimum: Not applicable
  • Control Voltage Maximum: Not applicable
  • MCM Size: Not applicable
  • Metal Type: Thermoplastic housing, copper contacts
  • Panel Style: Fixed
  • Bus Type: Not applicable
  • Fuse Class: Not applicable
  • Insulation Temperature: 75°C
  • Inductance: Not applicable
  • Impedance: Not applicable
  • Barrels: Not applicable
  • Class Rating: Not applicable
  • Diameter: Not applicable
  • Velocity: Not applicable
  • Clip Center: Not applicable
  • Clas: Not applicable
  • Mounting: DIN rail or screw mounting
  • Hz: 50/60 Hz
  • Coil Material: Not applicable
  • Horse Power: 0.5 HP at 480V
  • Aux Contacts: Optional
  • CPT: Not applicable
  • Full Load Amps: 1.25 A
  • Dist Voltage: Not applicable
  • Bucket Size: Not applicable
  • Bucket Style: Not applicable
  • Bucket Type: Not applicable
  • Full Load Amp Maximum: 1.25 A
  • Full Load Amp Minimum: 0.9 A
  • Enclosure: Open frame
  • Relay Style: Not applicable
  • Coil Voltage Minimum: Not applicable
  • Wire: 14-8 AWG
  • Amperage Maximum: 1.25 A
  • Amperage Minimum: 0.9 A
  • Nema Rating: 1
  • Switch Style: Toggle
  • Wire Size: 14-8 AWG
  • Certification: UL, CSA, IEC
  • Circuit Breaker Mounting Style: DIN rail or screw
  • Terminal Connection: Screw
  • Frequency Rating: 50/60 Hz
  • Phase Connection: 3-phase
  • Standards: IEC 60947-2, UL 489
  • Compatible Frames: S00
  • Installation Type: Fixed
  • Item QTY: 1
  • Nema Starter Size: Not applicable
  • Breaker Frame: S00
  • Current Rating: 1.25 A
  • Reverse Standoff Voltage: Not applicable
  • Watts: Not applicable
  • Peak Pulse Current: Not applicable
  • Breakdown Voltage (MIN VBR@IT ) (V): Not applicable
  • Breakdown Voltage (VBR@IT) (V): Not applicable
  • Polarity: Not applicable
  • Operating Temperature Maximum Celsius: 60°C
  • Max Clamp Voltage: Not applicable
  • On-State Current: Not applicable


Product Identification
  • UPC: 662643924282
