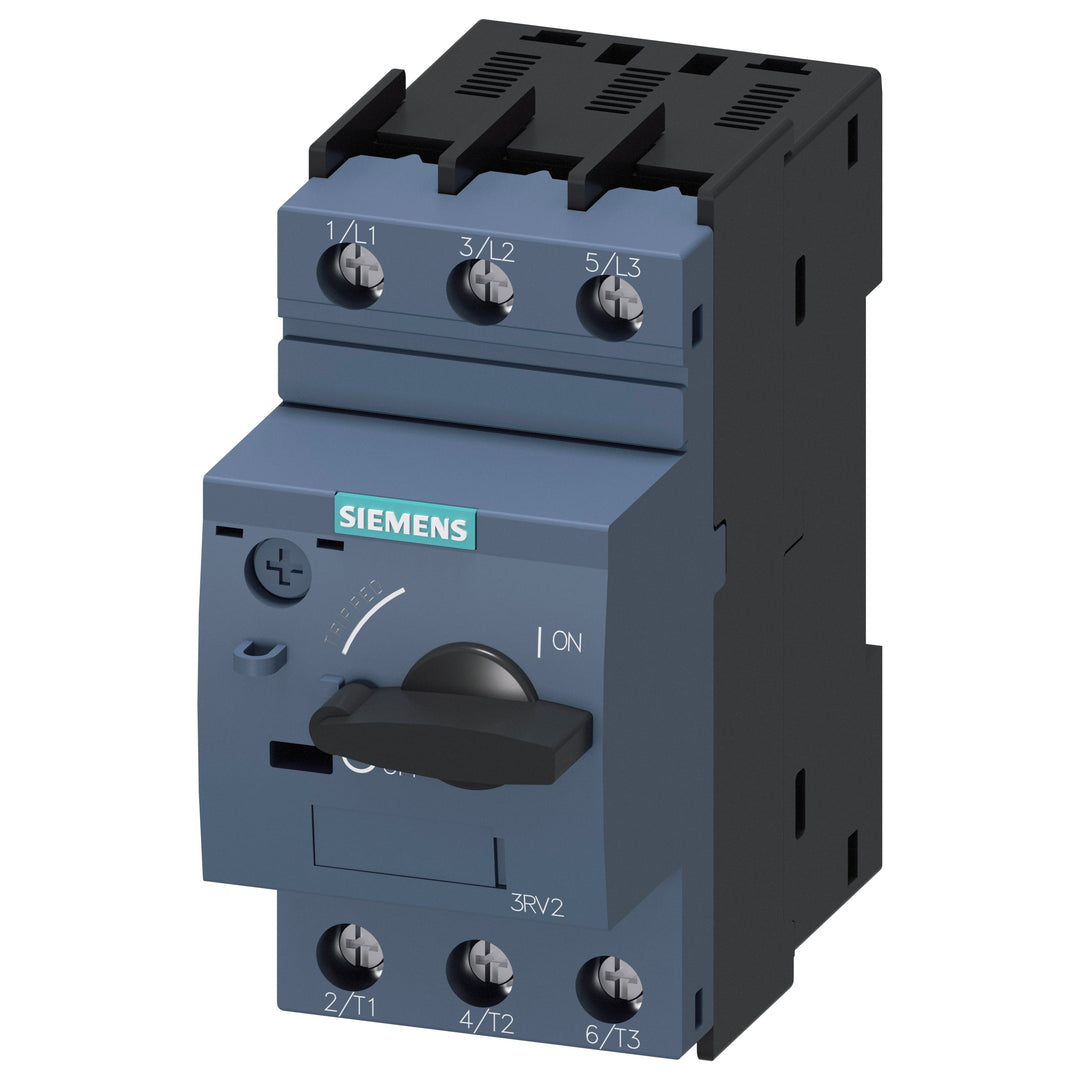

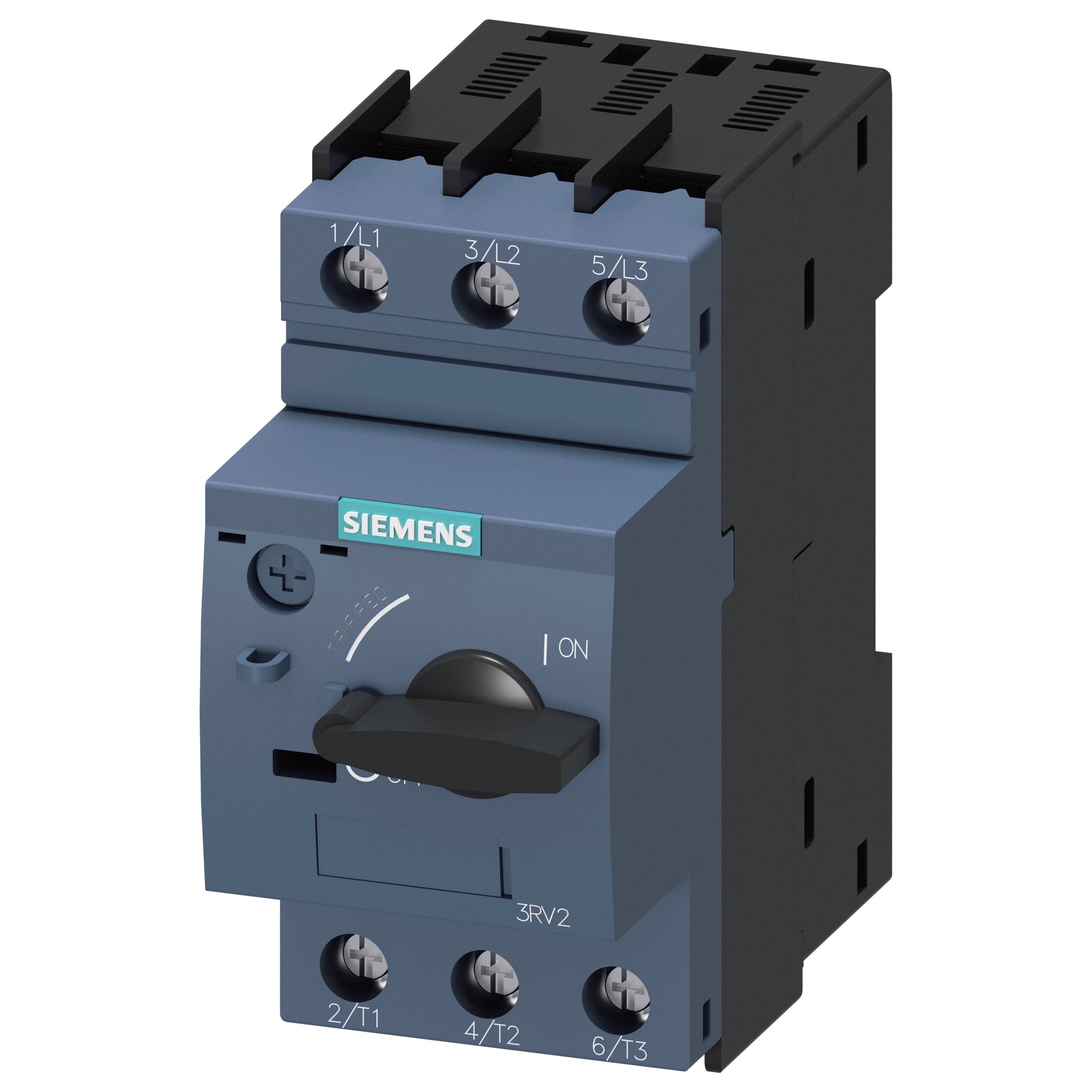

Siemens 3RV20211EA10 - Motor Protection Circuit Breaker 4A 690V
Siemens 3RV20211EA10 - Motor Protection Circuit Breaker 4A 690V

Siemens 3RV20211EA10 - Motor Protection Circuit Breaker 4A 690V

Siemens
Price
Save $163.96
/
Condition
  • Low stock - 1 item left
  • Backordered, shipping soon
Call for Price
Siemens 3RV20211EA10 is a SIRIUS 3RV2 motor protection circuit breaker designed for overload and short-circuit protection in three-phase industrial applications. This thermal/magnetic circuit breaker operates at a voltage rating of 690VAC and features a compact S0 frame with screw terminal connections and DIN rail mounting for straightforward control panel integration. The device measures 4.016 x 1.929 x 4.016 inches and weighs 0.778 lb, with an IP20 enclosure and Class 10 trip unit that minimizes power loss and reduces control cabinet temperatures. It is suitable for ambient temperatures from -20 to 60°C and complies with industry standards for reliable motor protection. Typical applications include protecting motors and feeders in manufacturing, automation, and process control systems.

Key Features & Specifications
  • Type: 3RV
  • Family: Sirius
  • Item Subcategory: Molded Case
  • Country of Origin: Germany
  • Dimensions: 4.016 x 1.929 x 4.016 inch
  • Weight: 0.778 lb
  • Voltage Rating: 690V
  • Amperage: 4A (adjustable 2.8 to 4A overload, 52A magnetic trip)
  • Poles: 3
  • Mounting Type: DIN Rail
  • Interrupt Rating: 6kA
  • Series/Frame: SIRIUS 3RV2, S0 Frame
  • Trip Unit: Thermal/Magnetic (Class 10)
  • Enclosure: IP20
  • Frequency: 50/60Hz
  • Connection: Screw terminal
  • Wire Size: 16 to 12 AWG (overload), 14 to 8 AWG (magnetic)


Product Identification
  • UPC: 004089294221
  • GTIN: 00040892942217
