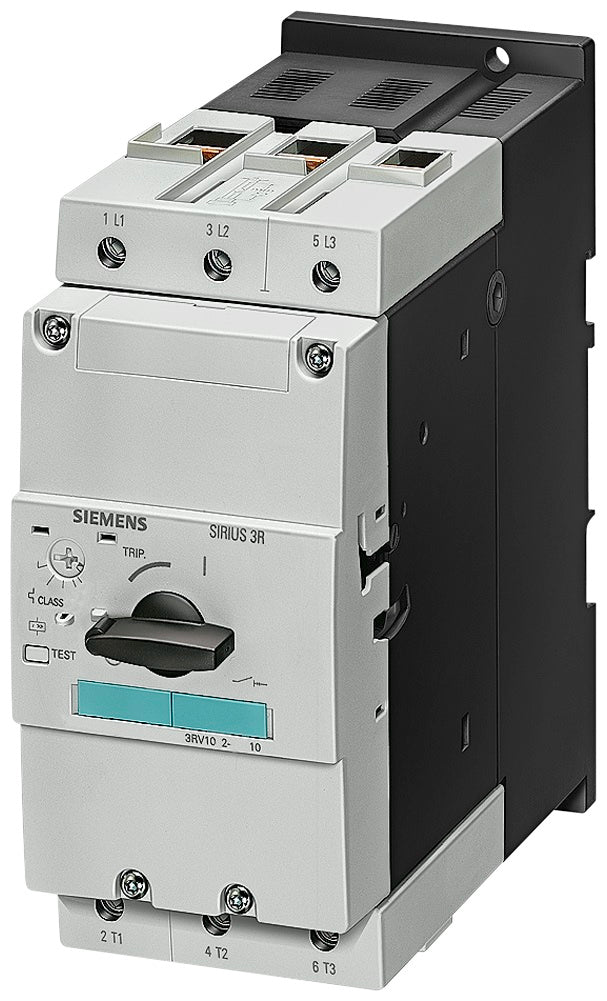

Siemens 3RV1041-4JA10 - Motor Starter 63A (690V AC)
Siemens 3RV1041-4JA10 - Motor Starter 63A (690V AC)

Siemens 3RV1041-4JA10 - Motor Starter 63A (690V AC)

Siemens
Price
Save $531.01
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens 3RV1041-4JA10 is a SIRIUS motor starter and circuit breaker designed for reliable motor protection with adjustable thermal overload and magnetic trip elements. It is rated for 63A current and operates at up to 690V AC, with a short-circuit release of 819A and a maximum breaking capacity of 50 kA at 400V AC. This three-pole device features a NEMA rating of 3, weighs 5 lb, and is constructed for 35mm DIN rail mounting with screw terminals and an IP20 protection class. It complies with Class 10 trip class standards and is suitable for three-phase motor applications in industrial environments. Typical applications include motor control centers and industrial machinery requiring robust overload and short-circuit protection.

Key Features & Specifications
  • Type: Motor Starter
  • Manufacturer: Siemens
  • Model: 3RV1041-4JA10
  • Current Rating: 63A
  • Adjustable Current Range: 45 to 63 Amperes
  • Rated Operating Voltage: 690V AC
  • Short-Circuit Release: 819A
  • Maximum Breaking Capacity: 50 kA at 400V AC
  • Poles: 3
  • Trip Class: Class 10
  • Frame Size: S3
  • Mounting: 35mm DIN Rail
  • Terminal Type: Screw Terminal
  • Protection Class: IP20
  • Power Loss: 20W typical
  • Operating Frequency: 15 operations per hour maximum
  • Nema Rating: 3
  • Weight: 5 lb


Product Identification
  • UPC: 075455440941
  • GTIN: 00754554409412
