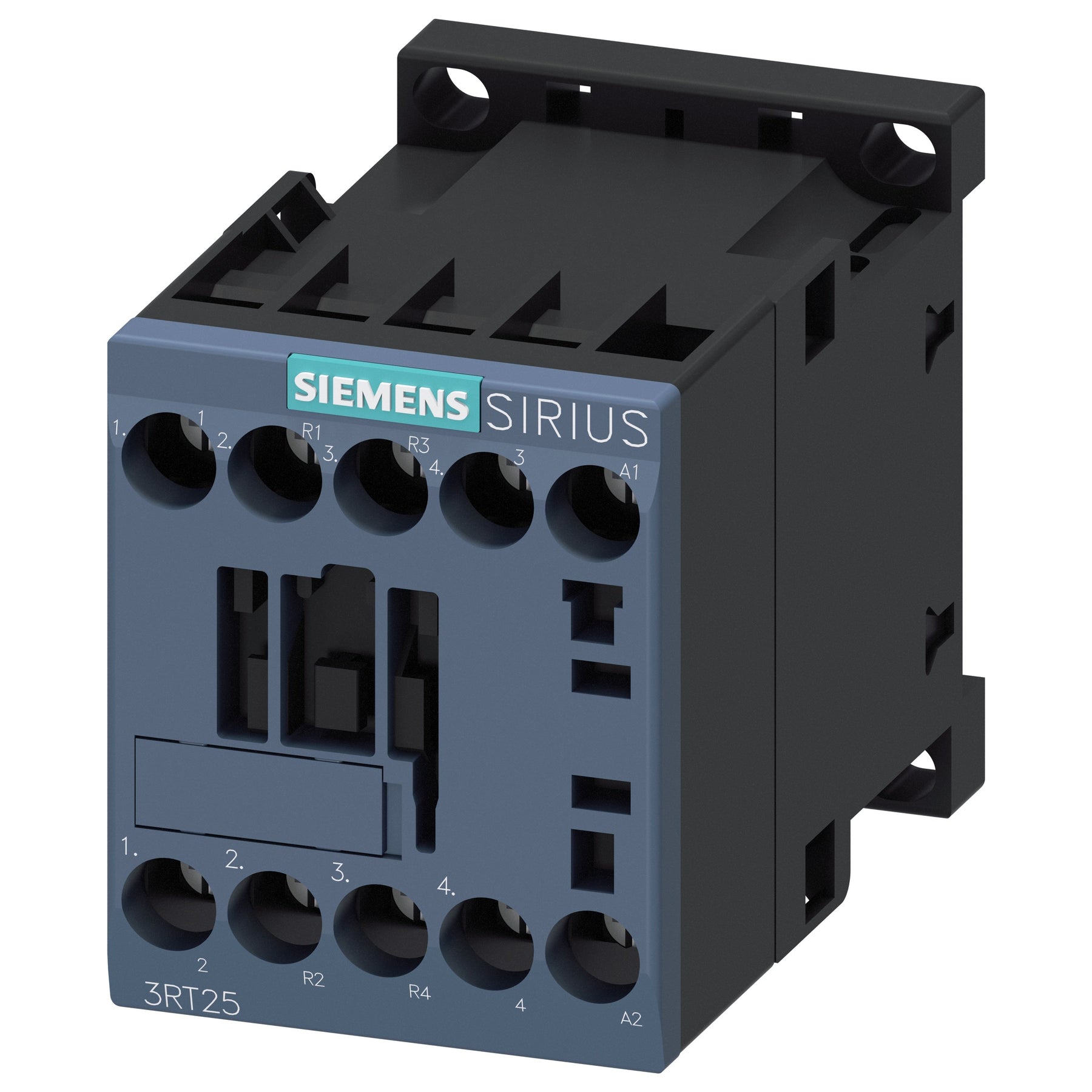

Siemens 3RT25181AK60 - 4-Pole Contactor 16A 110/120V AC
Siemens 3RT25181AK60 - 4-Pole Contactor 16A 110/120V AC

Siemens 3RT25181AK60 - 4-Pole Contactor 16A 110/120V AC

Siemens
Price
Save $102.40
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens 3RT25181AK60 is a 4-pole motor contactor designed for reliable motor control and switching applications. This S00 frame contactor is rated for 16 amperes with a 110/120V AC coil voltage, supporting AC-3 utilization with a 7.5 kW rating at 400 V and an AC-1 rating of 22 A. It features a compact design with dimensions of 2.421 x 1.969 x 3.051 inches, weighs 0.516 lb, and is constructed with screw terminal connections for secure wiring. The contactor complies with REACH Art 33 and WEEE (2012/19/EU) standards, and is manufactured in Germany. It is suitable for industrial motor control applications, including reversing contactor setups, and operates reliably in temperatures from -25°C to 60°C.

Key Features & Specifications
  • Type: Contactor
  • Current Rating: 16 A
  • Number of Poles: 4
  • Coil Voltage: 110/120 V AC, 50/60 Hz
  • Frame Size: S00
  • Power Rating: 7.5 kW at 400 V (AC-3)
  • Contact Configuration: 2 NO + 2 NC auxiliary contacts
  • Mounting Type: DIN rail / vertical mount
  • Terminal Type: Screw terminals
  • Operating Temperature: -25°C to 60°C
  • Coil Power: 43 VA pickup, 6.5 VA holding
  • Enclosure Rating: IP20
  • Operating Cycles: 30,000,000
  • Dimensions: 2.421 x 1.969 x 3.051 inch
  • Weight: 0.516 lb
  • Certification: REACH Art 33, WEEE (2012/19/EU)
  • Country of Origin: Germany


Product Identification
  • UPC: 662643916775
