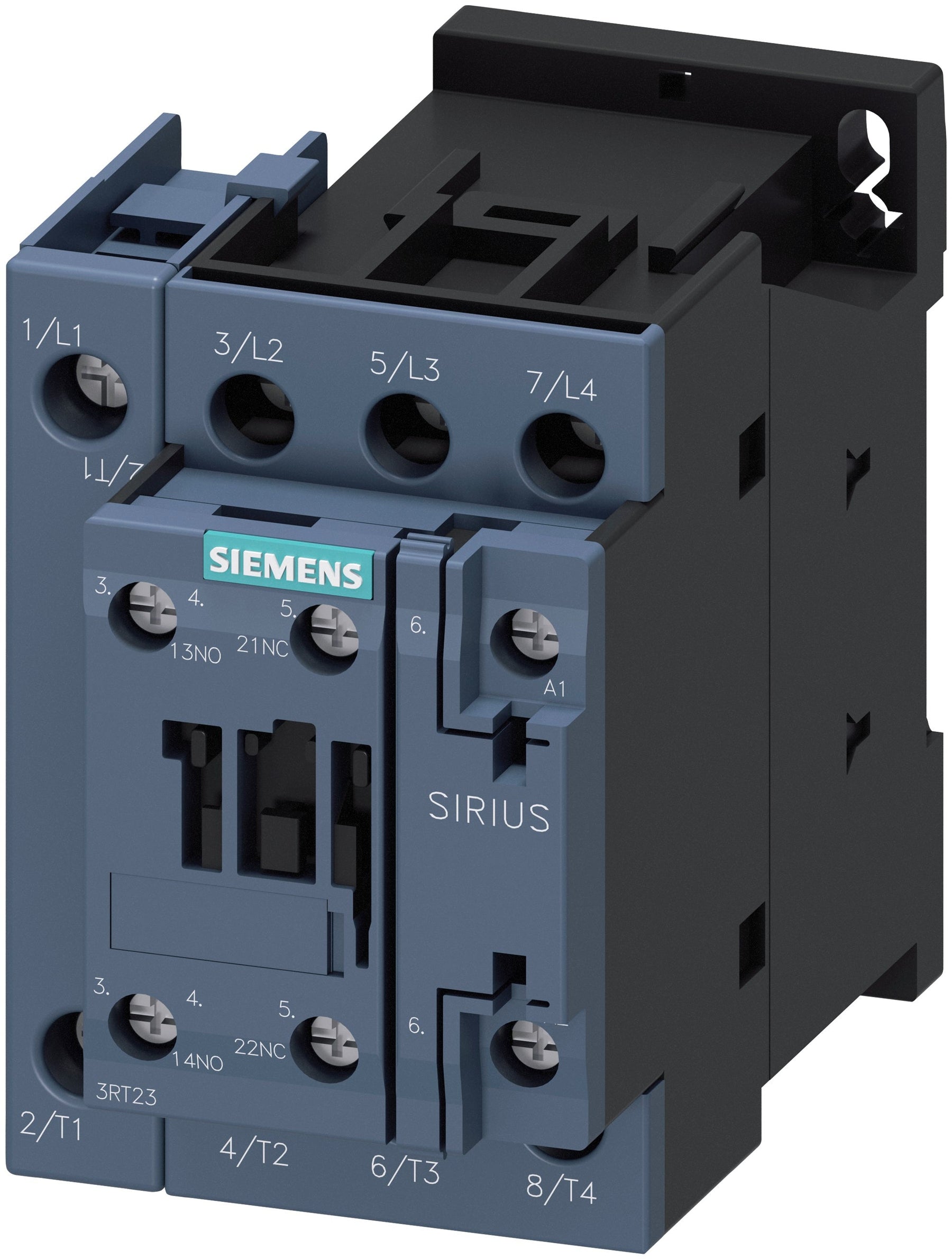

Siemens 3RT23261AK60 - 4-Pole Contactor 40A AC-1 110/120VAC Coil
Siemens 3RT23261AK60 - 4-Pole Contactor 40A AC-1 110/120VAC Coil

Siemens 3RT23261AK60 - 4-Pole Contactor 40A AC-1 110/120VAC Coil

Siemens
Price
Save $140.23
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens 3RT23261AK60 is a SIRIUS contactor designed for motor control and power switching in industrial automation systems. This 4-pole device operates with a 110/120VAC coil at 50/60Hz, rated for 40A in AC-1 and 15.5A in AC-3/AC-4 service at 400V AC. The compact S0 frame measures 3.661 x 3.031 x 5.118 inches and weighs 1.124 lb, featuring screw terminal connections and support for DIN rail, snap-on, or threaded mounting. It complies with REACH Art 33 and WEEE (2012/19/EU) standards, with an IP20 enclosure rating and a mechanical life of 10,000,000 cycles. Typical applications include motor control centers, conveyor systems, and industrial machinery requiring reliable switching and control.

Key Features & Specifications
  • Type: Contactor
  • Manufacturer: Siemens
  • Series/Frame: SIRIUS S0
  • Current Rating: 40A AC-1, 15.5A AC-3/AC-4
  • Voltage Rating: 110/120VAC, 50/60Hz
  • Poles: 4
  • Interrupt Rating: 400V AC
  • Termination: Screw Terminal
  • Mounting Type: DIN Rail, Screw/Snap-On, Vertical
  • Operating Temperature: -25°C to 60°C
  • Operating Cycles: 10,000,000
  • Enclosure: IP20
  • Dimensions: 3.661 x 3.031 x 5.118 inch
  • Weight: 1.124 lb
  • Country of Origin: Germany
  • Certification: REACH Art 33, WEEE (2012/19/EU)


Product Identification
  • UPC: 004089257523
  • GTIN: 00040892575231
