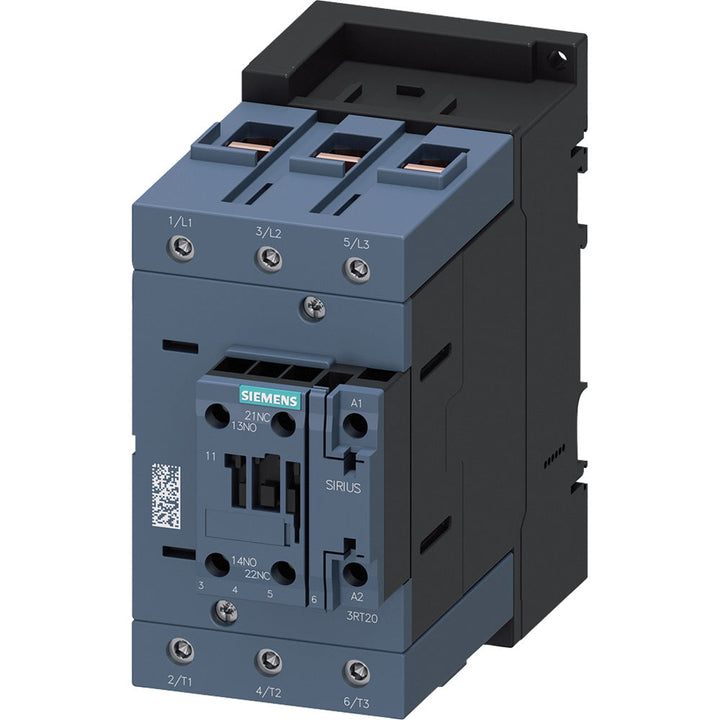

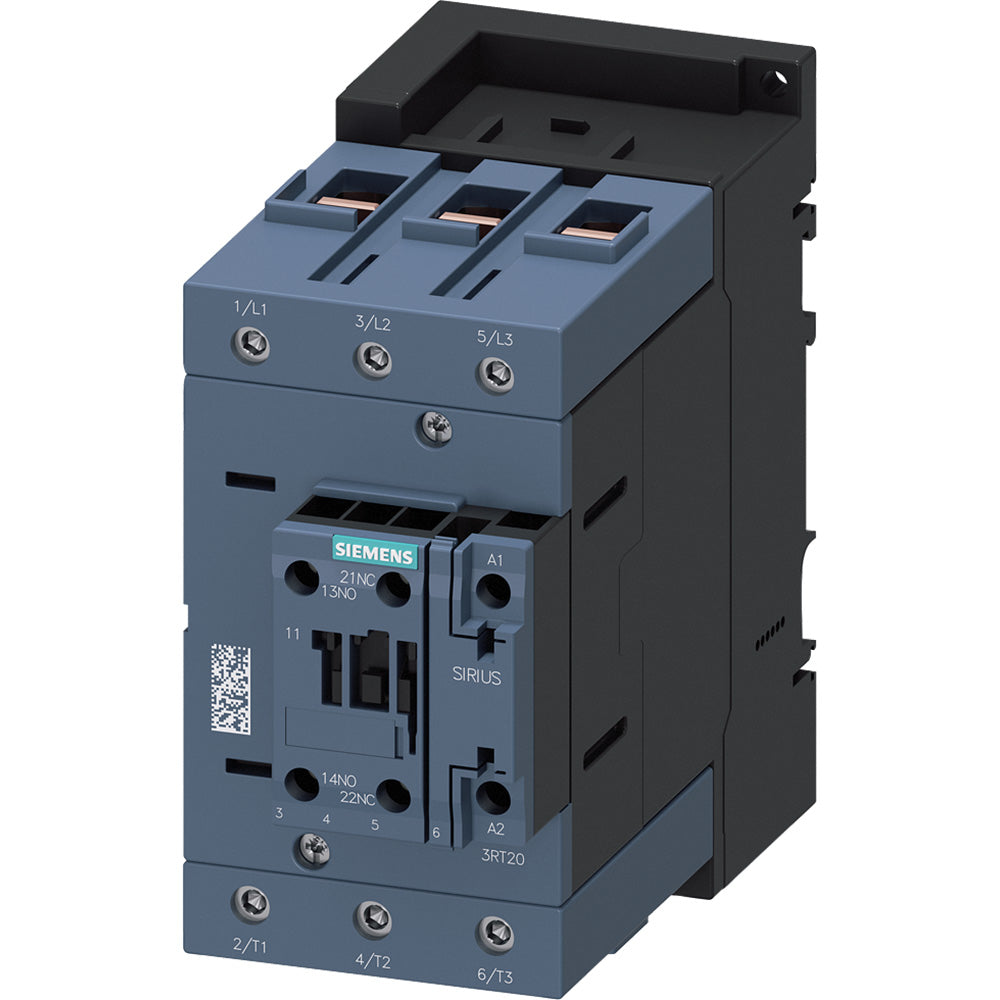

Siemens 3RT20461AK600UA0 - Contactor 40A 110-120VAC
Siemens 3RT20461AK600UA0 - Contactor 40A 110-120VAC

Siemens 3RT20461AK600UA0 - Contactor 40A 110-120VAC

Siemens
Price
Save $-36.75
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens 3RT20461AK600UA0 is a contactor designed for reliable motor control and switching in industrial automation systems. It operates with a coil voltage of 110-120 VAC at 50/60 Hz and is rated for a maximum current of 40 A, supporting three-phase motor loads up to 18.5 kW. The unit measures 3.228 x 6.654 x 6.378 inches, weighs 3.792 lb, and features a compact, modular construction with screw-type terminals for secure wiring. This contactor complies with IEC/EN 60947-4-1 standards and is certified for global use, including UL and CSA listings. It is typically applied in conveyor systems, pump controls, and HVAC equipment within manufacturing and process industries.

Key Features & Specifications
  • Type: Contactors
  • Voltage Rating: 110-120 VAC
  • Current Rating: 40 A
  • Dimensions: 3.228 x 6.654 x 6.378 inch
  • Standards: IEC/EN 60947-4-1, UL, CSA
  • Applications: Motor control, conveyor systems, pump controls, HVAC
  • Switch Type: Contactor
  • Configuration: 3-pole, normally open
  • Coil Voltage Maximum: 120 VAC
  • Temp Rating: -25 to 60 °C
  • Shipping Dimensions: 3.228 x 6.654 x 6.378 inch
  • Phase: 3
  • Voltage: 110-120 VAC
  • Amperage: 40 A
  • AIC rating: Not specified
  • Connection: Screw terminals
  • Poles: 3
  • Protection: Overload relay compatible
  • Functions: Motor switching
  • Frame Size: S0
  • Trip Type: Not applicable
  • Panel Type: Not specified
  • Breaker Type: Not applicable
  • Control Voltage Minimum: 110 VAC
  • Control Voltage Maximum: 120 VAC
  • MCM Size: Not applicable
  • Metal Type: Not specified
  • Panel Style: Not specified
  • Bus Type: Not applicable
  • Fuse Class: Not applicable
  • Insulation Temperature: Not specified
  • Inductance: Not specified
  • Impedance: Not specified
  • Barrels: Not applicable
  • Class Rating: Not applicable
  • Diameter: Not applicable
  • Velocity: Not applicable
  • Clip Center: Not applicable
  • Clas: Not applicable
  • Mounting: DIN rail or screw
  • Hz: 50/60
  • Coil Material: Copper
  • Horse Power: 18.5 kW (25 HP) at 400 V
  • Aux Contacts: 1 NO + 1 NC
  • CPT: Not included
  • Full Load Amps: 40 A
  • Dist Voltage: Not specified
  • Bucket Size: Not applicable
  • Bucket Style: Not applicable
  • Bucket Type: Not applicable
  • Full Load Amp Maximum: 40 A
  • Full Load Amp Minimum: Not specified
  • Enclosure: Open type
  • Relay Style: Not applicable
  • Coil Voltage Minimum: 110 VAC
  • Wire: Not specified
  • Amperage Maximum: 40 A
  • Amperage Minimum: Not specified
  • Nema Rating: Not specified
  • Switch Style: Contactor
  • Wire Size: AWG 14-4
  • Certification: UL, CSA, CE
  • Circuit Breaker Mounting Style: Not applicable
  • Terminal Connection: Screw
  • Frequency Rating: 50/60 Hz
  • Phase Connection: 3-phase
  • Standards: IEC/EN 60947-4-1
  • Compatible Frames: S0
  • Installation Type: Fixed
  • Item QTY: 1
  • Nema Starter Size: Not specified
  • Breaker Frame: Not applicable
  • Current Rating: 40 A
  • Reverse Standoff Voltage: Not applicable
  • Watts: Not specified
  • Peak Pulse Current: Not applicable
  • Breakdown Voltage (MIN VBR@IT ) (V): Not applicable
  • Breakdown Voltage (VBR@IT) (V): Not applicable
  • Polarity: Not applicable
  • Operating Temperature Maximum Celsius: 60 °C
  • Max Clamp Voltage: Not applicable
  • On-State Current: Not applicable


Product Identification
  • UPC: 804766407420
  • GTIN:
