Siemens 3RT20451AP60 - Contactor 40A 110VAC
Siemens 3RT20451AP60 - Contactor 40A 110VAC

Siemens 3RT20451AP60 - Contactor 40A 110VAC

Siemens
Price
Save $-46.37
/
Condition
  • Low stock - 3 items left
  • Backordered, shipping soon
Call for Price

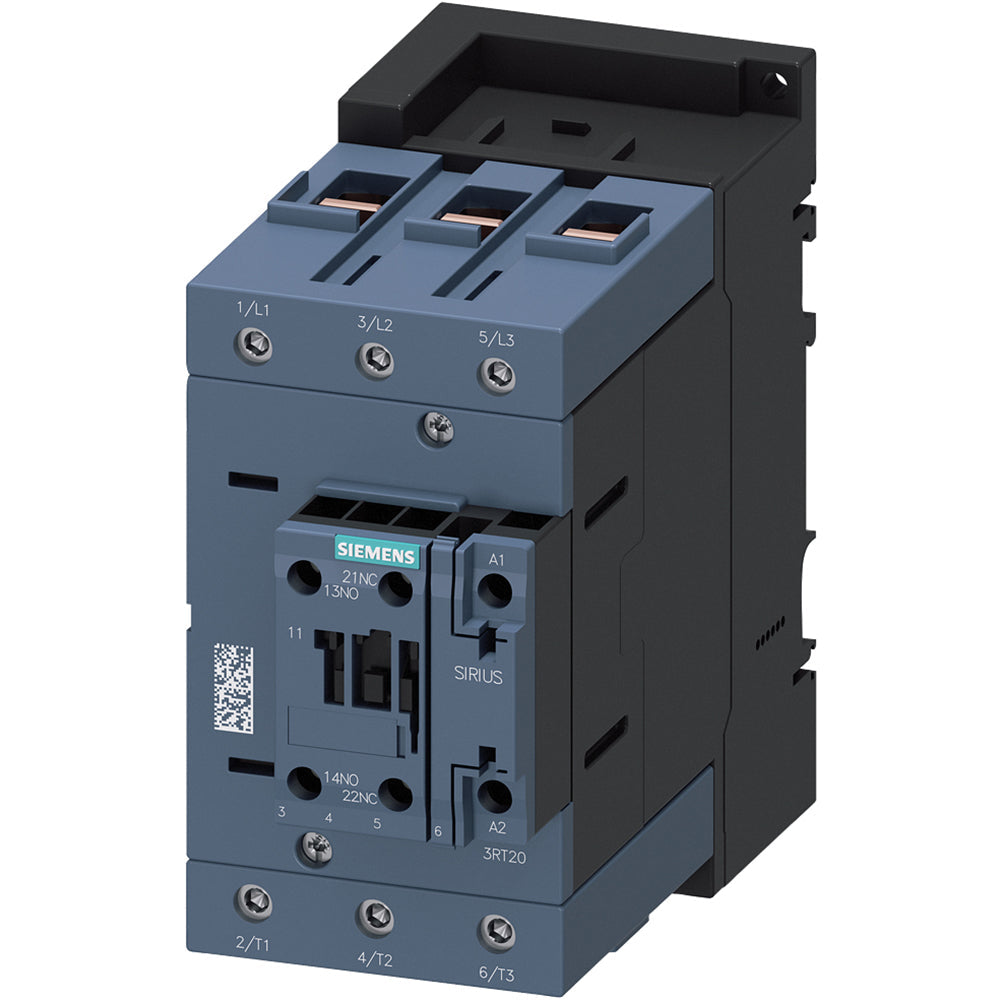

Siemens 3RT20451AP60 is a contactor designed for motor control and switching applications in industrial automation systems. This device operates with a coil voltage of 110 VAC at 50 Hz and is rated for a current of 40 A, supporting a power rating of 18.5 kW at 400 VAC. The contactor measures 6.378 x 3.268 x 6.693 inches and weighs 3.75 lb, featuring a compact, robust construction with screw-type terminals for secure wiring. It complies with REACH Art 33 and WEEE (2012/19/EU) standards, ensuring environmental and safety regulations are met. Typical applications include controlling three-phase motors in conveyor systems, pumps, and compressors within manufacturing and process industries.

Key Features & Specifications
  • Type: 3-pole contactor, air-break, electromechanical
  • Voltage Rating: 690 VAC
  • Current Rating: 40 A
  • Dimensions: 6.378 x 3.268 x 6.693 inch
  • Standards: REACH Art 33, WEEE (2012/19/EU)
  • Applications: Motor control, industrial automation
  • Switch Type: Contactor
  • Configuration: 3-pole, normally open
  • Coil Voltage Maximum: 110 VAC
  • Temp Rating: -25 to 60 °C
  • Shipping Dimensions: 6.378 x 3.268 x 6.693 inch
  • Phase: 3
  • Voltage: 690 VAC
  • Amperage: 40 A
  • AIC rating: Not specified
  • Connection: Screw terminals
  • Poles: 3
  • Protection: Not specified
  • Functions: Motor switching
  • Frame Size: S2
  • Trip Type: Not applicable
  • Panel Type: Not specified
  • Breaker Type: Not applicable
  • Control Voltage Minimum: Not specified
  • Control Voltage Maximum: 110 VAC
  • MCM Size: Not applicable
  • Metal Type: Not specified
  • Panel Style: Not specified
  • Bus Type: Not applicable
  • Fuse Class: Not applicable
  • Insulation Temperature: Not specified
  • Inductance: Not specified
  • Impedance: Not specified
  • Barrels: Not applicable
  • Class Rating: Not specified
  • Diameter: Not applicable
  • Velocity: Not applicable
  • Clip Center: Not applicable
  • Clas: Not specified
  • Mounting: DIN rail or screw
  • Hz: 50 Hz
  • Coil Material: Copper
  • Horse Power: 25 hp at 460 VAC
  • Aux Contacts: 2 normally open, 2 normally closed
  • CPT: Not included
  • Full Load Amps: 40 A
  • Dist Voltage: Not specified
  • Bucket Size: Not applicable
  • Bucket Style: Not applicable
  • Bucket Type: Not applicable
  • Full Load Amp Maximum: 40 A
  • Full Load Amp Minimum: Not specified
  • Enclosure: Open type
  • Relay Style: Not applicable
  • Coil Voltage Minimum: Not specified
  • Wire: Not specified
  • Amperage Maximum: 40 A
  • Amperage Minimum: Not specified
  • Nema Rating: Not specified
  • Switch Style: Not applicable
  • Wire Size: 14-4 AWG
  • Certification: REACH Art 33, WEEE (2012/19/EU)
  • Circuit Breaker Mounting Style: Not applicable
  • Terminal Connection: Screw
  • Frequency Rating: 50 Hz
  • Phase Connection: 3-phase
  • Standards: REACH Art 33, WEEE (2012/19/EU)
  • Compatible Frames: S2
  • Installation Type: Fixed
  • Item QTY: 1
  • Nema Starter Size: Not specified
  • Breaker Frame: Not applicable
  • Current Rating: 40 A
  • Reverse Standoff Voltage: Not applicable
  • Watts: Not specified
  • Peak Pulse Current: Not applicable
  • Breakdown Voltage (MIN VBR@IT ) (V): Not applicable
  • Breakdown Voltage (VBR@IT) (V): Not applicable
  • Polarity: Not applicable
  • Operating Temperature Maximum Celsius: 60 °C
  • Max Clamp Voltage: Not applicable
  • On-State Current: Not applicable


Product Identification
  • UPC: 804766405815
  • GTIN: 00804766405815
