Siemens 3RT20361AK600UA0 - 3-Pole Contactor 25 HP 460/575V
Siemens 3RT20361AK600UA0 - 3-Pole Contactor 25 HP 460/575V

Siemens 3RT20361AK600UA0 - 3-Pole Contactor 25 HP 460/575V

Siemens
Price
Save $141.88
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

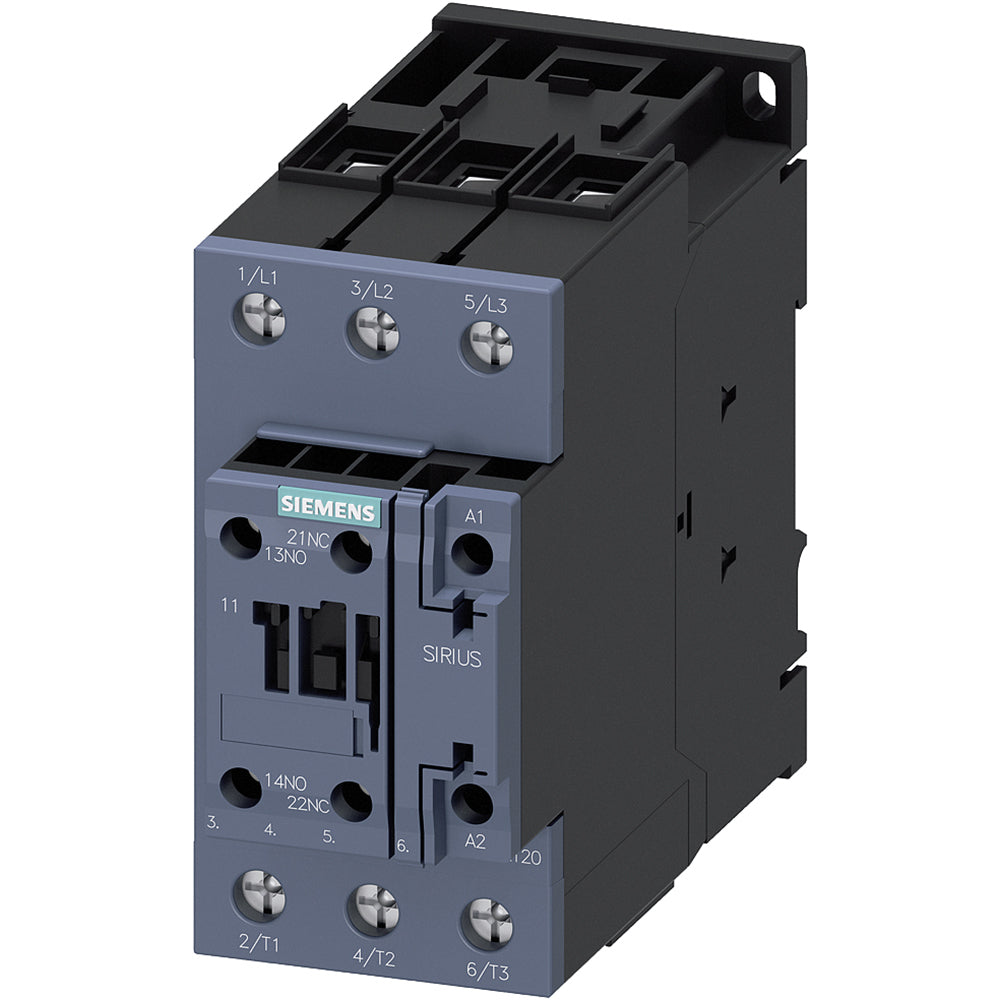

Siemens 3RT20361AK600UA0 is a 3-pole motor contactor from the 3RT20 family designed for reliable motor control in industrial applications. This NEMA Size S2 contactor supports a motor rating of 25 HP at 460/575 V and operates with a coil voltage of 110 V AC at 50 Hz and 120 V AC at 60 Hz. The unit measures 4.843 x 2.441 x 5.748 inches, weighs 2.172 lb, and features screw terminal connections with 1 normally open and 1 normally closed auxiliary contact. It is built to IP00/IP20 enclosure standards and operates within a temperature range of -25 to 60 °C. Typical applications include motor starting and switching in manufacturing, processing, and automation systems.

Key Features & Specifications
  • Type: Contactors
  • Family: 3RT20
  • Country of Origin: Germany
  • Dimensions: 4.843 x 2.441 x 5.748 inch
  • Weight: 2.172 lb
  • Motor HP Rating: 25 HP at 460/575 V
  • Poles: 3
  • Coil Voltage: 110 V AC (50 Hz) / 120 V AC (60 Hz)
  • Auxiliary Contacts: 1 NO + 1 NC
  • Mounting Type: DIN Rail / Threaded
  • Terminal Type: Screw Terminal
  • NEMA Size: S2
  • Enclosure Type: IP00 / IP20
  • Operating Temperature Range: -25 to 60 °C
  • Operating Cycles: 10,000,000


Product Identification
  • UPC: 887621916350
