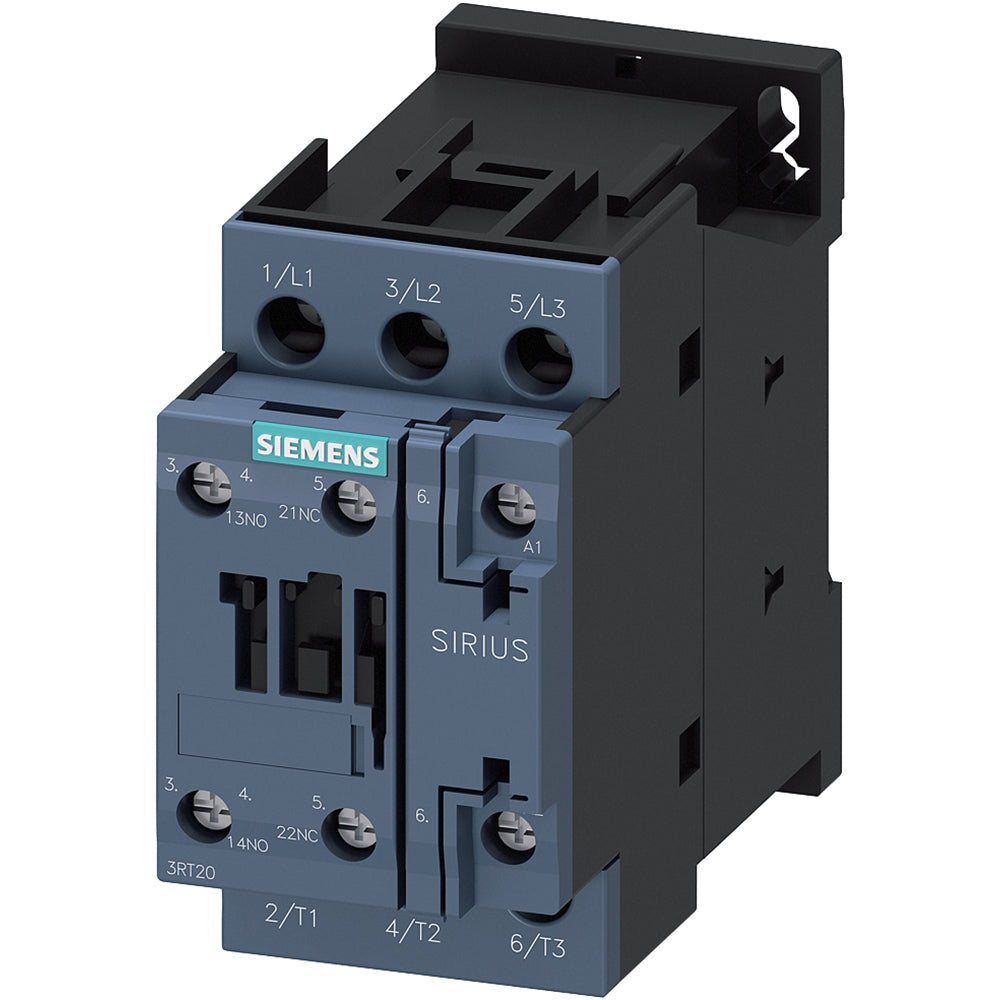

Siemens 3RT20251AG20 - Contactor 24V AC/DC 12A 690V
Siemens 3RT20251AG20 - Contactor 24V AC/DC 12A 690V

Siemens 3RT20251AG20 - Contactor 24V AC/DC 12A 690V

Siemens
Price
Save $70.08
/
Condition
  • Low stock - 8 items left
  • Backordered, shipping soon
Call for Price
Siemens 3RT20251AG20 is a motor control contactor designed for switching and protecting three-phase motors in industrial automation systems. This contactor is rated for a coil voltage of 24 V AC/DC and supports a current rating of up to 12 A, with a voltage rating of 690 V AC for main circuits. The device measures 3.622 x 2.126 x 4.154 inches and weighs 0.895 lb, featuring a compact, modular construction with screw-type terminals for reliable connections. It complies with REACH Art 33 and WEEE (2012/19/EU) standards, ensuring environmental and safety regulations are met. Typical applications include motor starting, switching, and control in conveyor systems, pumps, and HVAC equipment within industrial environments.

Key Features & Specifications
  • Type: 3-pole contactor, screw terminals, air-break operation
  • Voltage Rating: 690 V AC (main circuit)
  • Current Rating: 12 A (AC-3)
  • Dimensions: 3.622 x 2.126 x 4.154 inch
  • Standards: REACH Art 33, WEEE (2012/19/EU)
  • Applications: Motor control, conveyor systems, pumps, HVAC
  • Switch Type: Contactor
  • Configuration: 3-pole, normally open
  • Coil Voltage Maximum: 24 V AC/DC
  • Temp Rating: -25 to 60 °C
  • Shipping Dimensions: 3.622 x 2.126 x 4.154 inch
  • Phase: 3
  • Voltage: 690 V AC
  • Amperage: 12 A
  • Connection: Screw terminals
  • Poles: 3
  • Protection: Overload relay compatible
  • Functions: Motor switching and control
  • Frame Size: S0
  • Mounting: DIN rail or screw
  • Hz: 50/60 Hz
  • Coil Material: Copper
  • Horse Power: 5.5 kW at 400 V AC
  • Aux Contacts: 1 NO + 1 NC
  • Enclosure: Open type
  • Wire Size: 1.5 to 6 mm²
  • Certification: REACH Art 33, WEEE (2012/19/EU)
  • Installation Type: Fixed
  • Item QTY: 1
  • Nema Starter Size: 0
  • Current Rating: 12 A
  • Operating Temperature Maximum Celsius: 60 °C


Product Identification
  • UPC: 662643915525
