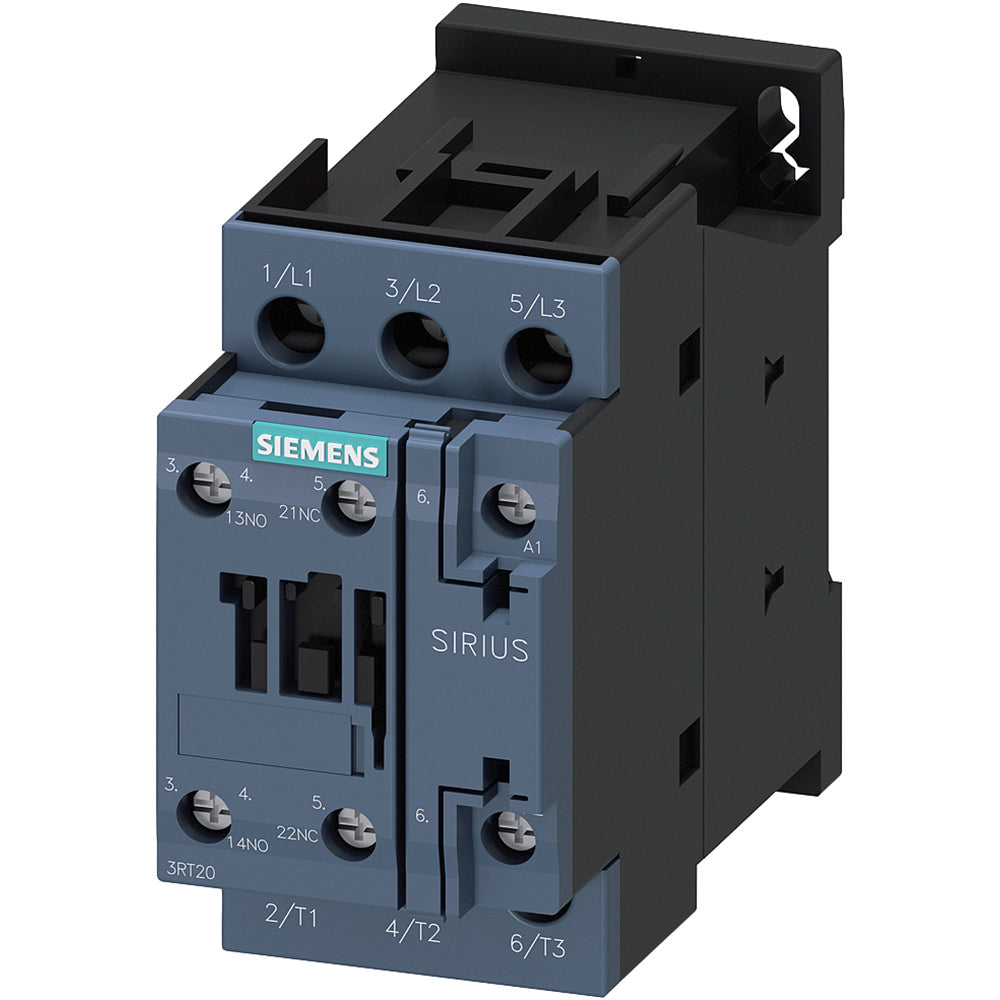

Siemens 3RT20231AV60 - Contactor 24V AC/DC 9A 3-Pole
Siemens 3RT20231AV60 - Contactor 24V AC/DC 9A 3-Pole

Siemens 3RT20231AV60 - Contactor 24V AC/DC 9A 3-Pole

Siemens
Price
Save $39.94
/
Condition
  • Low stock - 10 items left
  • Backordered, shipping soon
Call for Price
Siemens 3RT20231AV60 is a compact contactor designed for switching motor loads and other inductive loads in industrial control systems. It operates with a control voltage of 24 V AC/DC and is rated for a current of up to 9 A, supporting a power rating of up to 4 kW at 400 V AC. The unit measures 3.622 x 2.126 x 4.154 inches and weighs 0.871 lb, featuring a screw-type terminal connection for secure wiring. This contactor complies with IEC/EN 60947-4-1 standards and is suitable for applications such as conveyor systems, pumps, and fans in automation environments.

Key Features & Specifications
  • Type: 3-pole contactor, screw connection
  • Voltage Rating: 24 V AC/DC (control voltage)
  • Current Rating: 9 A (AC-3)
  • Dimensions: 3.622 x 2.126 x 4.154 inch
  • Standards: IEC/EN 60947-4-1
  • Applications: Motor control, conveyor systems, pumps, fans
  • Switch Type: Contactor
  • Configuration: 3-pole
  • Coil Voltage Maximum: 24 V AC/DC
  • Temp Rating: -25 to 60 °C
  • Shipping Dimensions: 3.622 x 2.126 x 4.154 inch
  • Phase: 3-phase
  • Voltage: 400 V AC (rated operational)
  • Amperage: 9 A
  • AIC rating: Not specified
  • Connection: Screw terminal
  • Poles: 3
  • Protection: Not specified
  • Functions: Motor switching
  • Frame Size: S00
  • Trip Type: Not applicable
  • Panel Type: Not specified
  • Breaker Type: Not applicable
  • Control Voltage Minimum: 24 V AC/DC
  • Control Voltage Maximum: 24 V AC/DC
  • MCM Size: Not applicable
  • Metal Type: Not specified
  • Panel Style: Not specified
  • Bus Type: Not applicable
  • Fuse Class: Not applicable
  • Insulation Temperature: Not specified
  • Inductance: Not specified
  • Impedance: Not specified
  • Barrels: Not applicable
  • Class Rating: Not applicable
  • Diameter: Not applicable
  • Velocity: Not applicable
  • Clip Center: Not applicable
  • Clas: Not specified
  • Mounting: DIN rail or screw mounting
  • Hz: 50/60 Hz
  • Coil Material: Not specified
  • Horse Power: 4 kW at 400 V AC
  • Aux Contacts: 1 NO + 1 NC (optional)
  • CPT: Not applicable
  • Full Load Amps: 9 A
  • Dist Voltage: Not specified
  • Bucket Size: Not applicable
  • Bucket Style: Not applicable
  • Bucket Type: Not applicable
  • Full Load Amp Maximum: 9 A
  • Full Load Amp Minimum: Not specified
  • Enclosure: Open type
  • Relay Style: Not applicable
  • Coil Voltage Minimum: 24 V AC/DC
  • Wire: Not specified
  • Amperage Maximum: 9 A
  • Amperage Minimum: Not specified
  • Nema Rating: Not specified
  • Switch Style: Not applicable
  • Wire Size: 1.5 mm² to 2.5 mm²
  • Certification: CE, UL, CSA
  • Circuit Breaker Mounting Style: Not applicable
  • Terminal Connection: Screw
  • Frequency Rating: 50/60 Hz
  • Phase Connection: 3-phase
  • Standards: IEC/EN 60947-4-1
  • Compatible Frames: S00
  • Installation Type: Fixed
  • Item QTY: 1
  • Nema Starter Size: Not applicable
  • Breaker Frame: Not applicable
  • Current Rating: 9 A
  • Reverse Standoff Voltage: Not applicable
  • Watts: Not specified
  • Peak Pulse Current: Not applicable
  • Breakdown Voltage (MIN VBR@IT ) (V): Not applicable
  • Breakdown Voltage (VBR@IT) (V): Not applicable
  • Polarity: Not applicable
  • Operating Temperature Maximum Celsius: 60 °C
  • Max Clamp Voltage: Not applicable
  • On-State Current: Not applicable


Product Identification
  • UPC: 040892920697
  • GTIN: 00040892920697
