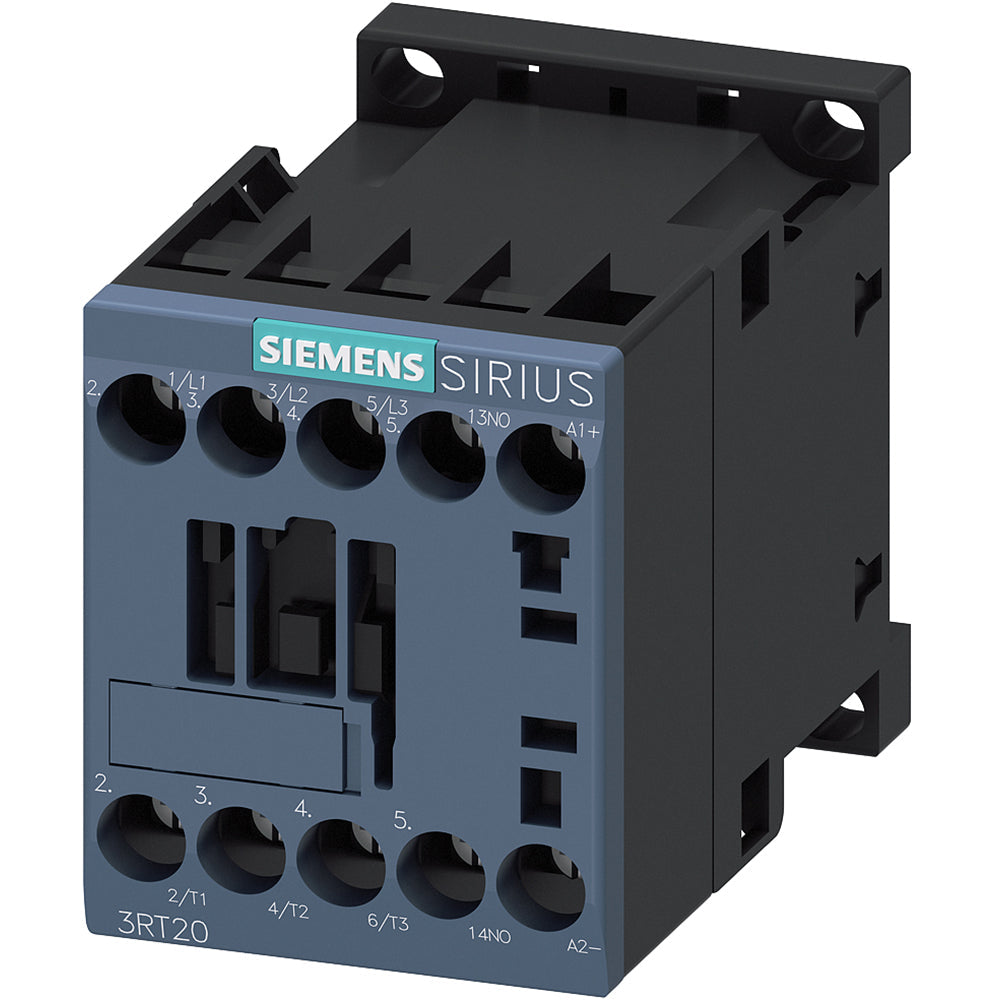

Siemens 3RT20181FB41 is a three-pole power contactor from the SIRIUS S00 series, engineered for motor control and switching applications. It operates with a 24 VDC coil and a 16 A current rating, capable of switching up to 7.5 kW at 400 V with an interrupt rating of 300 A for 1 second and 169 A for 5 seconds. The contactor features a compact frame measuring 2.421 x 1.969 x 3.051 inches, weighs 0.65 lb, and utilizes screw terminal connections with a 1 NO auxiliary contact for flexible control circuit integration, supporting DIN rail or vertical mounting. It complies with REACH Art 33, WEEE (2012/19/EU), and holds IEC and UL certifications, ensuring adherence to international safety and environmental standards. This contactor is suited for industrial environments requiring reliable motor switching and high electrical endurance, with an operating temperature range of -25°C to 60°C.

Key Features & Specifications
  • Type: Power Contactor
  • Manufacturer: Siemens
  • Series/Frame: SIRIUS S00
  • Amperage: 16 A
  • Coil Voltage: 24 VDC
  • Poles: 3
  • Mounting Type: DIN Rail/Vertical
  • Terminal Type: Screw
  • Contact Configuration: 1NO Auxiliary
  • Operating Temperature: -25°C to 60°C
  • Interrupt Rating: 300 A (1 s), 169 A (5 s)
  • Certifications: IEC, UL, REACH Art 33, WEEE (2012/19/EU)
  • Dimensions: 2.421 x 1.969 x 3.051 inch
  • Weight: 0.65 lb
  • Country of Origin: Germany
