Siemens 3RT20172BB41 - Contactor 12A 24VDC Coil (S00 Frame)
Siemens 3RT20172BB41 - Contactor 12A 24VDC Coil (S00 Frame)

Siemens 3RT20172BB41 - Contactor 12A 24VDC Coil (S00 Frame)

Siemens
Price
Save $96.39
/
Condition
  • Low stock - 2 items left
  • Backordered, shipping soon
Call for Price

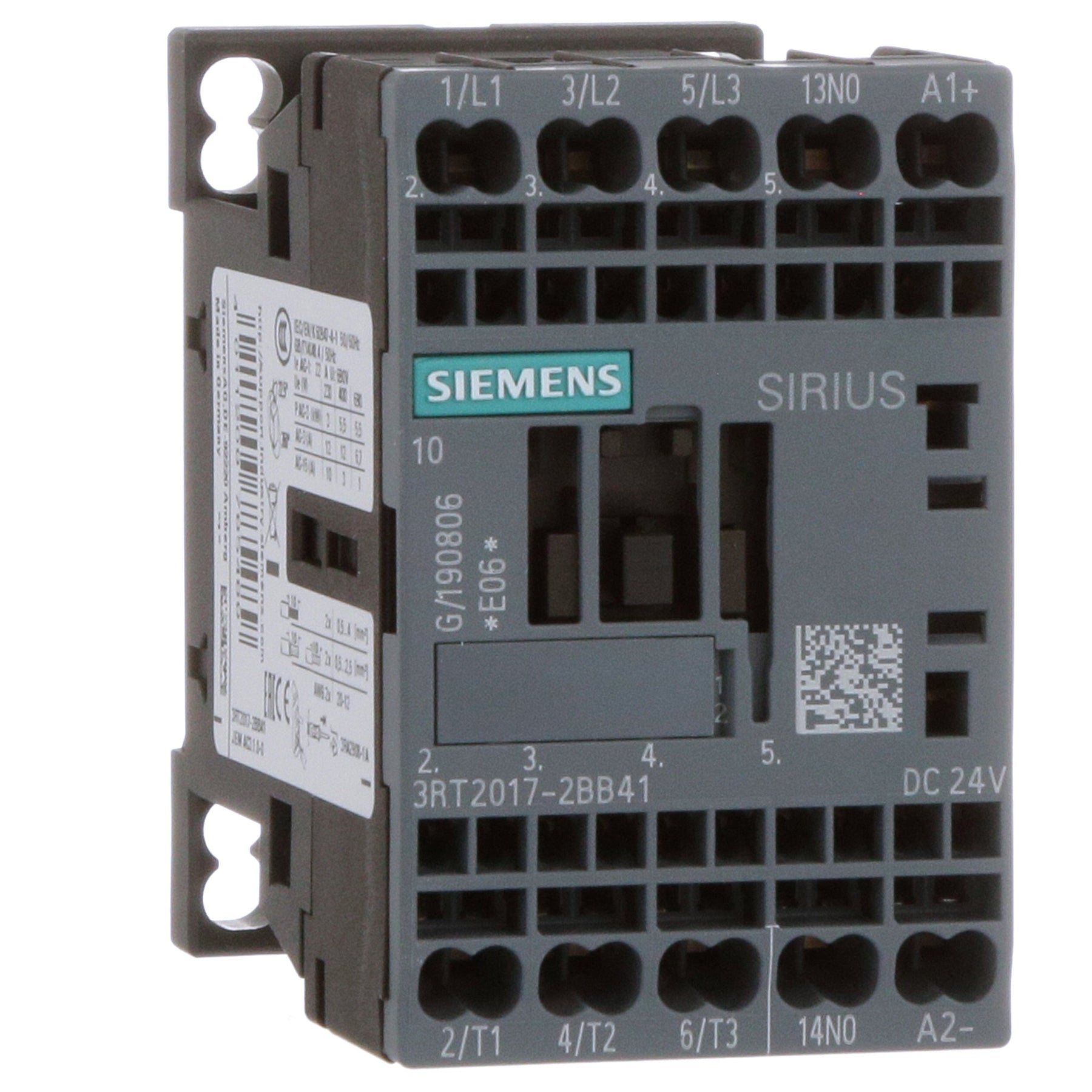

Siemens 3RT20172BB41 is a SIRIUS power contactor designed for motor control applications, providing reliable switching and protection for industrial equipment. This 3-pole contactor operates with a 24 V DC coil and supports a 12 A rated current, with AC-3 duty capable of handling up to 5.5 kW at 400 V AC. The device features a compact S00 frame size measuring 2.894 x 1.969 x 3.051 inches and weighing 0.679 lb, with spring-loaded terminals and one normally open auxiliary contact for secure connections. It complies with REACH Art 33 and WEEE (2012/19/EU) standards, and is certified under UL, CSA, CE, CCC, and EAC for global use. This contactor is suitable for vertical mounting in motor control centers and industrial automation systems, offering surge voltage resistance up to 6 kV.

Key Features & Specifications
  • Manufacturer: Siemens
  • Item Subcategory: Contactors
  • Country of Origin: Germany
  • Dimensions: 2.894 x 1.969 x 3.051 inch
  • Weight: 0.679 lb
  • Certification: REACH Art 33, WEEE (2012/19/EU)
  • Amperage: 12 A
  • Voltage: 24 V DC coil, 400 V AC main circuit
  • Poles: 3
  • Mounting Type: Vertical
  • Interrupt Rating: AC-3, 5.5 kW at 400 V
  • Frame Size: S00
  • Auxiliary Contacts: 1 NO (Normally Open)
  • Coil Power: 4 W
  • Surge Voltage Resistance: 6 kV
  • Certifications: UL, CSA, CE, CCC, EAC


Product Identification
  • UPC: 066264391157
  • GTIN: 00662643911572
