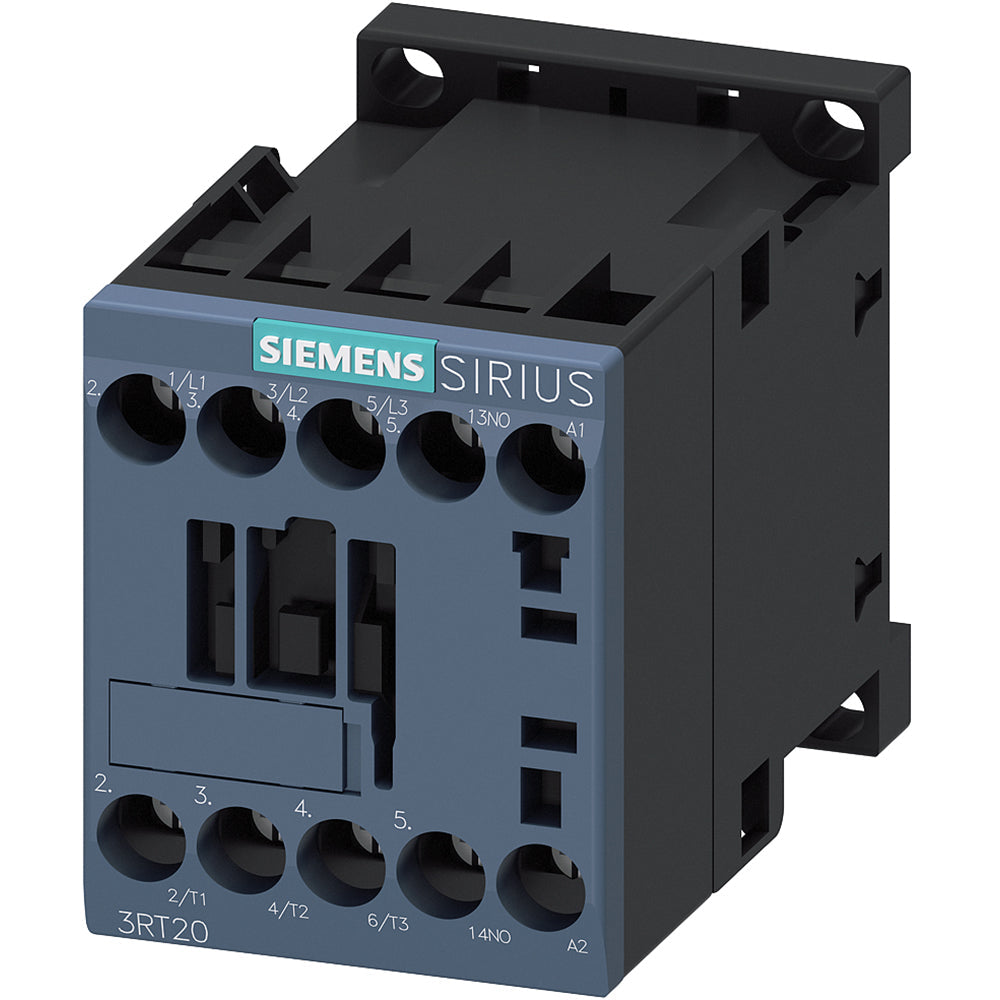

Siemens 3RT20171AV01 - Contactor 24V AC/DC 7A 3-Pole
Siemens 3RT20171AV01 - Contactor 24V AC/DC 7A 3-Pole

Siemens 3RT20171AV01 - Contactor 24V AC/DC 7A 3-Pole

Siemens
Price
Save $124.09
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens 3RT20171AV01 is a compact contactor designed for motor control and switching applications in industrial automation systems. This device operates with a coil voltage of 24 V AC/DC and is rated for a current of 7 A, supporting a power rating of up to 3 kW at 400 V AC for standard three-phase motors. Constructed with a robust thermoplastic housing, it measures 2.421 x 1.969 x 3.051 inches and weighs 0.514 lb, featuring screw-type terminals for secure wiring connections. The contactor complies with IEC 60947-4-1 and UL 508 standards, ensuring reliable performance in demanding environments. Typical applications include conveyor systems, pumps, fans, and other machinery requiring frequent on/off control in industrial settings.

Key Features & Specifications
  • Type: Contactor, 3-pole, screw terminal connection
  • Voltage Rating: 24 V AC/DC (coil)
  • Current Rating: 7 A (AC-3 utilization category)
  • Dimensions: 2.421 x 1.969 x 3.051 inch
  • Standards: IEC 60947-4-1, UL 508
  • Applications: Motor control, conveyor systems, pumps, fans
  • Switch Type: Electromagnetic contactor
  • Configuration: 3-pole, normally open main contacts
  • Coil Voltage Maximum: 24 V AC/DC
  • Temp Rating: -25°C to +60°C
  • Shipping Dimensions: 2.421 x 1.969 x 3.051 inch
  • Phase: 3-phase
  • Voltage: 400 V AC (main circuit)
  • Amperage: 7 A
  • AIC rating: Not specified
  • Connection: Screw terminals
  • Poles: 3
  • Protection: Overload relay compatible
  • Functions: Motor starting, switching
  • Frame Size: S00
  • Trip Type: Not applicable
  • Panel Type: Not applicable
  • Breaker Type: Not applicable
  • Control Voltage Minimum: 24 V AC/DC
  • Control Voltage Maximum: 24 V AC/DC
  • MCM Size: Not applicable
  • Metal Type: Not applicable
  • Panel Style: Not applicable
  • Bus Type: Not applicable
  • Fuse Class: Not applicable
  • Insulation Temperature: Not specified
  • Inductance: Not specified
  • Impedance: Not specified
  • Barrels: Not applicable
  • Class Rating: Not applicable
  • Diameter: Not applicable
  • Velocity: Not applicable
  • Clip Center: Not applicable
  • Clas: Not applicable
  • Mounting: DIN rail or screw mounting
  • Hz: 50/60 Hz
  • Coil Material: Copper
  • Horse Power: 3 kW at 400 V AC
  • Aux Contacts: 1 normally open + 1 normally closed
  • CPT: Not applicable
  • Full Load Amps: 7 A
  • Dist Voltage: Not specified
  • Bucket Size: Not applicable
  • Bucket Style: Not applicable
  • Bucket Type: Not applicable
  • Full Load Amp Maximum: 7 A
  • Full Load Amp Minimum: Not specified
  • Enclosure: Open type
  • Relay Style: Not applicable
  • Coil Voltage Minimum: 24 V AC/DC
  • Wire: Solid or stranded copper
  • Amperage Maximum: 7 A
  • Amperage Minimum: Not specified
  • Nema Rating: Not specified
  • Switch Style: Not applicable
  • Wire Size: 14-22 AWG
  • Certification: CE, UL, CSA
  • Circuit Breaker Mounting Style: Not applicable
  • Terminal Connection: Screw
  • Frequency Rating: 50/60 Hz
  • Phase Connection: 3-phase
  • Standards: IEC 60947-4-1, UL 508
  • Compatible Frames: S00
  • Installation Type: Fixed
  • Item QTY: 1
  • Nema Starter Size: Not applicable
  • Breaker Frame: Not applicable
  • Current Rating: 7 A
  • Reverse Standoff Voltage: Not applicable
  • Watts: Not specified
  • Peak Pulse Current: Not applicable
  • Breakdown Voltage (MIN VBR@IT ) (V): Not applicable
  • Breakdown Voltage (VBR@IT) (V): Not applicable
  • Polarity: Not applicable
  • Operating Temperature Maximum Celsius: 60°C
  • Max Clamp Voltage: Not applicable
  • On-State Current: Not applicable
