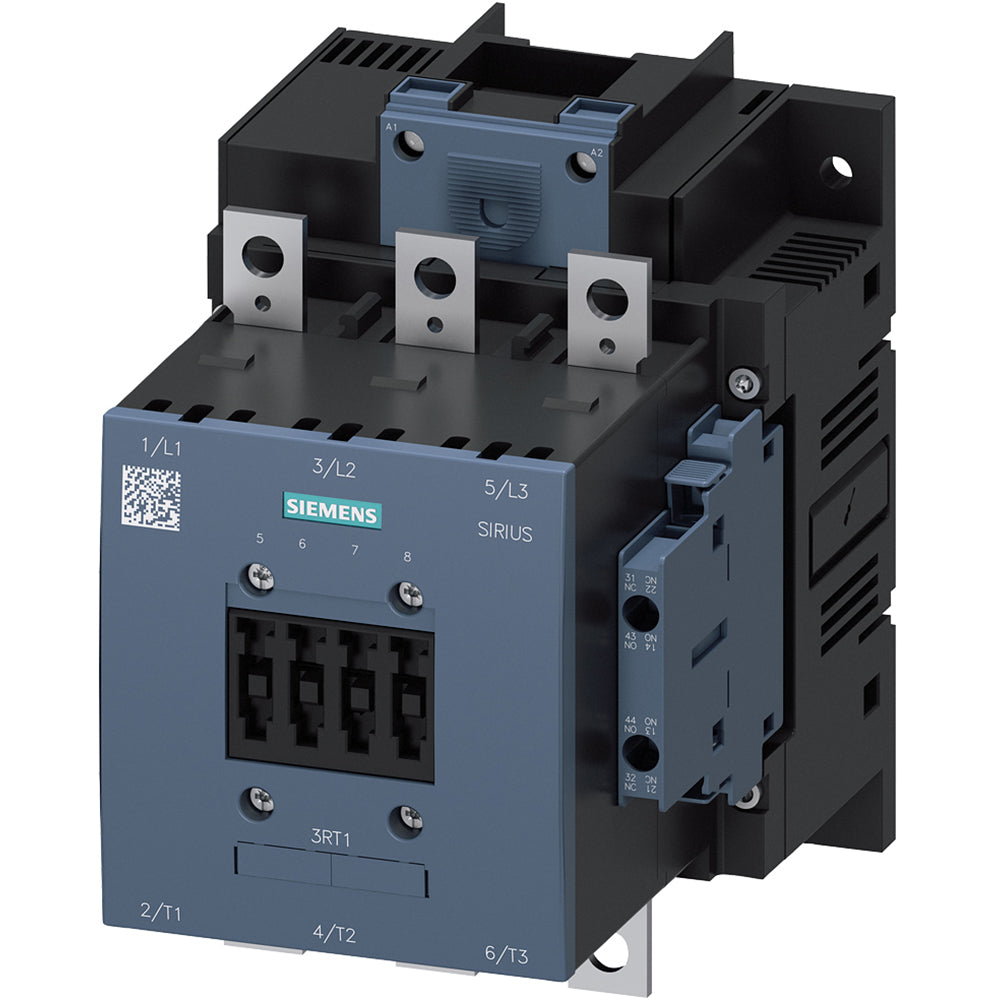

Siemens 3RT10566AF360UA0 - Contactor 300A 600V 3-Pole
Siemens 3RT10566AF360UA0 - Contactor 300A 600V 3-Pole

Siemens 3RT10566AF360UA0 - Contactor 300A 600V 3-Pole

Siemens
Price
Save $1,680.14
/
Condition
  • Low stock - 2 items left
  • Backordered, shipping soon
Call for Price
Siemens 3RT10566AF360UA0 is a heavy-duty contactor designed for reliable motor switching and control in industrial automation systems. This device operates with a coil voltage of 110-120 VAC at 50/60 Hz and is rated for a continuous current of up to 300 A, supporting three-phase applications up to 600 VAC. Constructed with a robust 3-pole configuration and a compact frame measuring 5.079 x 7.48 x 7.126 inches, it weighs 7.427 lb and features screw-type terminals for secure wiring. The contactor complies with IEC and UL standards, ensuring safe performance in demanding environments. Typical applications include motor starting, lighting control, and power distribution in manufacturing plants and process industries.

Key Features & Specifications
  • Type: Electromechanical contactor, 3-pole, air break, screw terminals
  • Voltage Rating: 600 VAC maximum
  • Current Rating: 300 A continuous
  • Dimensions: 5.079 x 7.48 x 7.126 inch
  • Standards: IEC, UL listed
  • Applications: Motor starting, lighting control, power distribution
  • Switch Type: Contactor
  • Configuration: 3-pole normally open
  • Coil Voltage Maximum: 120 VAC
  • Temp Rating: -25 to 60 °C
  • Shipping Dimensions: 5.079 x 7.48 x 7.126 inch
  • Phase: 3-phase
  • Voltage: 600 VAC
  • Amperage: 300 A
  • AIC rating: Not specified
  • Connection: Screw terminals
  • Poles: 3
  • Protection: Overload relay compatible
  • Functions: Motor switching, control
  • Frame Size: Compact
  • Trip Type: Not applicable
  • Panel Type: Open
  • Breaker Type: Not applicable
  • Control Voltage Minimum: 110 VAC
  • Control Voltage Maximum: 120 VAC
  • MCM Size: Not specified
  • Metal Type: Steel
  • Panel Style: Not specified
  • Bus Type: Not specified
  • Fuse Class: Not specified
  • Insulation Temperature: 105 °C
  • Inductance: Not specified
  • Impedance: Not specified
  • Barrels: Not specified
  • Class Rating: Not specified
  • Diameter: Not specified
  • Velocity: Not specified
  • Clip Center: Not specified
  • Clas: Not specified
  • Mounting: Panel mount
  • Hz: 50/60 Hz
  • Coil Material: Copper
  • Horse Power: Up to 150 HP at 480 VAC
  • Aux Contacts: 2 normally open, 2 normally closed
  • CPT: Not included
  • Full Load Amps: 300 A
  • Dist Voltage: Not specified
  • Bucket Size: Not specified
  • Bucket Style: Not specified
  • Bucket Type: Not specified
  • Full Load Amp Maximum: 300 A
  • Full Load Amp Minimum: 0 A
  • Enclosure: Open
  • Relay Style: Not applicable
  • Coil Voltage Minimum: 110 VAC
  • Wire: Copper
  • Amperage Maximum: 300 A
  • Amperage Minimum: 0 A
  • Nema Rating: NEMA 1
  • Switch Style: Contactor
  • Wire Size: 14 AWG to 500 MCM
  • Certification: UL, CE, CSA
  • Circuit Breaker Mounting Style: Not applicable
  • Terminal Connection: Screw
  • Frequency Rating: 50/60 Hz
  • Phase Connection: 3-phase
  • Standards: IEC 60947, UL 508
  • Compatible Frames: Siemens 3RT series
  • Installation Type: Fixed
  • Item QTY: 1
  • Nema Starter Size: Size 5
  • Breaker Frame: Not applicable
  • Current Rating: 300 A
  • Reverse Standoff Voltage: Not applicable
  • Watts: 50 W coil
  • Peak Pulse Current: Not applicable
  • Breakdown Voltage (MIN VBR@IT ) (V): Not applicable
  • Breakdown Voltage (VBR@IT) (V): Not applicable
  • Polarity: Not applicable
  • Operating Temperature Maximum Celsius: 60 °C
  • Max Clamp Voltage: Not applicable
  • On-State Current: Not applicable


Product Identification
  • UPC: 754554848969
  • GTIN: 00754554848969
