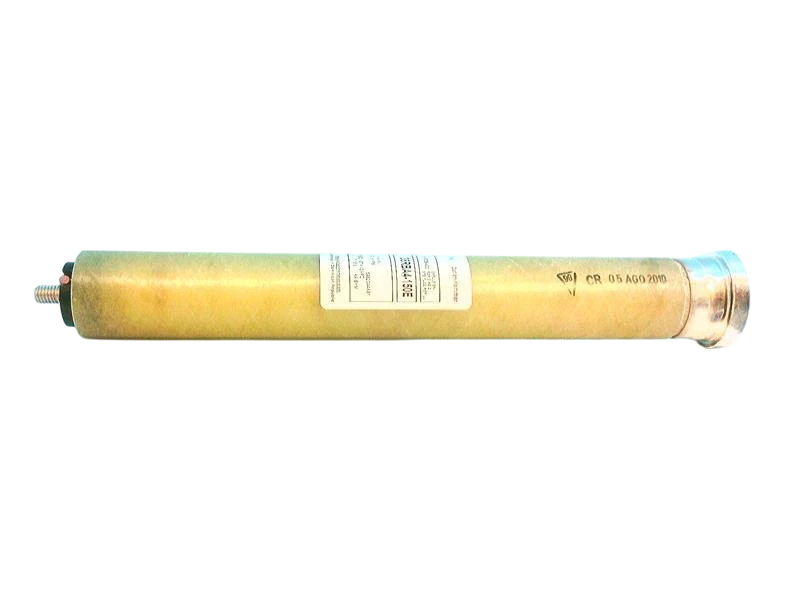

Eaton 38RBA4-20E - Medium Voltage Fuse Refill, 20A 34.5kV
Eaton 38RBA4-20E - Medium Voltage Fuse Refill, 20A 34.5kV

Eaton 38RBA4-20E - Medium Voltage Fuse Refill, 20A 34.5kV

Eaton
Price
Save $585
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Eaton 38RBA4-20E is a medium voltage current-limiting fuse refill designed for the protection of transformers, motors, and feeders in high-voltage electrical systems. It features a 20A current rating and a 34.5kV voltage rating, with a high interrupting capacity of 16.8kA to safely clear fault currents. The single-barrel, Class E fuse is constructed with a robust body measuring 35.56 mm x 55.88 mm x 345.948 mm and a weight of 1.46 lb, utilizing a standard velocity element for predictable clearing characteristics. Manufactured in compliance with IEEE Std. C37.41, this fuse is engineered for reliable performance in industrial power distribution and protection applications.

Key Features & Specifications
  • Type: RBA4, Medium Voltage Current-Limiting Fuse Refill, Standard Velocity
  • Voltage Rating: 34500V AC
  • Current Rating: 20A
  • Dimensions: 35.56 mm x 55.88 mm x 345.948 mm (Length/Depth x Height x Width)
  • Weight: 1.46 lb
  • Standards: IEEE Std. C37.41
  • Applications: Protection for transformers, motors, and feeders in industrial power systems
  • Class Rating: E
  • AIC rating: 16.8kA @ 34.5kV
  • Barrels: 1
  • Country of Origin: Dominican Republic


Product Identification
  • UPC: 78667015061
  • GTIN: 00786670150619
